105d
;SOLUTION STRUCTURES OF THE I-MOTIF TETRAMERS OF D(TCC), D(5MCCT) AND D(T5MCC). NOVEL NOE CONNECTIONS BETWEEN AMINO PROTONS AND SUGAR PROTONS ;

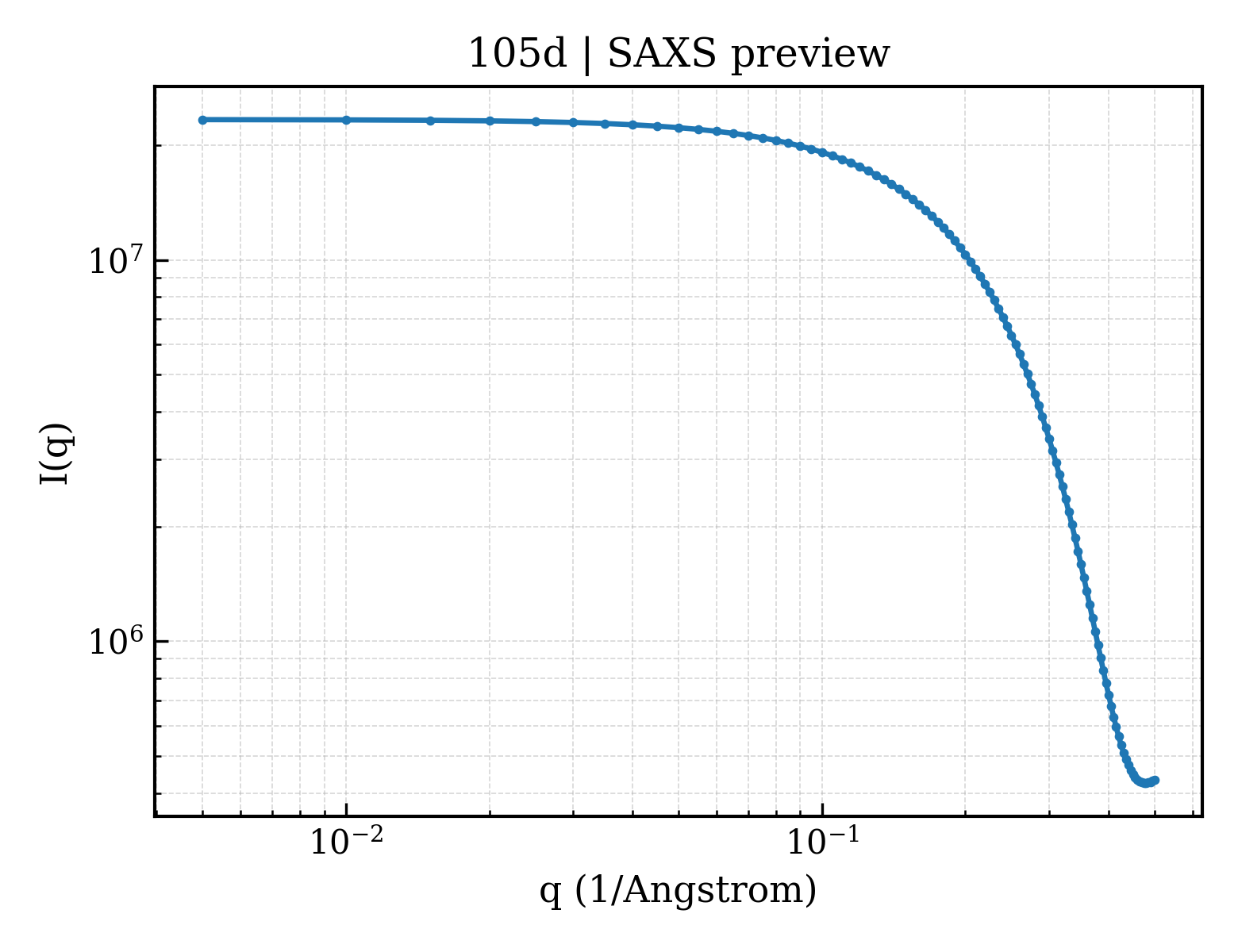

SAXS Profile

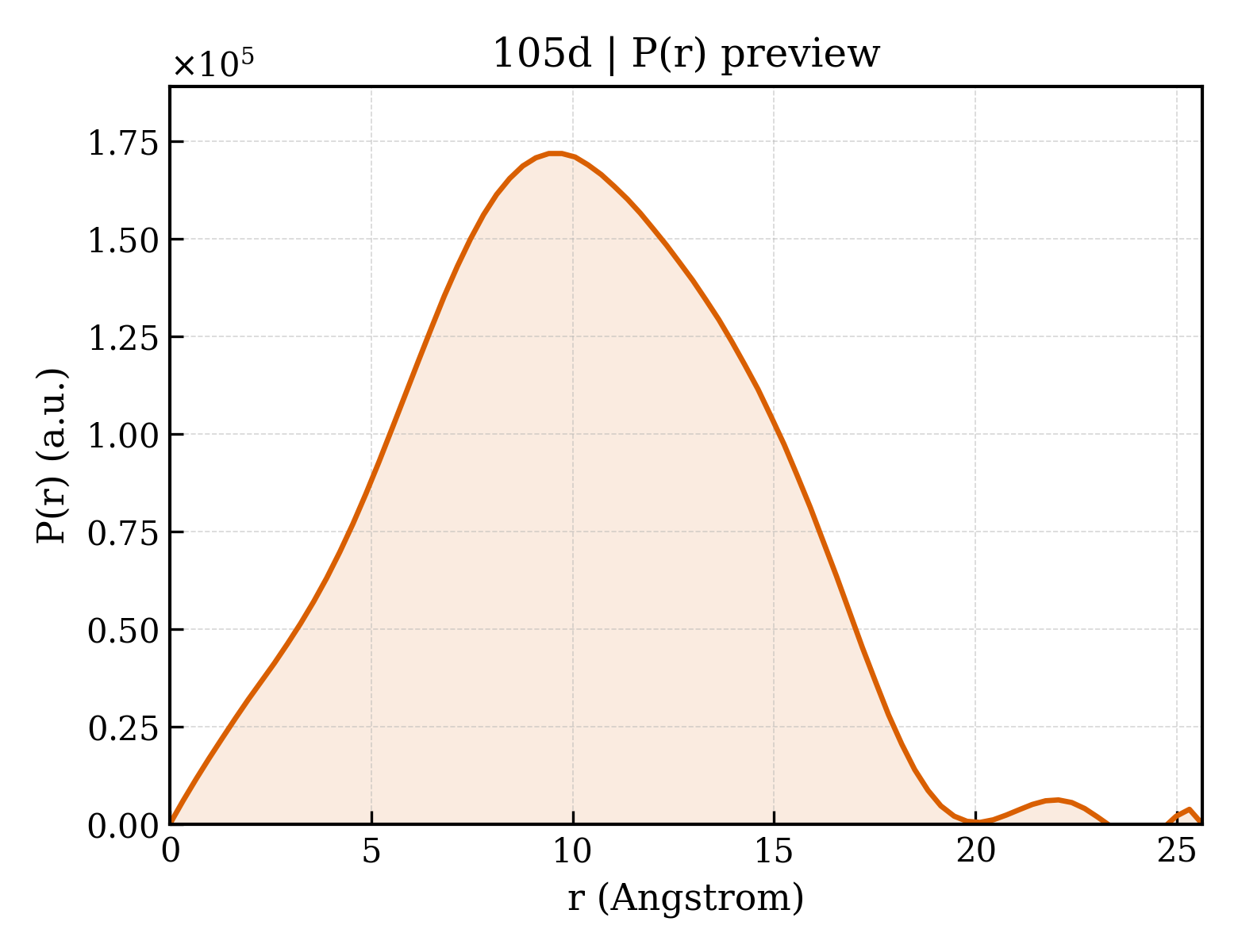

P(r) Distribution
1. Structure Basics
| entry_id | 105d |
| deposition_date | 1994-12-22 |
| title | ;SOLUTION STRUCTURES OF THE I-MOTIF TETRAMERS OF D(TCC), D(5MCCT) AND D(T5MCC). NOVEL NOE CONNECTIONS BETWEEN AMINO PROTONS AND SUGAR PROTONS ; |
| keywords | DNA; DNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 7.72 Å |
| rg_electron | 7.74 Å |
| i0 | 23334900.00 |
| molecular_weight | 26291.0 kDa |
| excluded_volume | 27155 ų |
| envelope_volume | 5170 ų |
| shell_volume | 5534 ų |
| envelope_diameter | 26.2 Å |
| shell_rg | 13.23 Å |
| envelope_rg | 8.69 Å |
| shape_rg | 7.64 Å |
| total_rg | 8.19 Å |
| total_atoms | 2912 |
| n_residues | 96 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 25.6 Å |
| rg_real | 7.66 Å |
| rg_real_error | 0.30 Å |
| i0_real | 2.3330e+07 |
| i0_real_error | 2.2930e+05 |
| rg_reciprocal | 7.66 Å |
| i0_reciprocal | 23330000.0000 |
| total_estimate | 0.7885 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.1 Å |
| skewness | 0.021 |
| kurtosis | -0.428 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 21300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.759; Stabil: 0.990; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000 |
