10tz

Tissue Non-specific Alkaline Phosphatase -S110A bound to ATP

Method: X-RAY DIFFRACTION Dmax: 176.6 Å Quality: REASONABLE

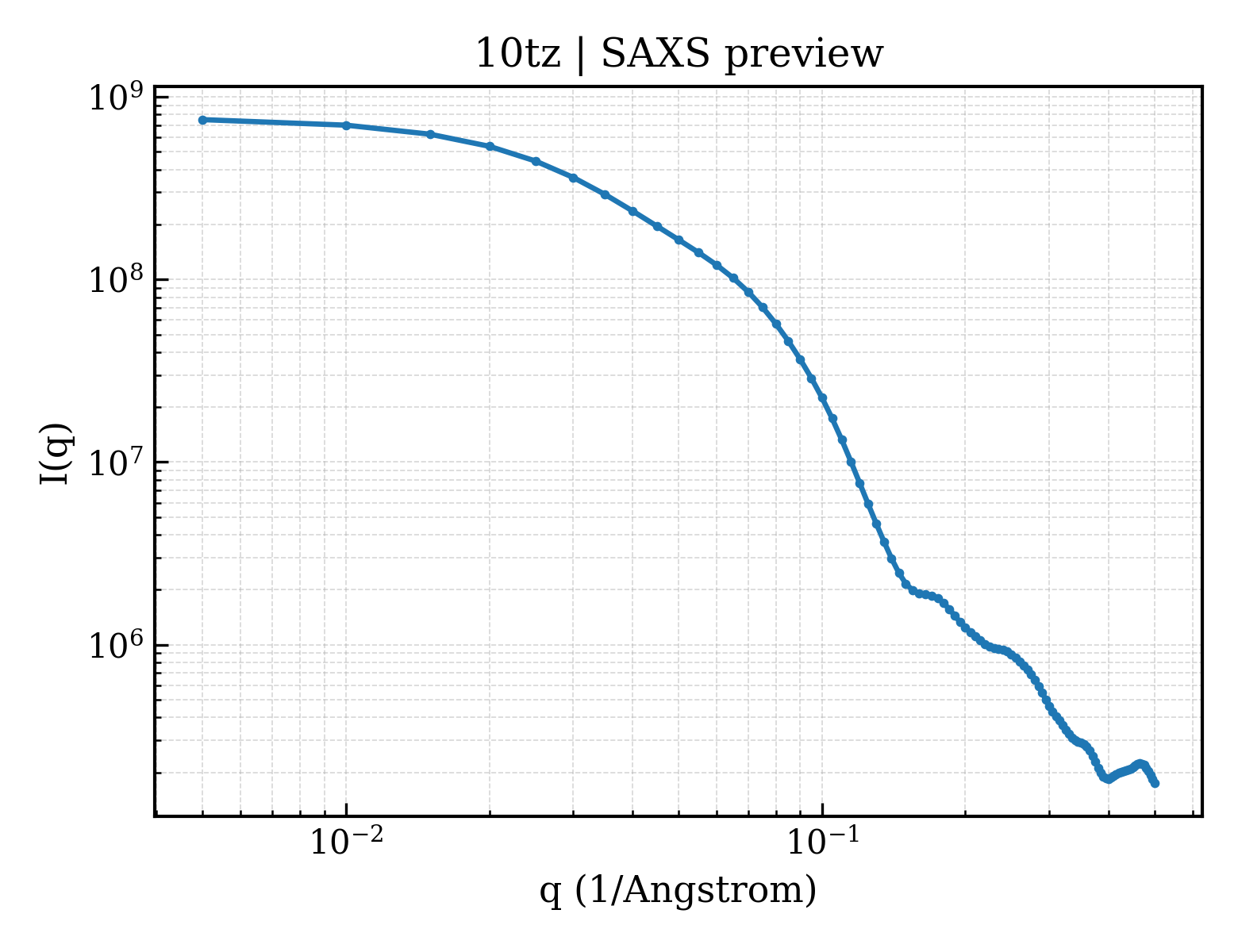

SAXS Profile

SAXS profile for 10tz

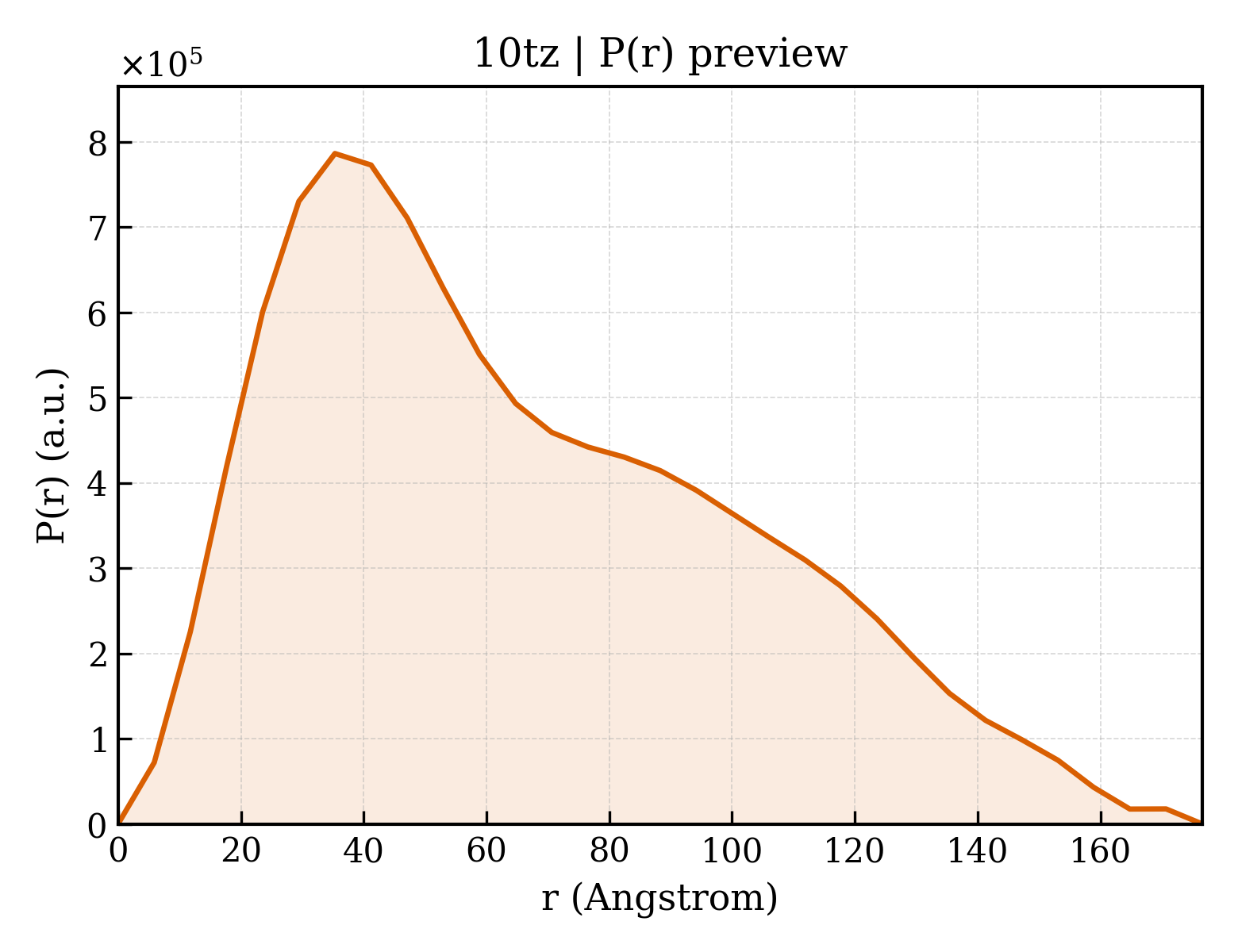

P(r) Distribution

P(r) distribution for 10tz

1. Structure Basics

entry_id10tz
deposition_date2026-02-09
titleTissue Non-specific Alkaline Phosphatase -S110A bound to ATP
keywordsTNAP, HYDROLASE; HYDROLASE
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier52.49
rg_electron53.27
i0767919000.00
molecular_weight220860.0 kDa
excluded_volume272300 ų
envelope_volume352880 ų
shell_volume58855 ų
envelope_diameter194.5
shell_rg50.00
envelope_rg53.30
shape_rg53.26
total_rg53.19
total_atoms15475
n_residues1928
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax176.6
rg_real53.12
rg_real_error2.18
i0_real7.6790e+08
i0_real_error1.5450e+07
rg_reciprocal51.95
i0_reciprocal766700000.0000
total_estimate0.7042
solution_quality REASONABLE a REASONABLE solution
n_peaks2
r_peak_primary35.3
skewness0.566
kurtosis-0.543
angular_range— – 0.1500 −1
current_alpha0.0000
highest_alpha111200000.0000
n_real_points31
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.455; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.645; Smooth: 0.142

4. Crystallography & Experiment

5. Entities & Polymer Info (13)

6. Citations (1)

7. Files & Curves (10)
