12jc
Crystal Structure of Putative L-amino Acid N-acyltransferase MnaT from Pseudomonas aeruginosa
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 12jc |
| deposition_date | 2026-04-08 |
| last_revision | 2026-04-15 |
| title | Crystal Structure of Putative L-amino Acid N-acyltransferase MnaT from Pseudomonas aeruginosa |
| keywords | ;GCN5-related N-acetyltransferase (GNAT), polyamine acetyltransferase, Structural Genomics, Center for Structural Biology of Infectious Diseases, CSBID, TRANSFERASE, VIRAL PROTEIN ;; VIRAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.17 Å |
| rg_electron | 20.06 Å |
| i0 | 22850400.00 |
| molecular_weight | 36131.0 kDa |
| excluded_volume | 45143 ų |
| envelope_volume | 53940 ų |
| shell_volume | 22356 ų |
| envelope_diameter | 74.1 Å |
| shell_rg | 26.69 Å |
| envelope_rg | 20.20 Å |
| shape_rg | 20.02 Å |
| total_rg | 21.07 Å |
| total_atoms | 2552 |
| n_residues | 314 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

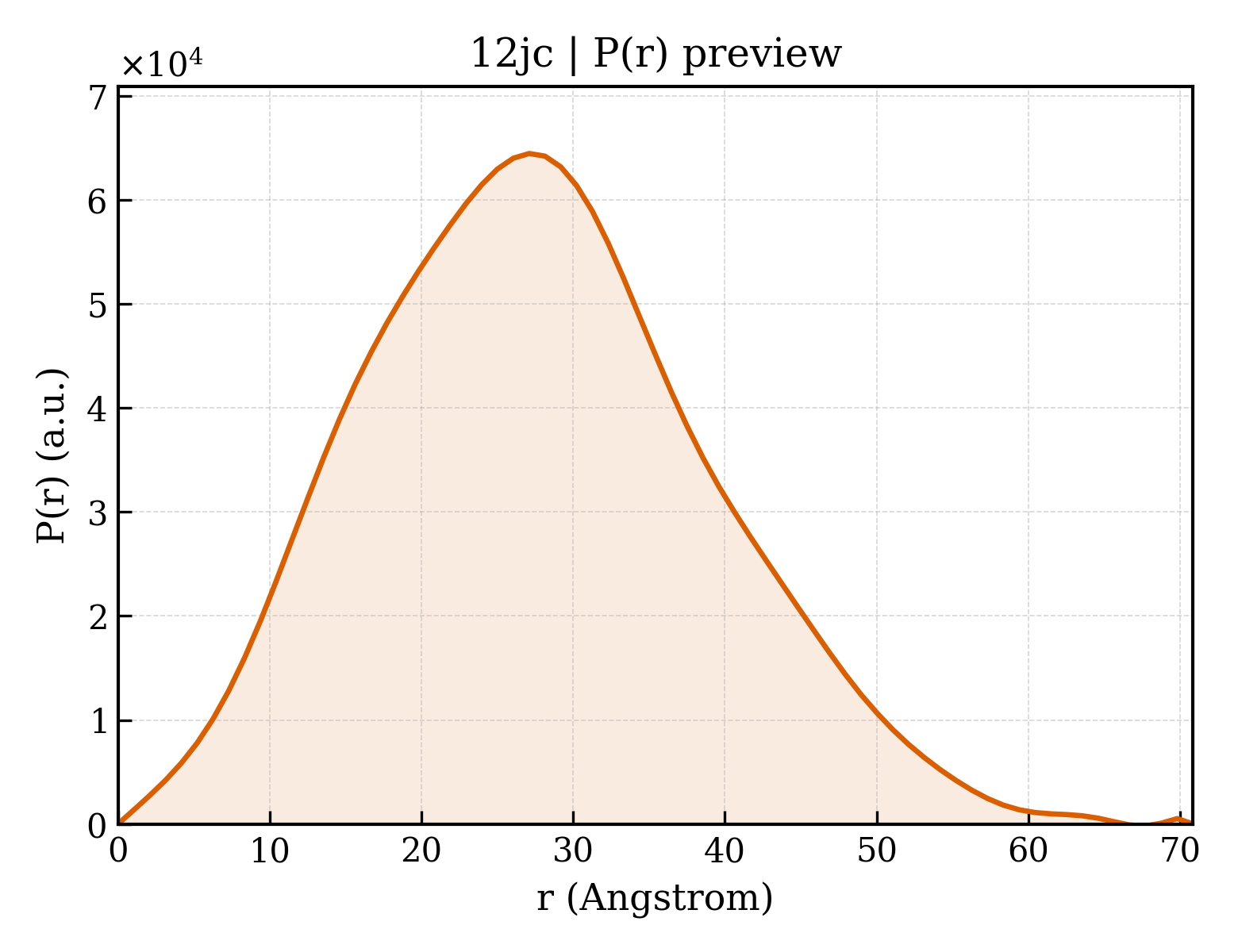

3. P(r) Analysis (GNOM)
| dmax | 70.9 Å |
| rg_real | 21.08 Å |
| rg_real_error | 0.49 Å |
| i0_real | 2.2850e+07 |
| i0_real_error | 3.1030e+05 |
| rg_reciprocal | 21.10 Å |
| i0_reciprocal | 22850000.0000 |
| total_estimate | 0.7878 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 27.1 Å |
| skewness | 0.277 |
| kurtosis | -0.222 |
| angular_range | — – 0.3750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 8961000.0000 |
| n_real_points | 69 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.746; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
