Crystal Structure of serine/threonine-protein kinase (AEK1) from Trypanosoma cruzi in complex with AMP

Method: X-RAY DIFFRACTION D_max: 84.9 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	12ob
deposition_date	2026-04-13
last_revision	2026-04-22
title	Crystal Structure of serine/threonine-protein kinase (AEK1) from Trypanosoma cruzi in complex with AMP
keywords	;SSGCID, STRUCTURAL GENOMICS, SEATTLE STRUCTURAL GENOMICS CENTER FOR INFECTIOUS DISEASE, serine/threonine-protein kinase, TRANSFERASE ;; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.21 Å
rg_electron	26.30 Å
i0	86587300.00
molecular_weight	73646.0 kDa
excluded_volume	92321 Å³
envelope_volume	113470 Å³
shell_volume	35205 Å³
envelope_diameter	89.1 Å
shell_rg	34.49 Å
envelope_rg	26.50 Å
shape_rg	26.30 Å
total_rg	27.15 Å
total_atoms	5194
n_residues	645
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

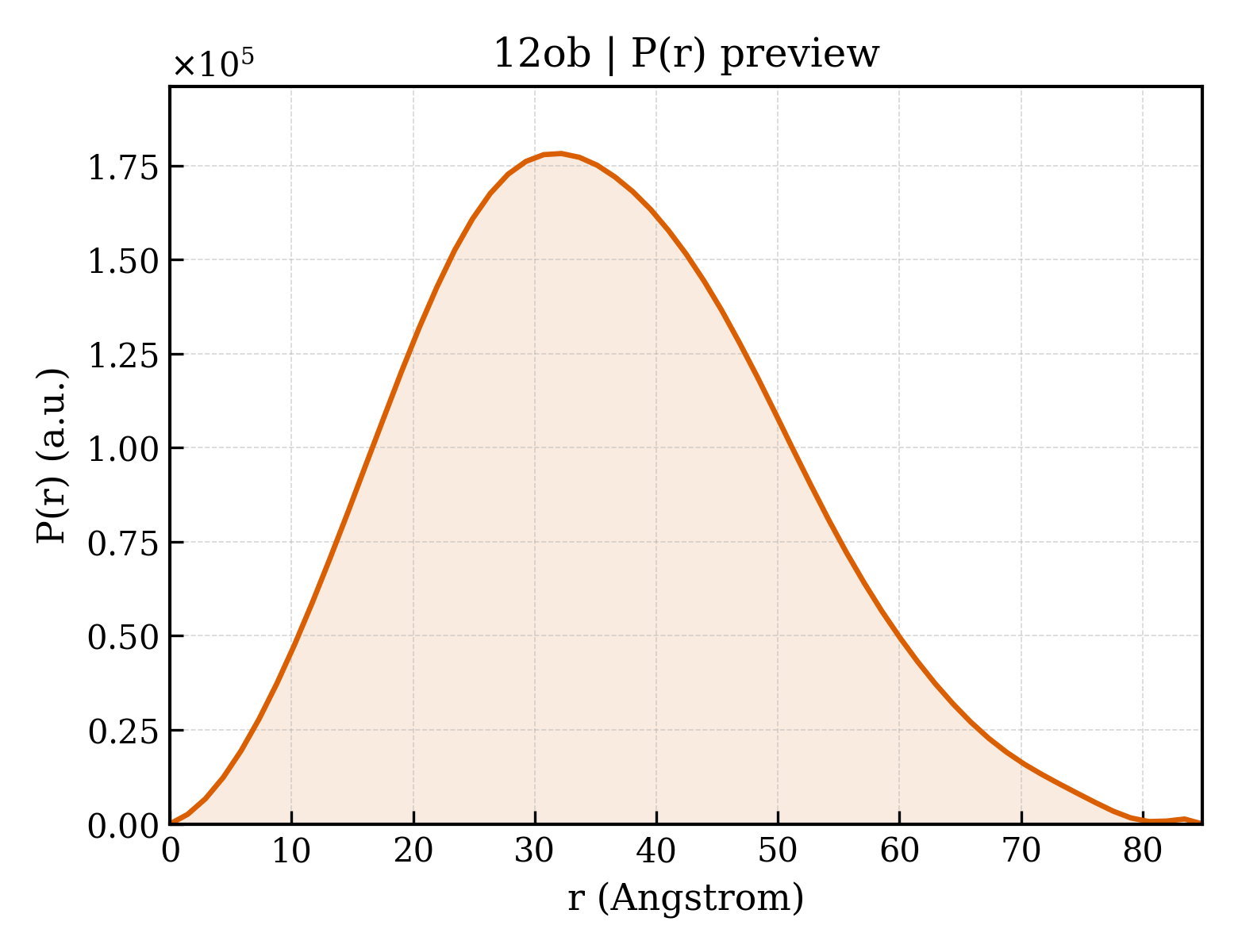

3. P(r) Analysis (GNOM)

dmax	84.9 Å
rg_real	27.11 Å
rg_real_error	0.43 Å
i0_real	8.6590e+07
i0_real_error	9.8980e+05
rg_reciprocal	27.15 Å
i0_reciprocal	86590000.0000
total_estimate	0.8965
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	32.2 Å
skewness	0.277
kurtosis	-0.357
angular_range	— – 0.2900 Å⁻¹
current_alpha	0.0000
highest_alpha	24680000.0000
n_real_points	59
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.914; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.915

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	85.187 Å
length_b	85.187 Å
length_c	192.702 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

space_group	P 31 2 1
int_tables_number	152
crystal_system	—

resolution	2.830 Å
resolution_low	48.440 Å
r_factor	0.2340
r_work	0.2314
r_free	0.2807

description	Putative rac serine-threonine kinase
formula_weight	41729.3 kDa
mutation	T185I, V227F, N314S
src_method	man
entity_count	2

type	polypeptide(L)
strand_id	A,B
atom_count	5194

Crystal Structure of serine/threonine-protein kinase (AEK1) from Trypanosoma cruzi in complex with AMP

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 non-polymer

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Trypanosoma cruzi
ncbi_taxonomy_id	5693
host_organism	Escherichia coli BL21(DE3)

description	ADENOSINE MONOPHOSPHATE
formula_weight	347.2 kDa
src_method	syn
entity_count	2
