180d
SEQUENCE-DEPENDENT MICROHETEROGENEITY OF Z-DNA: THE CRYSTAL AND MOLECULAR STRUCTURES OF D(CACGCG).D(CGCGTG) AND D(CGCACG).D(CGTGCG)

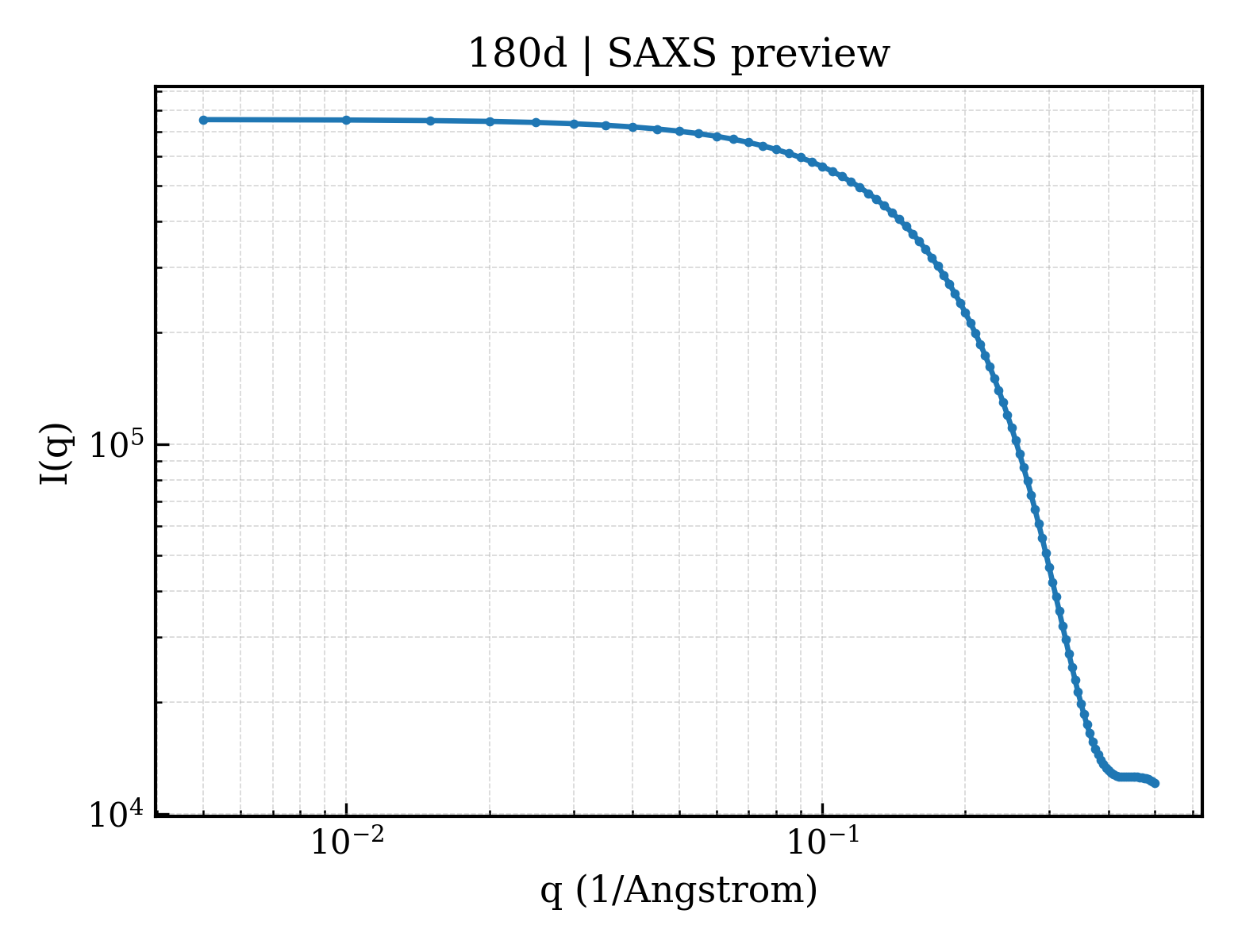

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 180d |
| deposition_date | 1994-07-19 |
| title | SEQUENCE-DEPENDENT MICROHETEROGENEITY OF Z-DNA: THE CRYSTAL AND MOLECULAR STRUCTURES OF D(CACGCG).D(CGCGTG) AND D(CGCACG).D(CGTGCG) |
| keywords | Z-DNA, DOUBLE HELIX, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.37 Å |
| rg_electron | 8.55 Å |
| i0 | 754579.00 |
| molecular_weight | 3593.0 kDa |
| excluded_volume | 3487 ų |
| envelope_volume | 4254 ų |
| shell_volume | 4771 ų |
| envelope_diameter | 28.7 Å |
| shell_rg | 12.85 Å |
| envelope_rg | 8.71 Å |
| shape_rg | 8.51 Å |
| total_rg | 9.56 Å |
| total_atoms | 240 |
| n_residues | 12 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 31.5 Å |
| rg_real | 9.31 Å |
| rg_real_error | 0.29 Å |
| i0_real | 7.5460e+05 |
| i0_real_error | 7.4720e+03 |
| rg_reciprocal | 9.32 Å |
| i0_reciprocal | 754600.0000 |
| total_estimate | 0.8779 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 12.0 Å |
| skewness | 0.162 |
| kurtosis | -0.312 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 53050.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.814; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.972 |
