SAXSdb — 1a4p

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

S100A10

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain A； UniProt 1–96 Chain B； UniProt 1–96	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 7.5；15 MG/ML PROTEIN WERE CRYSTALLIZED BY VAPOR DIFFUSION AGAINST 20% PEG 4000, 10% 2-PROPANOL, 100MM HEPES, PH=7.5, vapor diffusion	Resolution 2.25 Å R-free 0.303
2	Protein homooligomer Homooligomer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain A； UniProt 1–96 Chain B； UniProt 1–96	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 7.5；15 MG/ML PROTEIN WERE CRYSTALLIZED BY VAPOR DIFFUSION AGAINST 20% PEG 4000, 10% 2-PROPANOL, 100MM HEPES, PH=7.5, vapor diffusion	Resolution 2.25 Å R-free 0.303

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1A4P	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BT6 P11 (S100A10), LIGAND OF ANNEXIN II IN COMPLEX WITH ANNEXIN II N-TERMINUS Deposited 1998-09-02	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–96（96 aa） Chain B 1–96（96 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.40 Å R-free 0.307
1BT6 P11 (S100A10), LIGAND OF ANNEXIN II IN COMPLEX WITH ANNEXIN II N-TERMINUS Deposited 1998-09-02	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–96（96 aa） Chain B 1–96（96 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.40 Å R-free 0.307
4DRW Crystal Structure of the Ternary Complex between S100A10, an Annexin A2 N-terminal Peptide and an AHNAK Peptide Deposited 2012-02-17	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–93（93 aa） Fragment：UNP P60903 residues 1-93 and UNP P07355 residues 2-16 Chain B 1–93（93 aa） Fragment：UNP P60903 residues 1-93 and UNP P07355 residues 2-16	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；100mM sodium chloride, 200mM magnesium chloride, 50mM sodium cacodylate, 20% PEG 1000, 0.15mM CYMAL-7, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.50 Å R-free 0.327
4DRW Crystal Structure of the Ternary Complex between S100A10, an Annexin A2 N-terminal Peptide and an AHNAK Peptide Deposited 2012-02-17	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–93（93 aa） Fragment：UNP P60903 residues 1-93 and UNP P07355 residues 2-16 Chain D 1–93（93 aa） Fragment：UNP P60903 residues 1-93 and UNP P07355 residues 2-16	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；100mM sodium chloride, 200mM magnesium chloride, 50mM sodium cacodylate, 20% PEG 1000, 0.15mM CYMAL-7, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.50 Å R-free 0.327
4FTG The crystal structure of an AHNAK peptide in complex with the S100A10/AnxA2 heterotetramer Deposited 2012-06-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 2–97（96 aa） Chain B 2–97（96 aa）	Not recorded	IPA ISOPROPYL ALCOHOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；290 K；20% PEG 8000 (w/v), 0.1 M Tris pH 8.5, 10% 2-propanol, VAPOR DIFFUSION, HANGING DROP, temperature 290K	Resolution 2.51 Å R-free 0.251
4HRE Crystal Structure of p11/Annexin A2 Heterotetramer in Complex with SMARCA3 Peptide Deposited 2012-10-27	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 2–97（96 aa） Chain F 2–97（96 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.7；293 K；0.1 M citric acid, 25% PEG 3350, pH 3.7, VAPOR DIFFUSION, SITTING DROP, temperature 293.0K	Resolution 2.79 Å R-free 0.296
4HRE Crystal Structure of p11/Annexin A2 Heterotetramer in Complex with SMARCA3 Peptide Deposited 2012-10-27	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain I 2–97（96 aa） Chain J 2–97（96 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.7；293 K；0.1 M citric acid, 25% PEG 3350, pH 3.7, VAPOR DIFFUSION, SITTING DROP, temperature 293.0K	Resolution 2.79 Å R-free 0.296
4HRG Crystal Structure of p11-Annexin A2(N-terminal) Fusion Protein in Complex with AHNAK1 Peptide Deposited 2012-10-27	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–94（94 aa） Chain B 1–94（94 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.1 M Tris, 30 % PEG 6000, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.00 Å R-free 0.217
4HRH Crystal Structure of p11-Annexin A2(N-terminal) Fusion Protein in Complex with SMARCA3 Peptide Deposited 2012-10-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–93（93 aa） Chain B 1–93（93 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；0.1 M MES, 1.6 M (NH4)2SO4, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.00 Å R-free 0.263
4HRH Crystal Structure of p11-Annexin A2(N-terminal) Fusion Protein in Complex with SMARCA3 Peptide Deposited 2012-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–93（93 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；0.1 M MES, 1.6 M (NH4)2SO4, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.00 Å R-free 0.263
4HRH Crystal Structure of p11-Annexin A2(N-terminal) Fusion Protein in Complex with SMARCA3 Peptide Deposited 2012-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–93（93 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；0.1 M MES, 1.6 M (NH4)2SO4, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.00 Å R-free 0.263
4HRH Crystal Structure of p11-Annexin A2(N-terminal) Fusion Protein in Complex with SMARCA3 Peptide Deposited 2012-10-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Insufficient information Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 1–93（93 aa） Chain B 1–93（93 aa）	Not recorded	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；0.1 M MES, 1.6 M (NH4)2SO4, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.00 Å R-free 0.263

6 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	S10AA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–96； UniProt 1–96 Author chain B； PDBConstruct 1–96； UniProt 1–96

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1a4p
Deposition date deposition_date	1998-01-30
Structure title title	P11 (S100A10), LIGAND OF ANNEXIN II
Keywords keywords	;S100 FAMILY, EF-HAND PROTEIN, LIGAND OF ANNEXIN II, CALCIUM/PHOSPHOLIPID BINDING PROTEIN, CALCIUM-PHOSPHOLIPID BINDING PROTEIN complex ;; CALCIUM/PHOSPHOLIPID BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.00 Å
Radius of gyration Rg (electron density) rg_electron	22.22 Å
Forward intensity I(0) i0	7792910.00
Molecular weight molecular_weight	21093.0 kDa
Excluded volume excluded_volume	26509 Å³
Envelope volume envelope_volume	36502 Å³
Hydration-shell volume shell_volume	14392 Å³
Envelope diameter envelope_diameter	73.5 Å
Shell Rg shell_rg	27.70 Å
Envelope Rg envelope_rg	21.94 Å
Shape Rg shape_rg	22.23 Å
Total Rg total_rg	23.03 Å
Total atoms total_atoms	1475
Residues n_residues	183
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	72.4 Å
Rg (real space) rg_real	23.00 Å
Rg uncertainty (real space) rg_real_error	0.56 Å
I(0) (real space) i0_real	7.7930e+06
I(0) uncertainty (real space) i0_real_error	1.0900e+05
Rg (reciprocal space) rg_reciprocal	23.00 Å
I(0) (reciprocal space) i0_reciprocal	7793000.0000
Solution quality estimate total_estimate	0.9055
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.2 Å
Skewness Skewness skewness	0.174
Kurtosis Kurtosis kurtosis	-0.749
Angular range angular_range	— – 0.3450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	616100.0000
Real-space data points n_real_points	66
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.942; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.953; Smooth: 0.987

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1a4pa_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.2 — S100 proteins

Domain ID domain_id	d1a4pb_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.2 — S100 proteins

CATH v4.4 (2 domains)

Domain ID domain_id	1a4pA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

Domain ID domain_id	1a4pB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

▶

8. Citations (1)

▶

Unit-cell length a length_a	57.750 Å
Unit-cell length b length_b	80.750 Å
Unit-cell length c length_c	95.510 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	—

Resolution resolution	2.250 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2460
R_work r_work	0.2270
R_free r_free	0.3030

Description description	S100A10
Molecular weight formula_weight	11088.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1559

P11 (S100A10), LIGAND OF ANNEXIN II

1. Protein Identity and Related Structures Protein Identity & Related Structures

S100A10

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

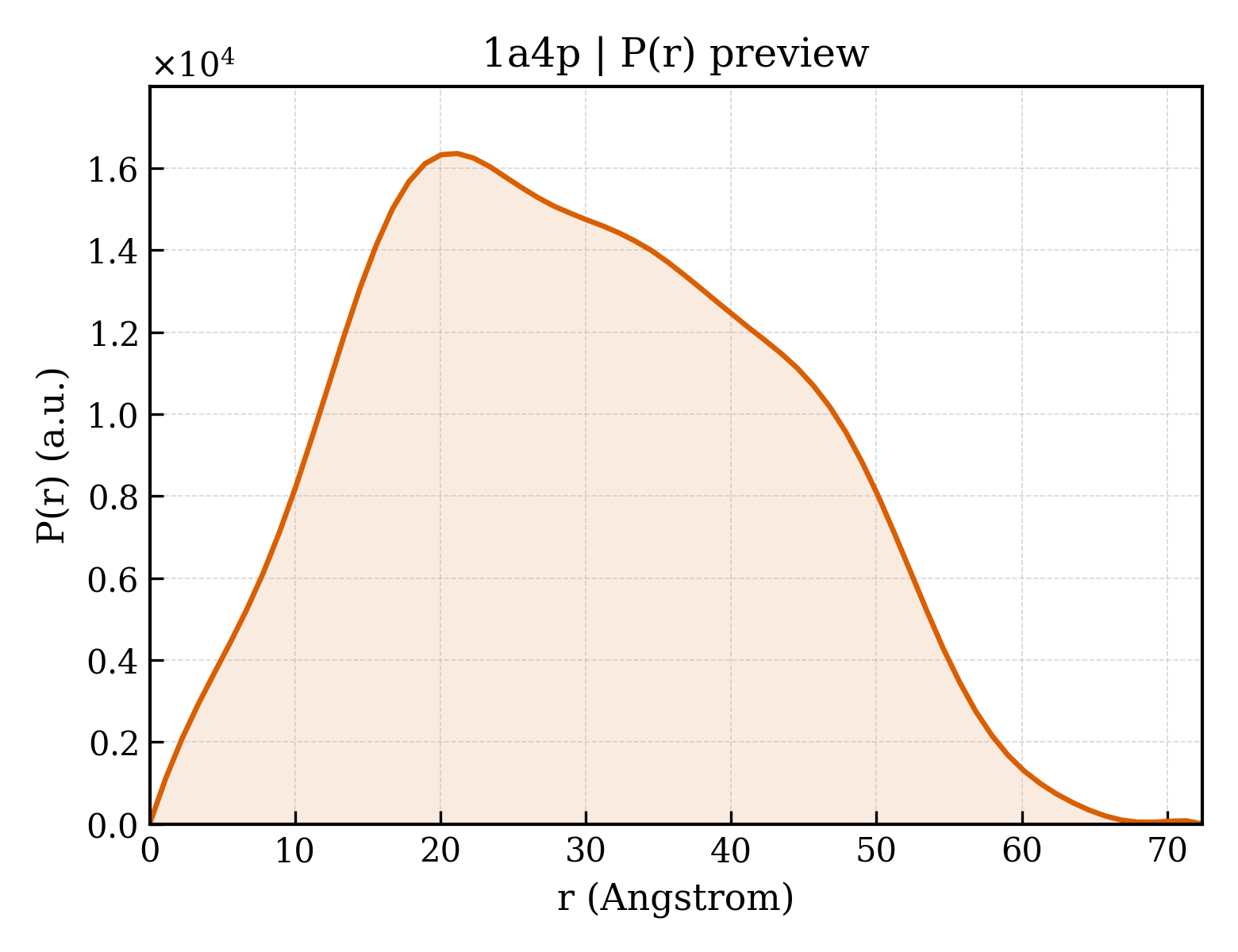

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	63

fit	/app/data/saxs_computation/a4/1a4p/1a4p.fit
pddf	/app/data/pr_computation/a4/1a4p/1a4p.pr.out
profile	/app/data/saxs_computation/a4/1a4p/1a4p.dat
