1a5h
CATALYTIC DOMAIN OF HUMAN TWO-CHAIN TISSUE PLASMINOGEN ACTIVATOR COMPLEX OF A BIS-BENZAMIDINE
SAXS Profile

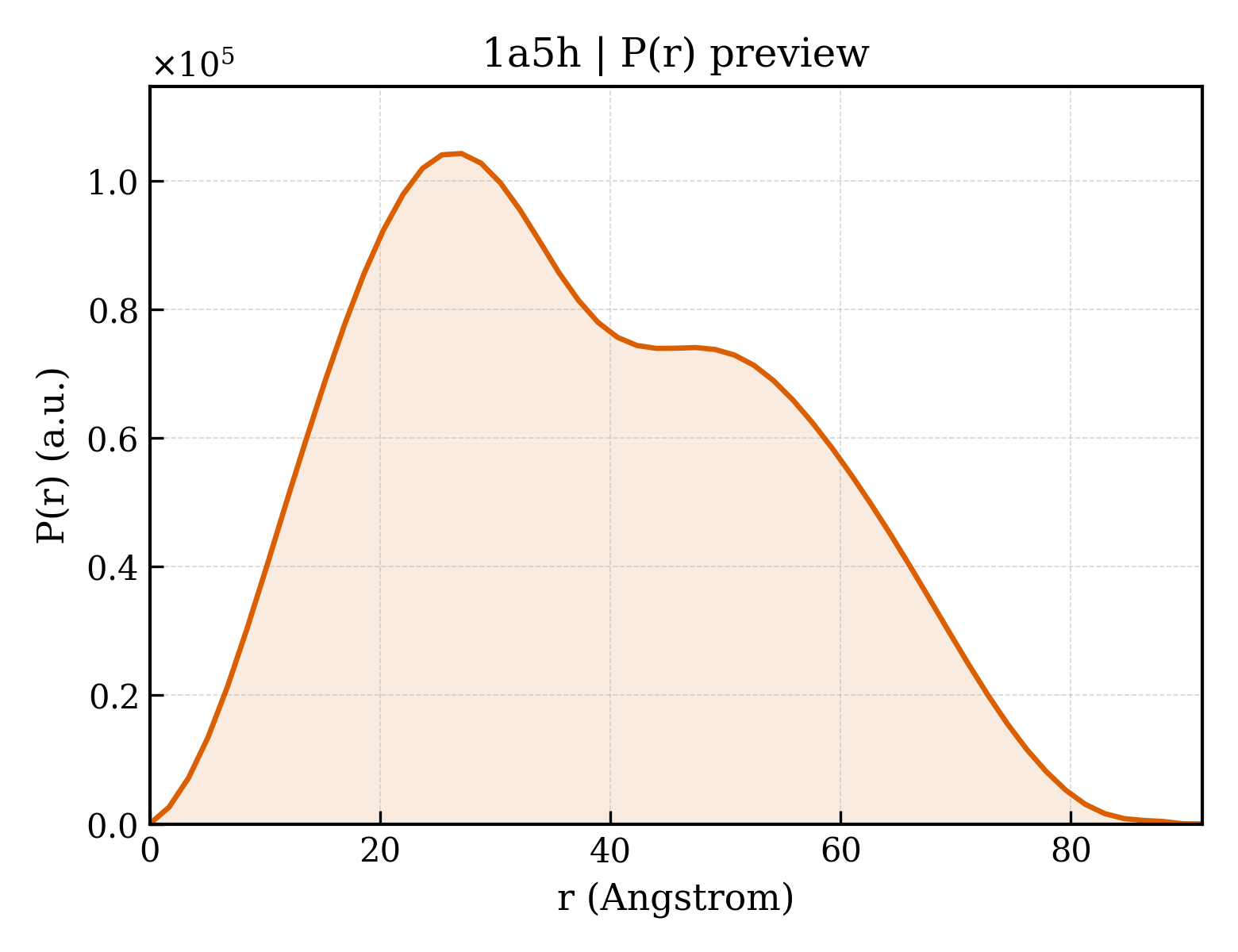

P(r) Distribution
1. Structure Basics
| entry_id | 1a5h |
| deposition_date | 1998-02-17 |
| title | CATALYTIC DOMAIN OF HUMAN TWO-CHAIN TISSUE PLASMINOGEN ACTIVATOR COMPLEX OF A BIS-BENZAMIDINE |
| keywords | TRYPSIN LIKE SERINE PROTEASE, FIBRINOLYTIC ENZYME, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 29.25 Å |
| rg_electron | 28.35 Å |
| i0 | 59162300.00 |
| molecular_weight | 58669.0 kDa |
| excluded_volume | 72705 ų |
| envelope_volume | 93662 ų |
| shell_volume | 27681 ų |
| envelope_diameter | 91.5 Å |
| shell_rg | 35.70 Å |
| envelope_rg | 27.94 Å |
| shape_rg | 28.30 Å |
| total_rg | 29.21 Å |
| total_atoms | 5068 |
| n_residues | 518 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 91.4 Å |
| rg_real | 29.31 Å |
| rg_real_error | 0.83 Å |
| i0_real | 5.9160e+07 |
| i0_real_error | 9.6560e+05 |
| rg_reciprocal | 29.29 Å |
| i0_reciprocal | 59160000.0000 |
| total_estimate | 0.8819 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 27.1 Å |
| skewness | 0.275 |
| kurtosis | -0.791 |
| angular_range | — – 0.2700 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 18870000.0000 |
| n_real_points | 55 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.873; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.933; Smooth: 0.909 |
