1a61

THROMBIN COMPLEXED WITH A BETA-MIMETIC THIAZOLE-CONTAINING INHIBITOR

Method: X-RAY DIFFRACTION D_max: 57.1 Å Quality: EXCELLENT

SAXS Profile

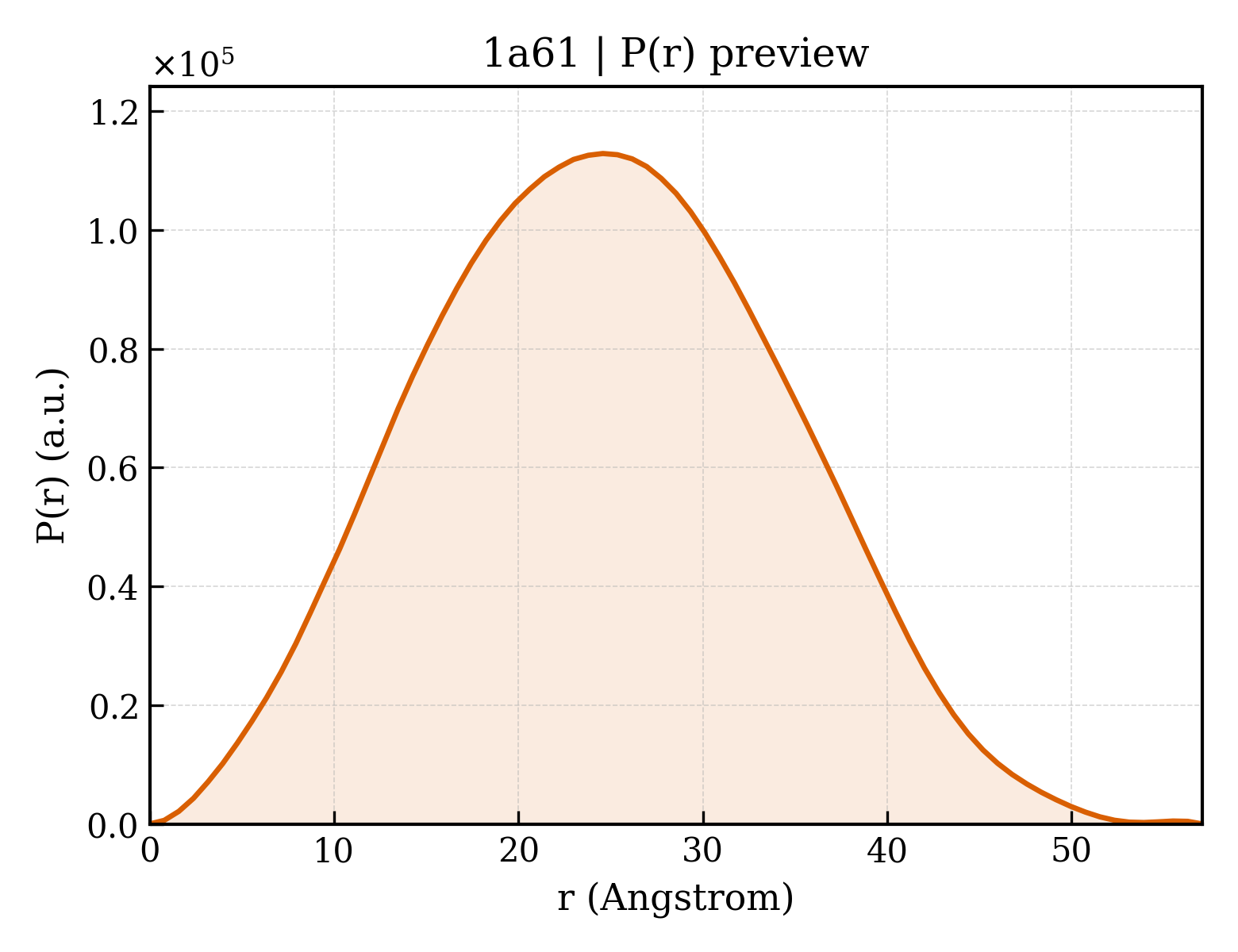

P(r) Distribution

▼

1. Structure Basics

entry_id	1a61
deposition_date	1998-03-05
title	THROMBIN COMPLEXED WITH A BETA-MIMETIC THIAZOLE-CONTAINING INHIBITOR
keywords	COMPLEX (SERINE PROTEASE-INHIBITOR), HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	18.88 Å
rg_electron	17.92 Å
i0	36661900.00
molecular_weight	31378.0 kDa
excluded_volume	30364 Å³
envelope_volume	46673 Å³
shell_volume	20974 Å³
envelope_diameter	58.7 Å
shell_rg	24.97 Å
envelope_rg	18.19 Å
shape_rg	17.90 Å
total_rg	18.65 Å
total_atoms	2371
n_residues	286
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	57.1 Å
rg_real	18.72 Å
rg_real_error	0.24 Å
i0_real	3.6660e+07
i0_real_error	4.1690e+05
rg_reciprocal	18.75 Å
i0_reciprocal	36660000.0000
total_estimate	0.9017
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	24.6 Å
skewness	0.097
kurtosis	-0.482
angular_range	— – 0.4200 Å⁻¹
current_alpha	0.0000
highest_alpha	12170000.0000
n_real_points	73
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.916; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.994

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	ALPHA-THROMBIN (SMALL SUBUNIT)
formula_weight	4096.5 kDa
ec_number	3.4.21.5
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	L
atom_count	2512

TFGSGEADCGLRPLFEKKSLEDKTERELLESYIDGR

Entity 2 polymer

description	ALPHA-THROMBIN (LARGE SUBUNIT)
formula_weight	29780.2 kDa
ec_number	3.4.21.5
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

IVEGSDAEIGMSPWQVMLFRKSPQELLCGASLISDRWVLTAAHCLLYPPWDKNFTENDLLVRIGKHSRTRYERNIEKISMLEKIYIHPRYNWRENLDRDIALMKLKKPVAFSDYIHPVCLPDRETAASLLQAGYKGRVTGWGNLKETWTANVGKGQPSVLQVVNLPIVERPVCKDSTRIRITDNMFCAGYKPDEGKRGDACEGDSGGPFVMKSPFNNRWYQMGIVSWGEGCDRDGKYGFYTHVFRLKKWIQKVIDQFGE

Entity 3 polymer

description	HIRUGEN
formula_weight	1534.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	I

NGDFEEIPEEYL

Entity 4 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	;(1S,7S)-7-amino-7-benzyl-N-{(1S)-4-carbamimidamido-1-[(S)-hydroxy(1,3-thiazol-2-yl)methyl]butyl}-8-oxohexahydro-1H-pyra zolo[1,2-a]pyridazine-1-carboxamide ;
formula_weight	514.6 kDa
src_method	syn
entity_count	1

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	141

▶

6. Citations (4)

▶

length_a	70.850 Å
length_b	72.410 Å
length_c	72.970 Å
angle_alpha	90.00 °
angle_beta	101.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

resolution	2.200 Å
resolution_low	7.000 Å
r_factor	—
r_work	0.1480
r_free	—

fit	/app/data/saxs_computation/a6/1a61/1a61.fit
pddf	/app/data/pr_computation/a6/1a61/1a61.pr.out
profile	/app/data/saxs_computation/a6/1a61/1a61.dat
