1a6p
ENGINEERING OF A MISFOLDED FORM OF CD2

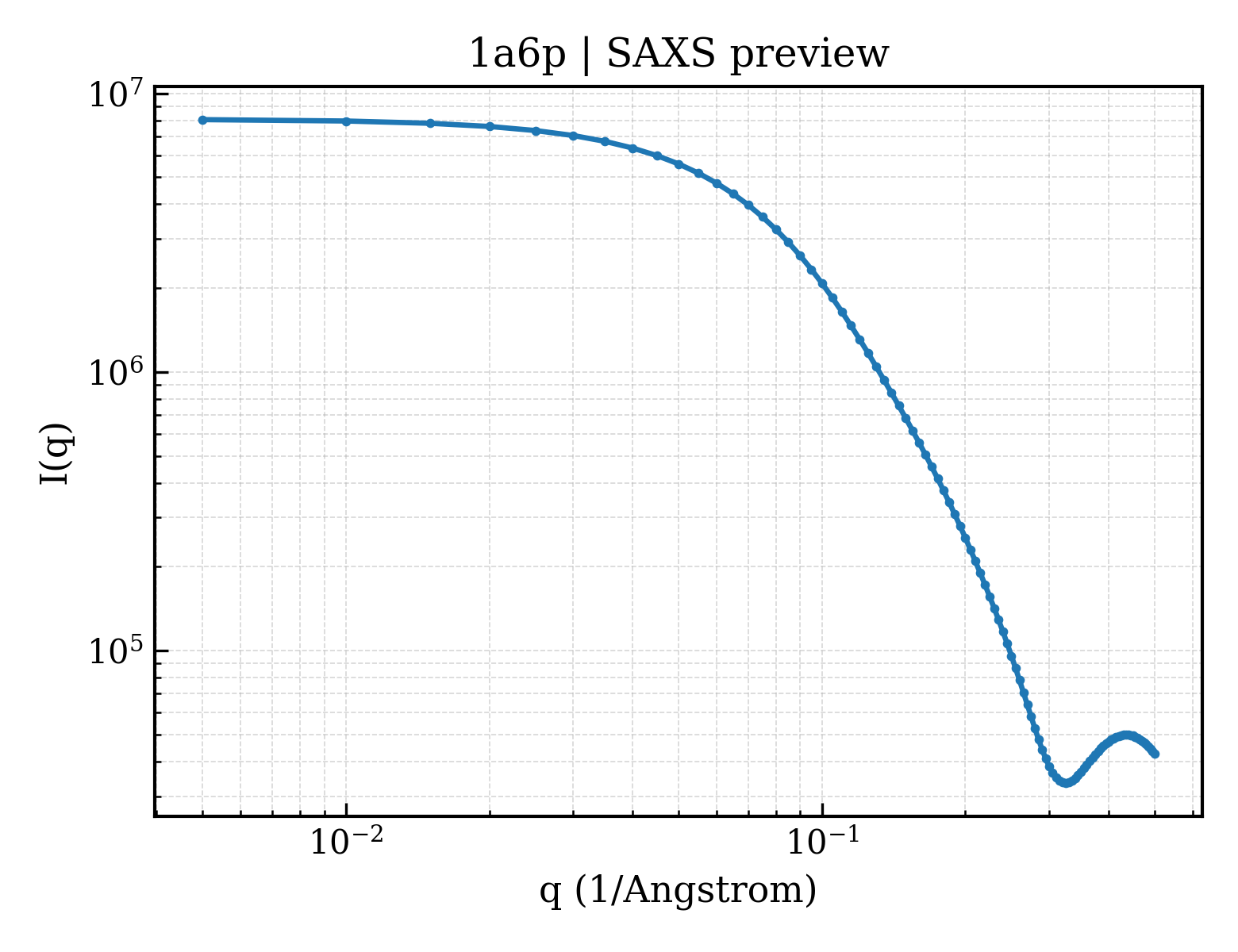

SAXS Profile

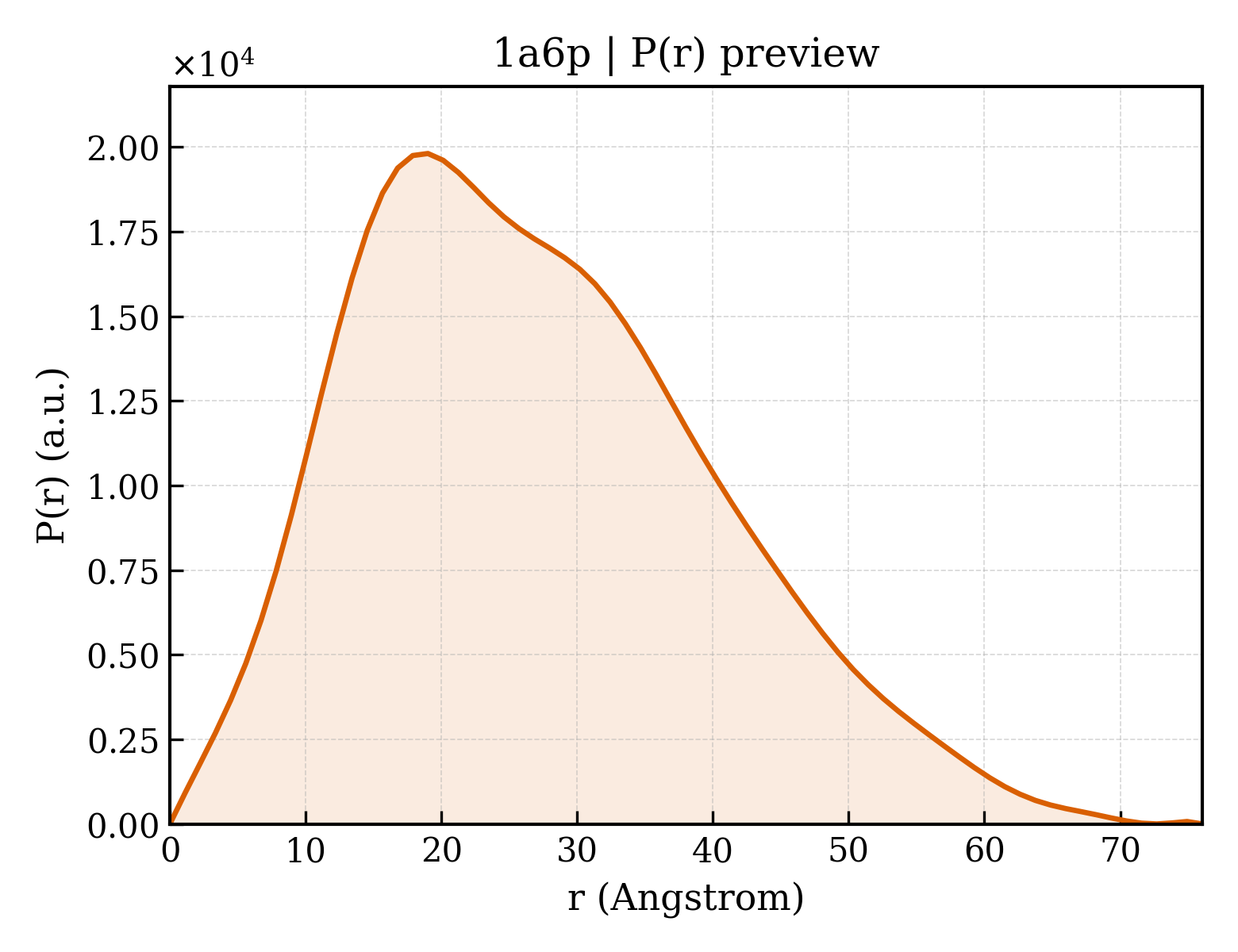

P(r) Distribution
1. Structure Basics
| entry_id | 1a6p |
| deposition_date | 1998-02-26 |
| title | ENGINEERING OF A MISFOLDED FORM OF CD2 |
| keywords | DOMAIN SWAPPING, HINGE LOOP, OLIGOMER EVOLUTION, T LYMPHOCYTE ADHESION GLYCOPROTEIN, CELL ADHESION; CELL ADHESION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.12 Å |
| rg_electron | 20.44 Å |
| i0 | 8076700.00 |
| molecular_weight | 21050.0 kDa |
| excluded_volume | 26416 ų |
| envelope_volume | 32103 ų |
| shell_volume | 14214 ų |
| envelope_diameter | 75.8 Å |
| shell_rg | 25.26 Å |
| envelope_rg | 20.56 Å |
| shape_rg | 20.42 Å |
| total_rg | 21.26 Å |
| total_atoms | 1486 |
| n_residues | 188 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 76.0 Å |
| rg_real | 21.27 Å |
| rg_real_error | 0.79 Å |
| i0_real | 8.0770e+06 |
| i0_real_error | 1.1550e+05 |
| rg_reciprocal | 21.24 Å |
| i0_reciprocal | 8077000.0000 |
| total_estimate | 0.8152 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 19.0 Å |
| skewness | 0.492 |
| kurtosis | -0.239 |
| angular_range | — – 0.3750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2764000.0000 |
| n_real_points | 69 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.677; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.618; Smooth: 0.943 |
