SAXSdb — 1aha

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ALPHA-MOMORCHARIN

Momordica charantia

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 24–269	Not recorded	ADE ADENINE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.20 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1AHA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AHB THE N-GLYCOSIDASE MECHANISM OF RIBOSOME-INACTIVATING PROTEINS IMPLIED BY CRYSTAL STRUCTURES OF ALPHA-MOMORCHARIN Deposited 1994-01-07	Different ligand/ion	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–269（246 aa）	Not recorded	FMP FORMYCIN-5'-MONOPHOSPHATE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
1AHC THE N-GLYCOSIDASE MECHANISM OF RIBOSOME-INACTIVATING PROTEINS IMPLIED BY CRYSTAL STRUCTURES OF ALPHA-MOMORCHARIN Deposited 1994-01-07	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–269（246 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1F8Q CRYSTAL STRUCTURE OF ALPHA-MOMORCHARIN IN ACETONITRILE-WATER MIXTURE Deposited 2000-07-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–286（263 aa）	Not recorded	PTD PENTANEDIAL × 3 CCN ACETONITRILE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.1；295 K；PEG 3350, Tris-HCl, ATP, pH 7.1, VAPOR DIFFUSION, HANGING DROP, temperature 295.0K	Resolution 2.20 Å R-free 0.272
1MOM CRYSTAL STRUCTURE OF MOMORDIN, A TYPE I RIBOSOME INACTIVATING PROTEIN FROM THE SEEDS OF MOMORDICA CHARANTIA Deposited 1994-03-04	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–269（246 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.16 Å
1MRG STUDIES ON CRYSTAL STRUCTURES ACTIVE CENTER GEOMETRY AND DEPURINE MECHANISM OF TWO RIBOSOME-INACTIVATING PROTEINS Deposited 1994-07-01	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–286（263 aa）	Not recorded	ADN ADENOSINE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å
1MRH STUDIES ON CRYSTAL STRUCTURES ACTIVE CENTER GEOMETRY AND DEPURINE MECHANISM OF TWO RIBOSOME-INACTIVATING PROTEINS Deposited 1994-07-01	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–286（263 aa）	Not recorded	FMC (1S)-1-(7-amino-1H-pyrazolo[4,3-d]pyrimidin-3-yl)-1,4-anhydro-D-ribitol × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1MRI STUDIES ON CRYSTAL STRUCTURES ACTIVE CENTER GEOMETRY AND DEPURINE MECHANISM OF TWO RIBOSOME-INACTIVATING PROTEINS Deposited 1994-07-01	Different construct Different ligand/ion	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–286（263 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
4YP2 Cleavage of nicotinamide adenine dinucleotides by the ribosome inactivating protein from Momordica charantia Deposited 2015-03-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 24–269（246 aa） Fragment：UNP residues 24-269	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NCA NICOTINAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG 4000, sodium phosphate	Resolution 1.35 Å R-free 0.168
5CF9 Cleavage of nicotinamide adenine dinucleotide by the ribosome inactivating protein of Momordica charantia - enzyme-NADP+ co-crystallisation. Deposited 2015-07-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 24–269（246 aa） Fragment：residues 24-269	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NCA NICOTINAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；PEG 4000, sodium phosphate	Resolution 1.52 Å R-free 0.168
6LOQ crystal structure of alpha-momorcharin in complex with cAMP Deposited 2020-01-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–286（286 aa）	Not recorded	CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.2 M Magnesium Acetate, 20% PEG 8000, 0.1 M Sodium cacodylate, pH 6.5	Resolution 1.33 Å R-free 0.257
6LOR crystal structure of alpha-momorcharin in complex with ADP Deposited 2020-01-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–286（286 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.2 M Magnesium Acetate, 20% PEG 8000, 0.1 M Sodium cacodylate,pH 6.5	Resolution 1.35 Å R-free 0.251
6LOV crystal structure of alpha-momorcharin in complex with xanthosine Deposited 2020-01-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–286（286 aa）	Not recorded	4UO 2,3-dihydroxanthosine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.2 M Magnesium Acetate, 20% PEG 8000, 0.1 M Sodium cacodylate, pH 6.5	Resolution 1.35 Å R-free 0.259
6LOW crystal structure of alpha-momorcharin in complex with GMP Deposited 2020-01-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–286（286 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 5GP GUANOSINE-5'-MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.2 M Magnesium Acetate, 20% PEG 8000, 0.1 M Sodium cacodylate, pH 6.5	Resolution 1.39 Å R-free 0.210
6LOY crystal structure of alpha-momorcharin in complex with dAMP Deposited 2020-01-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–286（286 aa）	Not recorded	D5M 2'-DEOXYADENOSINE-5'-MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.2 M Magnesium Acetate, 20% PEG 8000, 0.1 M Sodium cacodylate, pH 6.5	Resolution 1.35 Å R-free 0.349
6LOZ crystal structure of alpha-momorcharin in complex with adenine Deposited 2020-01-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–286（286 aa）	Not recorded	ADE ADENINE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.2 M Magnesium Acetate, 20% PEG 8000, 0.1 M Sodium cacodylate, pH 6.5	Resolution 1.08 Å R-free 0.222
6LP0 crystal structure of alpha-momorcharin in complex with AMP Deposited 2020-01-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–286（286 aa）	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.2 M Magnesium Acetate, 20% PEG 8000, 0.1 M Sodium cacodylate, pH 6.5	Resolution 1.52 Å R-free 0.299

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RIP1_MOMCH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–246； UniProt 24–269

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1aha
Deposition date deposition_date	1994-01-07
Structure title title	THE N-GLYCOSIDASE MECHANISM OF RIBOSOME-INACTIVATING PROTEINS IMPLIED BY CRYSTAL STRUCTURES OF ALPHA-MOMORCHARIN
Keywords keywords	GLYCOSIDASE; GLYCOSIDASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.01 Å
Radius of gyration Rg (electron density) rg_electron	17.74 Å
Forward intensity I(0) i0	12866200.00
Molecular weight molecular_weight	27509.0 kDa
Excluded volume excluded_volume	34757 Å³
Envelope volume envelope_volume	38945 Å³
Hydration-shell volume shell_volume	18293 Å³
Envelope diameter envelope_diameter	63.3 Å
Shell Rg shell_rg	24.04 Å
Envelope Rg envelope_rg	17.98 Å
Shape Rg shape_rg	17.71 Å
Total Rg total_rg	18.76 Å
Total atoms total_atoms	1943
Residues n_residues	246
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	61.2 Å
Rg (real space) rg_real	19.23 Å
Rg uncertainty (real space) rg_real_error	0.13 Å
I(0) (real space) i0_real	1.2640e+07
I(0) uncertainty (real space) i0_real_error	1.2360e+05
Rg (reciprocal space) rg_reciprocal	18.92 Å
I(0) (reciprocal space) i0_reciprocal	12870000.0000
Solution quality estimate total_estimate	0.6835
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	23.8 Å
Skewness Skewness skewness	0.308
Kurtosis Kurtosis kurtosis	-0.136
Angular range angular_range	— – 0.4200 Å⁻¹
Current regularization parameter α current_alpha	7.7110
Highest regularization parameter α highest_alpha	3057000.0000
Real-space data points n_real_points	73
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.876; Stabil: 0.929; Sysdev: 0.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.500

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ALPHA-MOMORCHARIN
Molecular weight formula_weight	27396.3 kDa
EC 编号 ec_number	3.2.2.22
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2024

DVSFRLSGADPRSYGMFIKDLRNALPFREKVYNIPLLLPSVSGAGRYLLMHLFNYDGKTITVAVDVTNVYIMGYLADTTSYFFNEPAAELASQYVFRDARRKITLPYSGNYERLQIAAGKPREKIPIGLPALDSAISTLLHYDSTAAAGALLVLIQTTAEAARFKYIEQQIQERAYRDEVPSLATISLENSWSGLSKQIQLAQGNNGIFRTPIVLVDNKGNRVQITNVTSKVVTSNIQLLLNTRNI

来源 Source

来源生物 organism	Momordica charantia
通用名 common_name	balsam pear
NCBI Class编号 ncbi_taxonomy_id	3673

Entity 2 Entity 2 non-polymer

Description description	ADENINE
Molecular weight formula_weight	135.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	81

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1ahaa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.165 — Ribosome inactivating proteins (RIP)
Superfamily Superfamily superfamily	d.165.1 — Ribosome inactivating proteins (RIP)
Family Family family	d.165.1.1 — Plant cytotoxins

CATH v4.4 (2 domains)

Domain ID domain_id	1ahaA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	420 — Ricin (A subunit); domain 1
Homologous superfamily homologous superfamily	10 — Ricin (A subunit), domain 1

Domain ID domain_id	1ahaA02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	470 — Ricin (A Subunit), domain 2
Homologous superfamily homologous superfamily	10 — Ricin (A Subunit), domain 2

▶

8. Citations (3)

▶

Unit-cell length a length_a	132.200 Å
Unit-cell length b length_b	132.200 Å
Unit-cell length c length_c	38.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	9

Space group space_group	H 3
Space-group number int_tables_number	146
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	0.1830
R_work r_work	0.1830
R_free r_free	—

fit	/app/data/saxs_computation/ah/1aha/1aha.fit
pddf	/app/data/pr_computation/ah/1aha/1aha.pr.out
profile	/app/data/saxs_computation/ah/1aha/1aha.dat

THE N-GLYCOSIDASE MECHANISM OF RIBOSOME-INACTIVATING PROTEINS IMPLIED BY CRYSTAL STRUCTURES OF ALPHA-MOMORCHARIN

1. Protein Identity and Related Structures Protein Identity & Related Structures

ALPHA-MOMORCHARIN

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

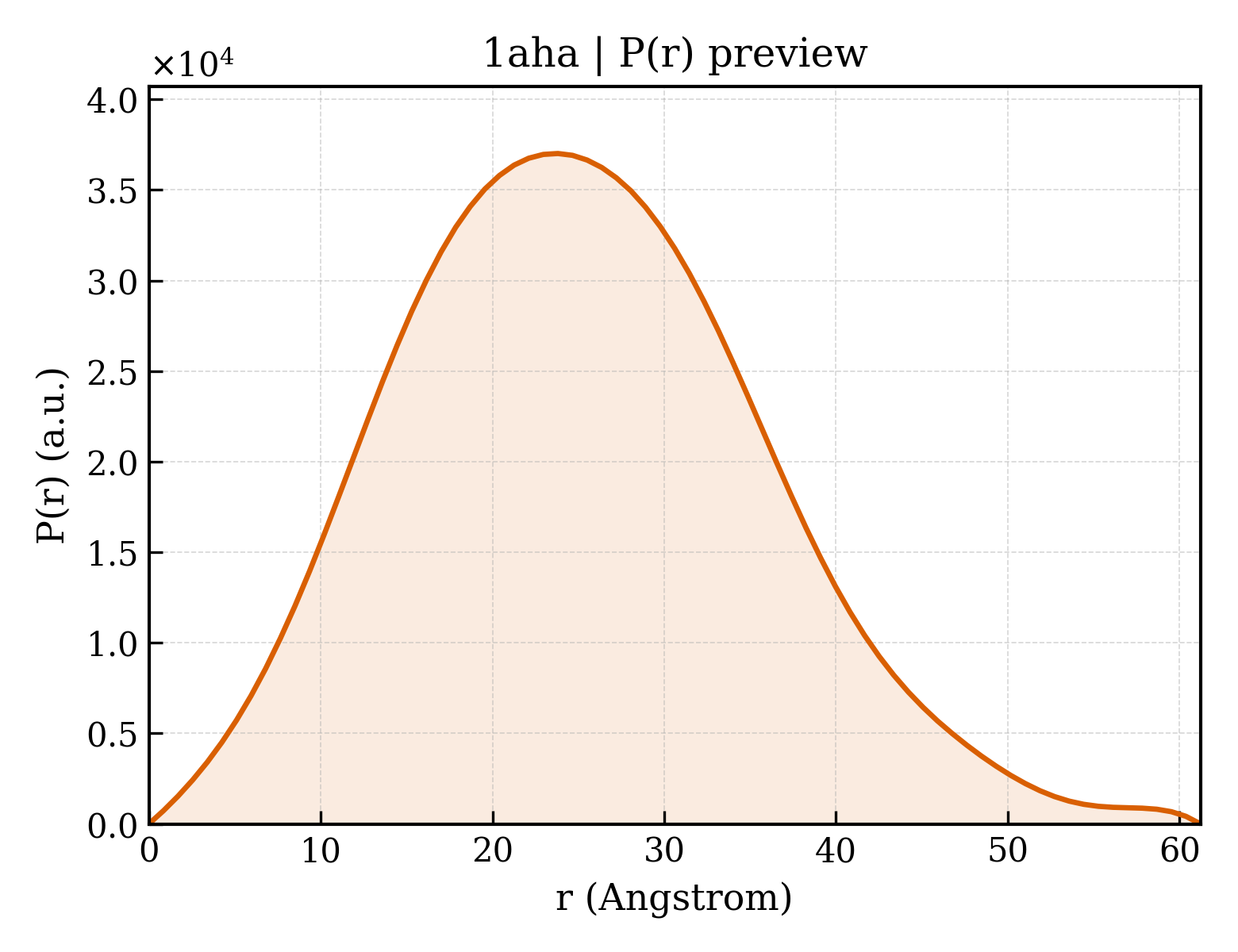

P(r) Distance Distribution P(r) Distribution
