1aiy
R6 HUMAN INSULIN HEXAMER (SYMMETRIC), NMR, 10 STRUCTURES

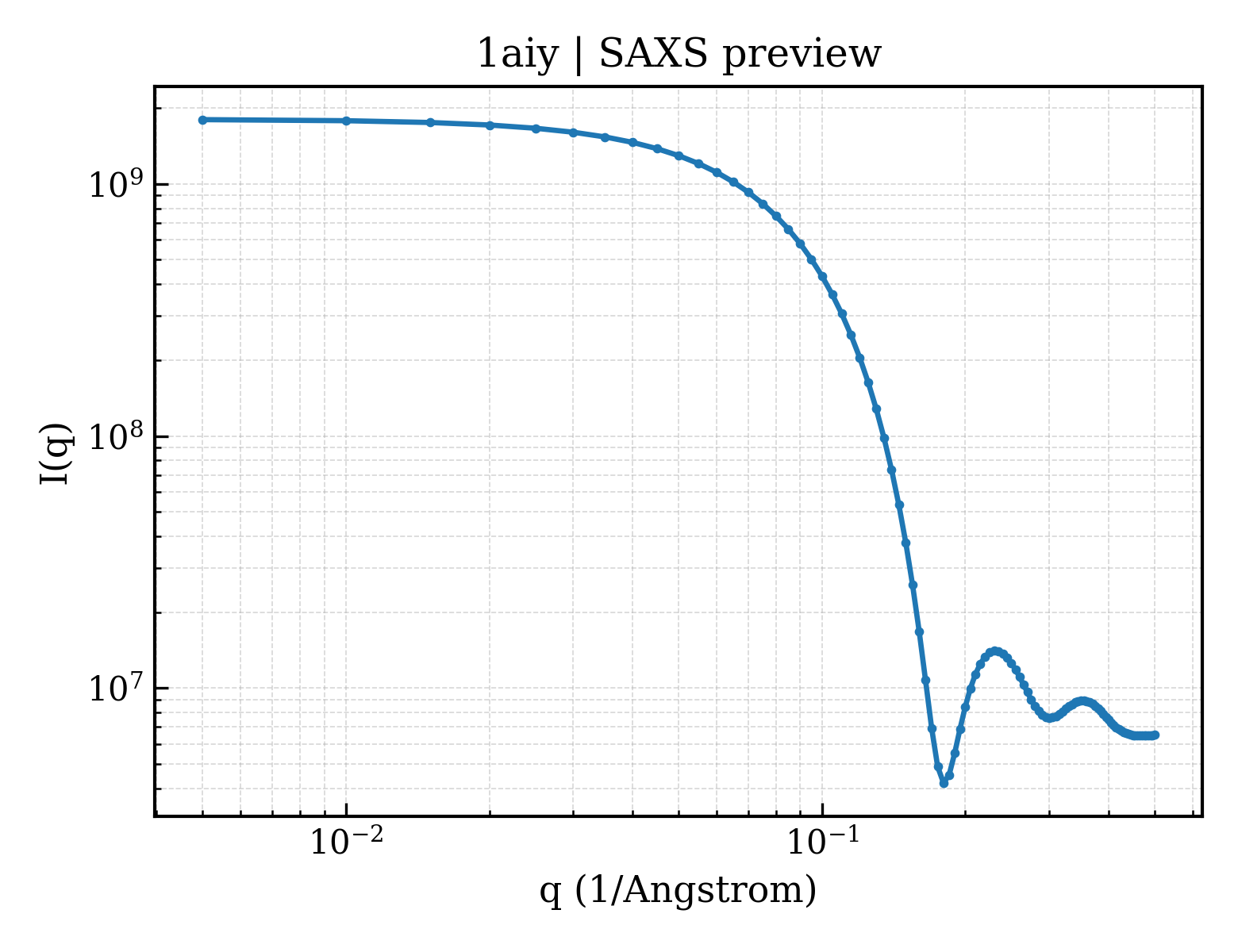

SAXS Profile

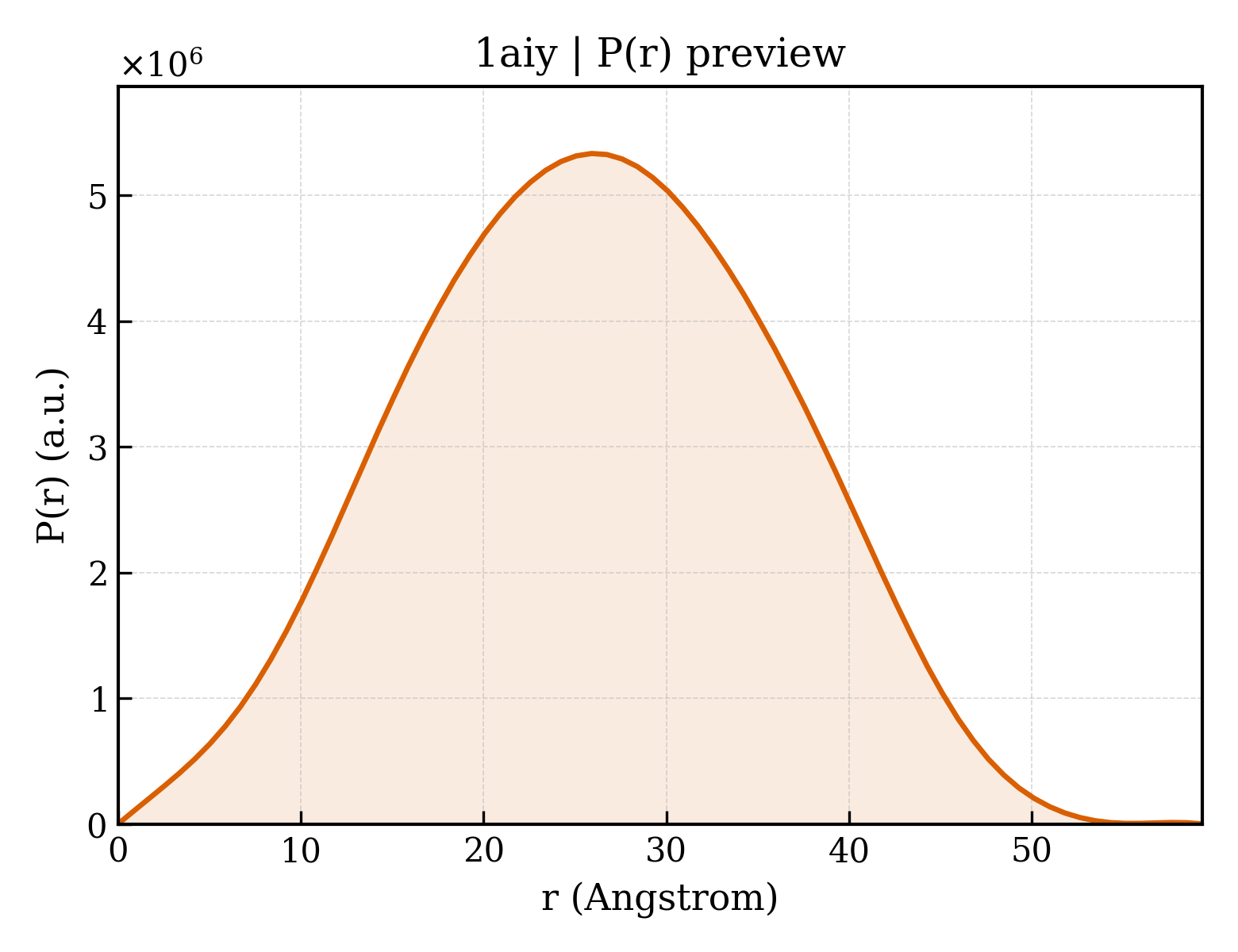

P(r) Distribution
1. Structure Basics
| entry_id | 1aiy |
| deposition_date | 1997-04-30 |
| title | R6 HUMAN INSULIN HEXAMER (SYMMETRIC), NMR, 10 STRUCTURES |
| keywords | HORMONE, GLUCOSE METABOLISM; HORMONE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.97 Å |
| rg_electron | 19.48 Å |
| i0 | 1804860000.00 |
| molecular_weight | 355650.0 kDa |
| excluded_volume | 441570 ų |
| envelope_volume | 77244 ų |
| shell_volume | 29031 ų |
| envelope_diameter | 64.5 Å |
| shell_rg | 29.13 Å |
| envelope_rg | 21.10 Å |
| shape_rg | 19.48 Å |
| total_rg | 19.64 Å |
| total_atoms | 47960 |
| n_residues | 3060 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 59.3 Å |
| rg_real | 19.76 Å |
| rg_real_error | 0.22 Å |
| i0_real | 1.8050e+09 |
| i0_real_error | 1.9730e+07 |
| rg_reciprocal | 19.79 Å |
| i0_reciprocal | 1805000000.0000 |
| total_estimate | 0.9028 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 25.9 Å |
| skewness | 0.002 |
| kurtosis | -0.528 |
| angular_range | — – 0.4000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5682000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.922; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.998 |
