1aja
;THREE-DIMENSIONAL STRUCTURE OF THE D153G MUTANT OF E. COLI ALKALINE PHOSPHATASE: A MUTANT WITH WEAKER MAGNESIUM BINDING AND INCREASED CATALYTIC ACTIVITY ;
SAXS Profile

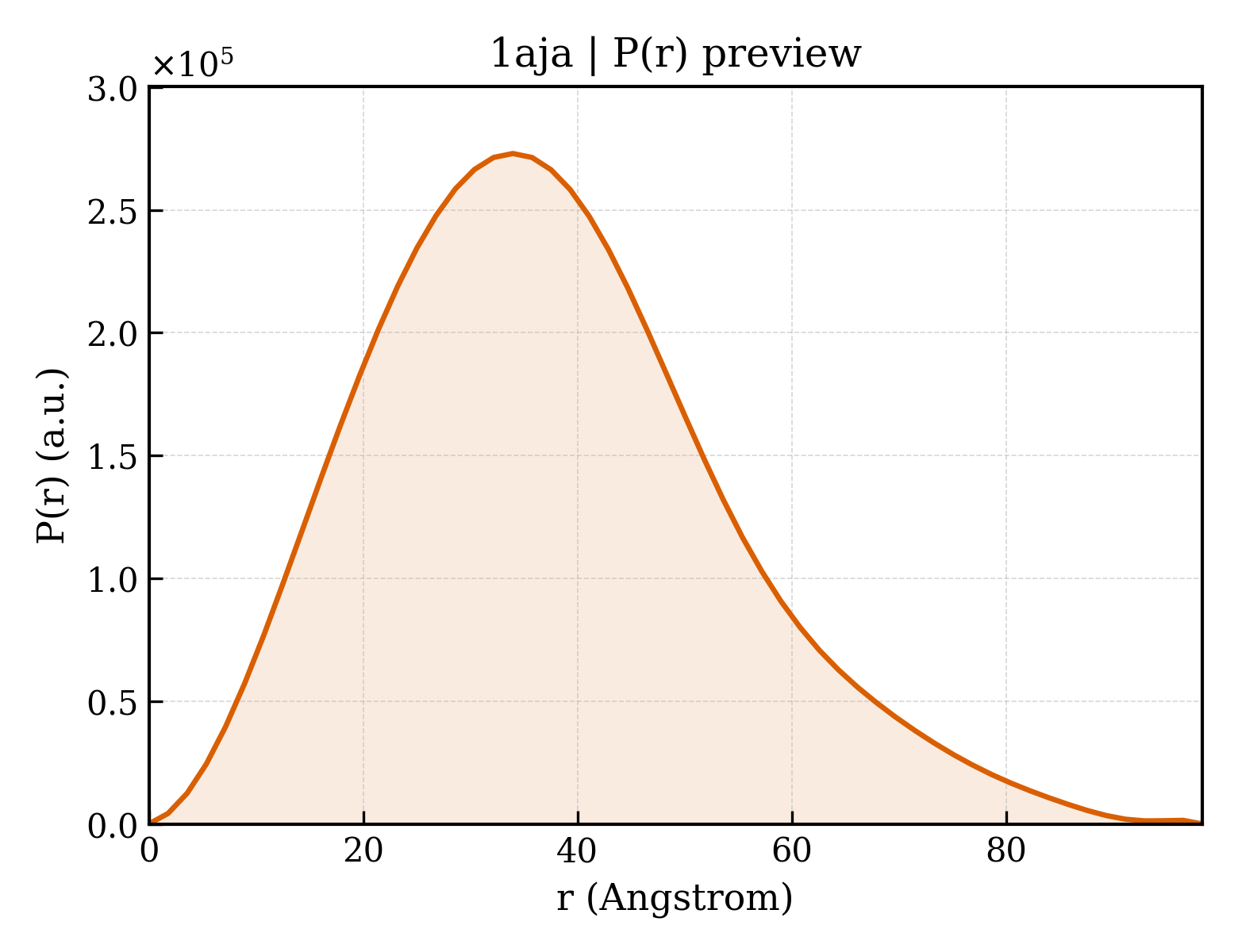

P(r) Distribution
1. Structure Basics
| entry_id | 1aja |
| deposition_date | 1995-08-19 |
| title | ;THREE-DIMENSIONAL STRUCTURE OF THE D153G MUTANT OF E. COLI ALKALINE PHOSPHATASE: A MUTANT WITH WEAKER MAGNESIUM BINDING AND INCREASED CATALYTIC ACTIVITY ; |
| keywords | NON SPECIFIC MONO-ESTERASE; NON SPECIFIC MONO-ESTERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 28.68 Å |
| rg_electron | 27.98 Å |
| i0 | 136963000.00 |
| molecular_weight | 90421.0 kDa |
| excluded_volume | 112210 ų |
| envelope_volume | 130130 ų |
| shell_volume | 38505 ų |
| envelope_diameter | 103.7 Å |
| shell_rg | 35.65 Å |
| envelope_rg | 28.13 Å |
| shape_rg | 27.98 Å |
| total_rg | 28.65 Å |
| total_atoms | 6352 |
| n_residues | 869 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 98.3 Å |
| rg_real | 28.71 Å |
| rg_real_error | 0.64 Å |
| i0_real | 1.3700e+08 |
| i0_real_error | 2.0770e+06 |
| rg_reciprocal | 28.69 Å |
| i0_reciprocal | 137000000.0000 |
| total_estimate | 0.8583 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 34.0 Å |
| skewness | 0.482 |
| kurtosis | 0.012 |
| angular_range | — – 0.2750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 32510000.0000 |
| n_real_points | 56 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.734; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.978 |
