COMPLEX BETWEEN CDC42HS.GMPPNP AND P50 RHOGAP (H. SAPIENS)

entry_id	1am4
deposition_date	1997-06-22
title	COMPLEX BETWEEN CDC42HS.GMPPNP AND P50 RHOGAP (H. SAPIENS)
keywords	COMPLEX (GTPASE-ACTIVATING-GTP-BINDING), GTPASE ACTIVATION, COMPLEX (GTPASE-ACTIVATING-GTP-BINDING) complex; COMPLEX (GTPASE-ACTIVATING/GTP-BINDING)
method	X-RAY DIFFRACTION

rg_guinier	38.86 Å
rg_electron	38.43 Å
i0	227066000.00
molecular_weight	125990.0 kDa
excluded_volume	159220 ų
envelope_volume	213350 ų
shell_volume	47453 ų
envelope_diameter	122.9 Å
shell_rg	43.38 Å
envelope_rg	37.50 Å
shape_rg	38.44 Å
total_rg	38.72 Å
total_atoms	8889
n_residues	1119
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	126.3 Å
rg_real	38.74 Å
rg_real_error	0.94 Å
i0_real	2.2710e+08
i0_real_error	3.2090e+06
rg_reciprocal	38.82 Å
i0_reciprocal	227100000.0000
total_estimate	0.9039
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	52.4 Å
skewness	0.120
kurtosis	-0.711
angular_range	— – 0.2050 Å−1
current_alpha	0.0000
highest_alpha	31630000.0000
n_real_points	42
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.926; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.976

Unit Cell

length_a	78.110 Å
length_b	78.120 Å
length_c	78.100 Å
angle_alpha	90.01 °
angle_beta	90.00 °
angle_gamma	90.05 °
z_pdb	3

Symmetry

space_group	P 1
int_tables_number	1
crystal_system	—

Refinement

resolution	2.700 Å
resolution_low	12.000 Å
r_factor	—
r_work	0.2300
r_free	0.2800

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/am/1am4/pr_distribution.json
• pr_output /app/data/pr_computation/am/1am4/1am4.pr.out

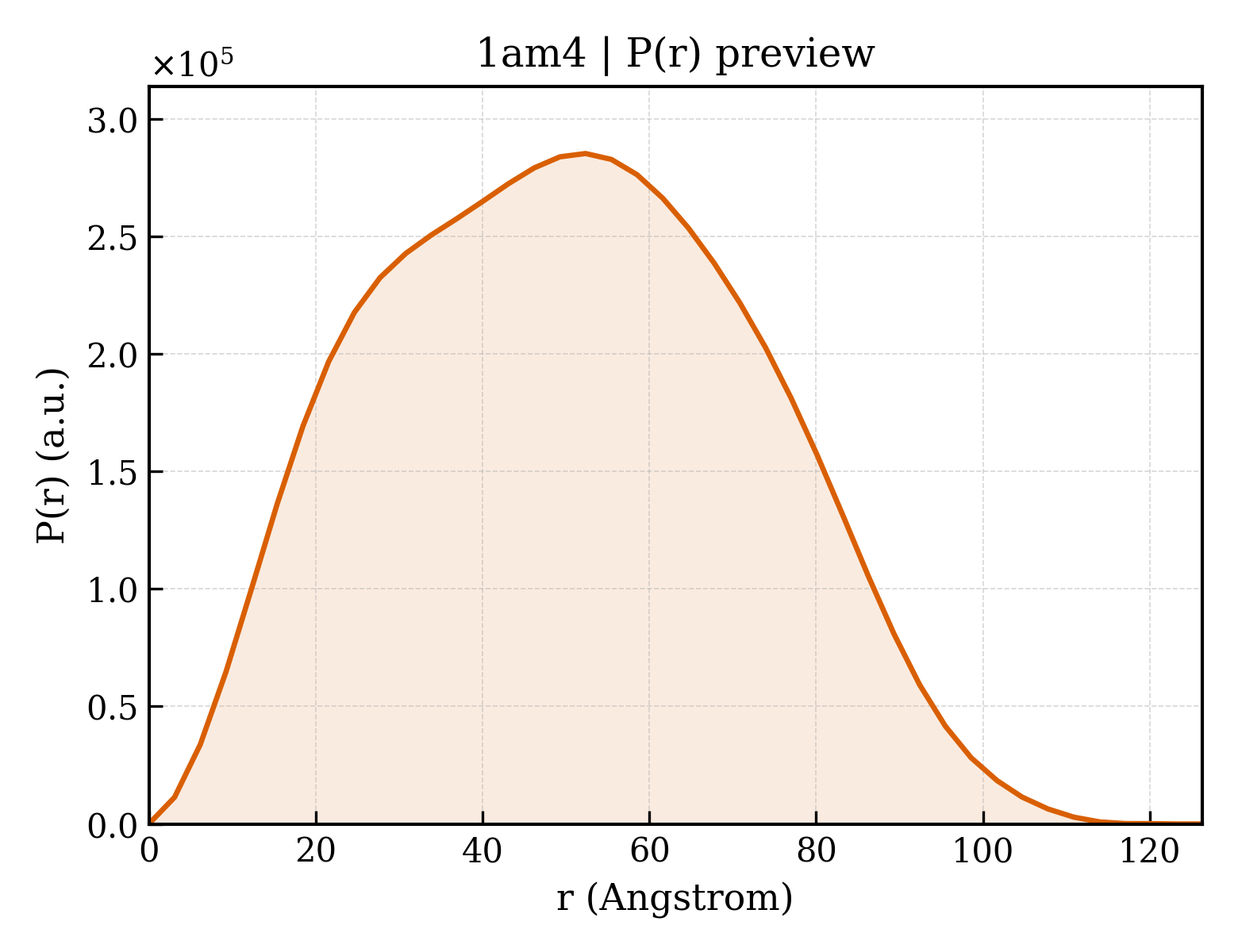

• pr_plot /app/data/visualization/pr_computation/am/1am4/1am4_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/am/1am4/1am4.dat
• saxs_fit /app/data/saxs_computation/am/1am4/1am4.fit
• saxs_log /app/data/saxs_computation/am/1am4/1am4.log
• saxs_plot /app/data/visualization/saxs_computation/am/1am4/1am4_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/am/1am4/1am4.fit
pddf	/app/data/pr_computation/am/1am4/1am4.pr.out
profile	/app/data/saxs_computation/am/1am4/1am4.dat
