1amb
SOLUTION STRUCTURE OF RESIDUES 1-28 OF THE AMYLOID BETA-PEPTIDE

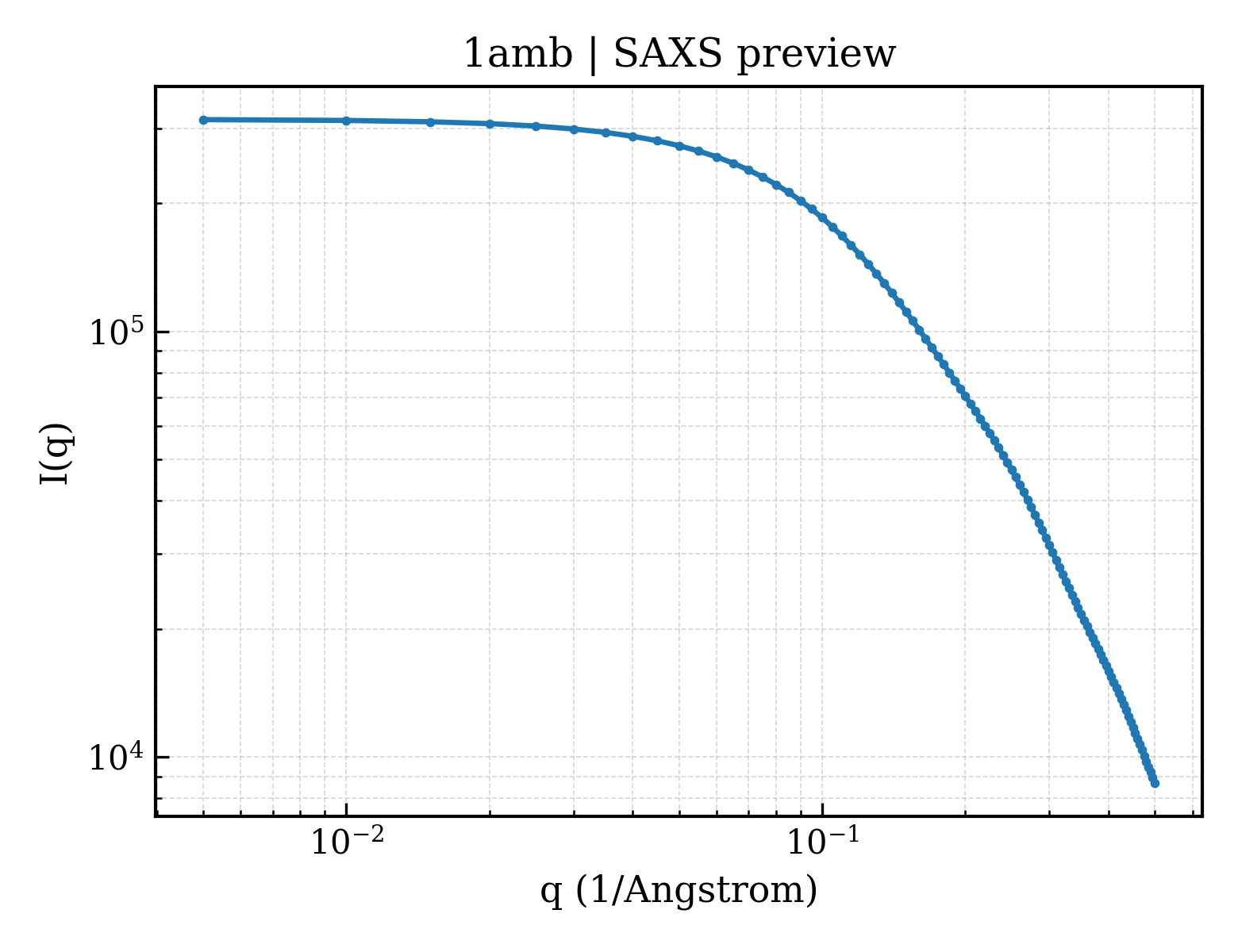

SAXS Profile

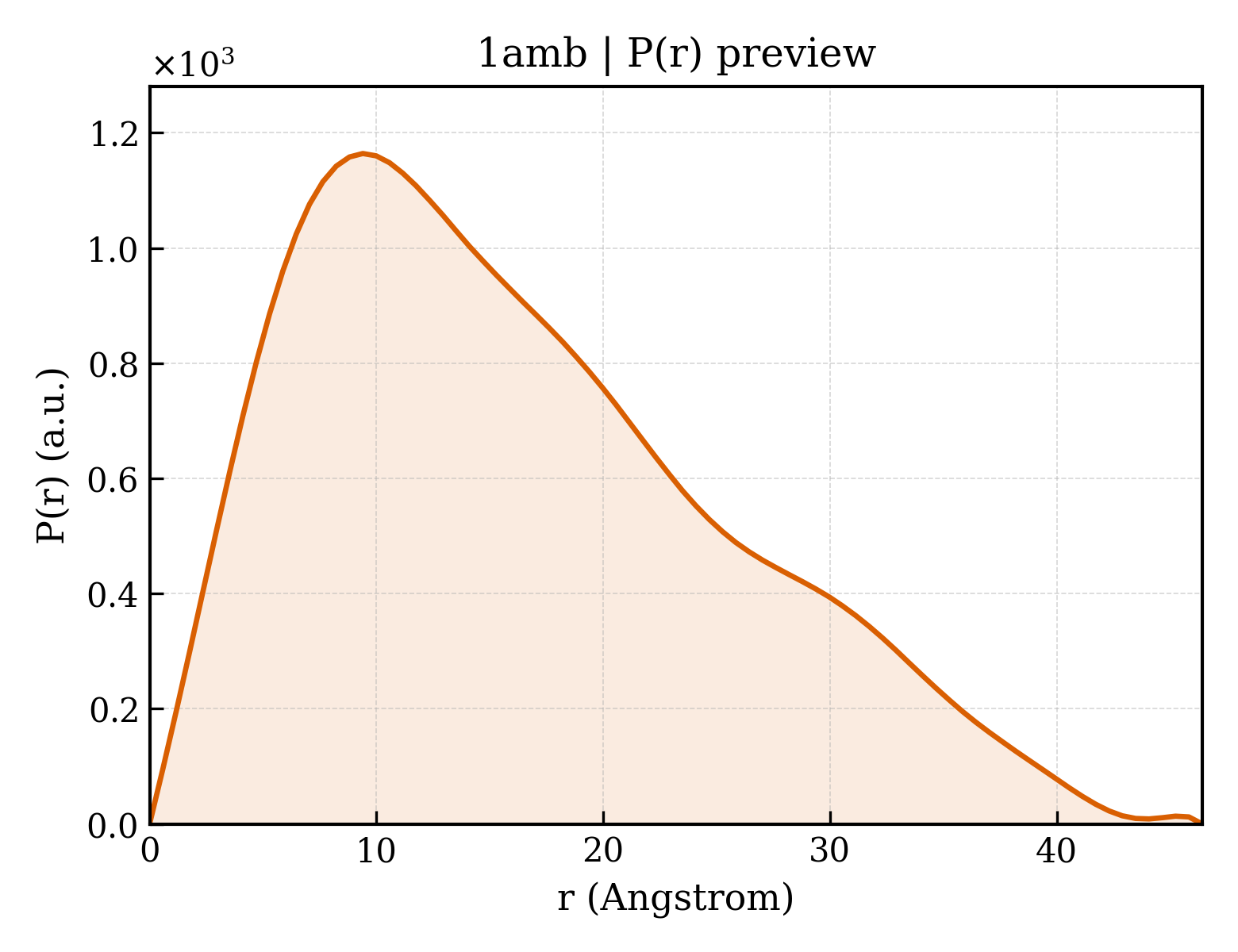

P(r) Distribution
1. Structure Basics
| entry_id | 1amb |
| deposition_date | 1994-10-21 |
| title | SOLUTION STRUCTURE OF RESIDUES 1-28 OF THE AMYLOID BETA-PEPTIDE |
| keywords | PROTEINASE INHIBITOR(TRYPSIN); PROTEINASE INHIBITOR(TRYPSIN) |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.89 Å |
| rg_electron | 12.25 Å |
| i0 | 314607.00 |
| molecular_weight | 3259.0 kDa |
| excluded_volume | 3971 ų |
| envelope_volume | 4960 ų |
| shell_volume | 4409 ų |
| envelope_diameter | 43.1 Å |
| shell_rg | 15.10 Å |
| envelope_rg | 12.76 Å |
| shape_rg | 12.21 Å |
| total_rg | 13.19 Å |
| total_atoms | 438 |
| n_residues | 28 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 46.4 Å |
| rg_real | 13.19 Å |
| rg_real_error | 0.44 Å |
| i0_real | 3.1460e+05 |
| i0_real_error | 3.9100e+03 |
| rg_reciprocal | 13.17 Å |
| i0_reciprocal | 314600.0000 |
| total_estimate | 0.7584 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 9.4 Å |
| skewness | 0.592 |
| kurtosis | -0.388 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 15410.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.593; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.099; Smooth: 0.979 |
