SAXSdb — 1ap7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

P19-INK4D

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–166	Not recorded	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 7.5；303 K；Ionic strength (raw mmCIF value) 100mM NACL, 1mM EDTA, 5mM DTT；Pressure 1 NMR sample composition：20MM SODIUM PHOSPHATE	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1AP7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BLX P19INK4D/CDK6 COMPLEX Deposited 1998-07-21	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–166（166 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 1.90 Å R-free 0.253

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CDN2D_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–168； UniProt 1–166

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ap7
Deposition date deposition_date	1997-07-25
Structure title title	P19-INK4D FROM MOUSE, NMR, 20 STRUCTURES
Keywords keywords	CELL CYCLE INHIBITOR, CYCLIN DEPENDENT KINASE INHIBITOR, INK, CDKI, ANKYRIN REPEAT; CELL CYCLE INHIBITOR
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.99 Å
Radius of gyration Rg (electron density) rg_electron	17.90 Å
Forward intensity I(0) i0	1933610000.00
Molecular weight molecular_weight	358950.0 kDa
Excluded volume excluded_volume	444170 Å³
Envelope volume envelope_volume	48736 Å³
Hydration-shell volume shell_volume	19236 Å³
Envelope diameter envelope_diameter	79.8 Å
Shell Rg shell_rg	28.48 Å
Envelope Rg envelope_rg	23.44 Å
Shape Rg shape_rg	17.80 Å
Total Rg total_rg	18.38 Å
Total atoms total_atoms	50360
Residues n_residues	3360
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	73.5 Å
Rg (real space) rg_real	18.19 Å
Rg uncertainty (real space) rg_real_error	0.80 Å
I(0) (real space) i0_real	1.9340e+09
I(0) uncertainty (real space) i0_real_error	2.7840e+07
Rg (reciprocal space) rg_reciprocal	18.17 Å
I(0) (reciprocal space) i0_reciprocal	1934000000.0000
Solution quality estimate total_estimate	0.7133
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	16.9 Å
Skewness Skewness skewness	0.598
Kurtosis Kurtosis kurtosis	-0.046
Angular range angular_range	— – 0.4400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1629000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.324; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.298; Smooth: 0.998

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1ap7a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.211 — beta-hairpin-alpha-hairpin repeat
Superfamily Superfamily superfamily	d.211.1 — Ankyrin repeat
Family Family family	d.211.1.1 — Ankyrin repeat

CATH v4.4 (1 domains)

Domain ID domain_id	1ap7A00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	20 — Ankyrin repeat-containing domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	P19-INK4D
Molecular weight formula_weight	17976.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	50360

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli BL21(DE3)

P19-INK4D FROM MOUSE, NMR, 20 STRUCTURES

1. Protein Identity and Related Structures Protein Identity & Related Structures

P19-INK4D

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

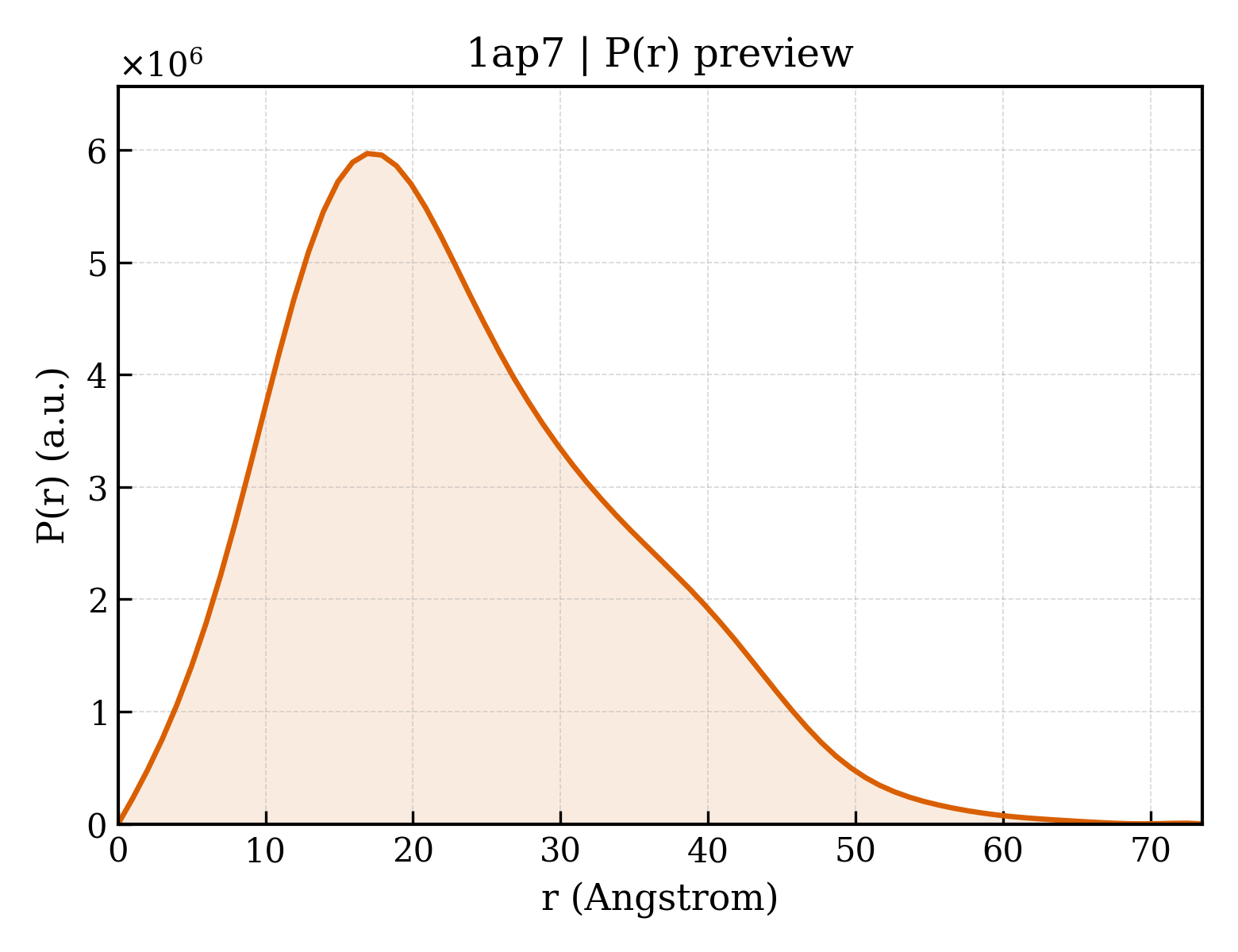

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/ap/1ap7/1ap7.fit
pddf	/app/data/pr_computation/ap/1ap7/1ap7.pr.out
profile	/app/data/saxs_computation/ap/1ap7/1ap7.dat
