1aw6
GAL4 (CD), NMR, 24 STRUCTURES

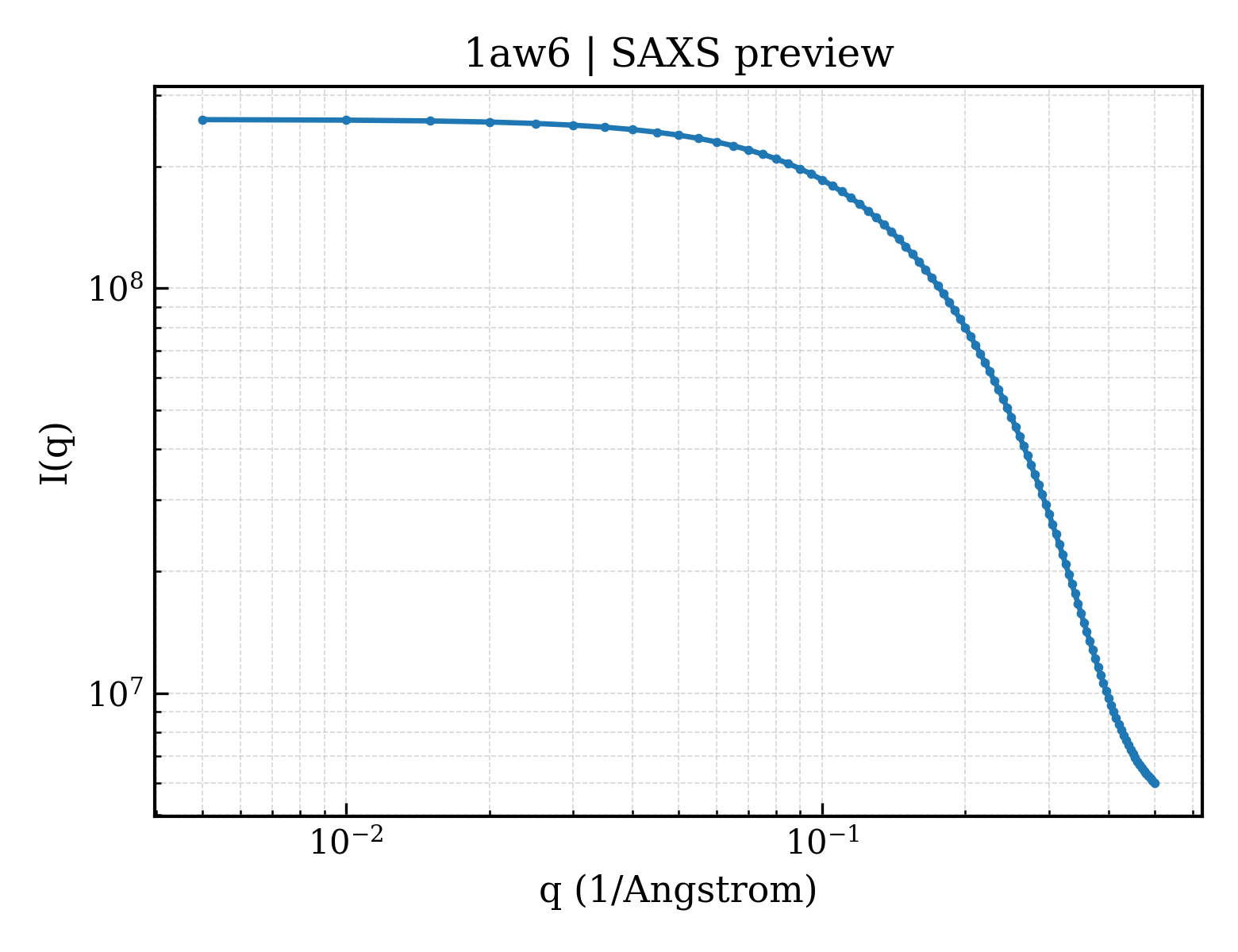

SAXS Profile

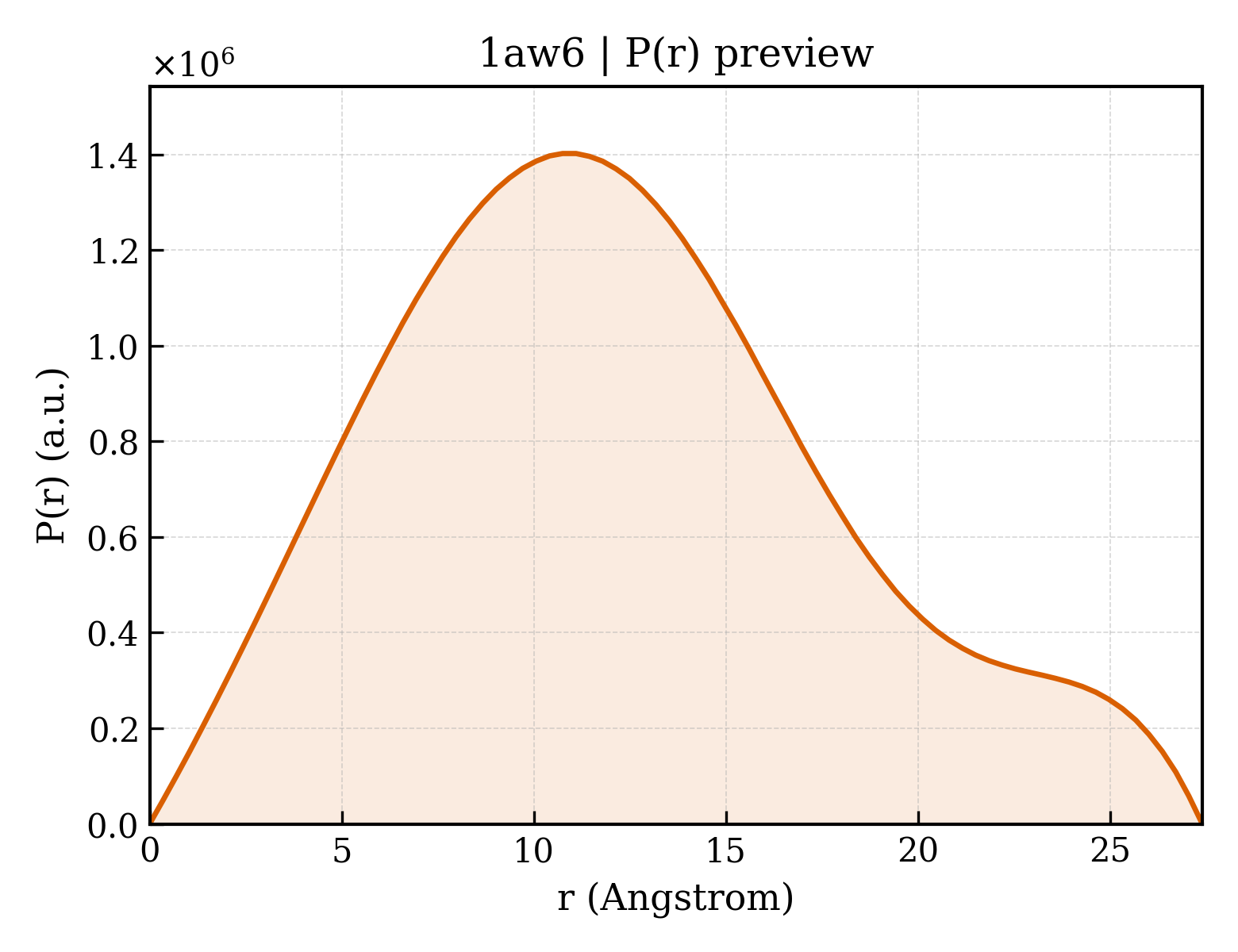

P(r) Distribution
1. Structure Basics
| entry_id | 1aw6 |
| deposition_date | 1997-10-10 |
| title | GAL4 (CD), NMR, 24 STRUCTURES |
| keywords | TRANSCRIPTION REGULATION, DNA-BINDING; TRANSCRIPTION REGULATION |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.16 Å |
| rg_electron | 11.32 Å |
| i0 | 260916000.00 |
| molecular_weight | 126720.0 kDa |
| excluded_volume | 154640 ų |
| envelope_volume | 26434 ų |
| shell_volume | 13732 ų |
| envelope_diameter | 51.7 Å |
| shell_rg | 22.46 Å |
| envelope_rg | 17.61 Å |
| shape_rg | 11.43 Å |
| total_rg | 11.38 Å |
| total_atoms | 17328 |
| n_residues | 1032 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 27.4 Å |
| rg_real | 9.45 Å |
| rg_real_error | 0.05 Å |
| i0_real | 2.5000e+08 |
| i0_real_error | 1.7400e+06 |
| rg_reciprocal | 10.39 Å |
| i0_reciprocal | 260900000.0000 |
| total_estimate | 0.6829 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 0 |
| r_peak_primary | — Å |
| skewness | 0.395 |
| kurtosis | -0.349 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 3.0460 |
| highest_alpha | 14500.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.002; Oscil: 0.984; Stabil: 0.985; Sysdev: 0.000; Positv: 1.000; Valcen: 0.969; Smooth: 0.000 |
