1awo

THE SOLUTION NMR STRUCTURE OF ABL SH3 AND ITS RELATIONSHIP TO SH2 IN THE SH(32) CONSTRUCT, 20 STRUCTURES

Method: SOLUTION NMR D_max: 47.5 Å Quality: GOOD

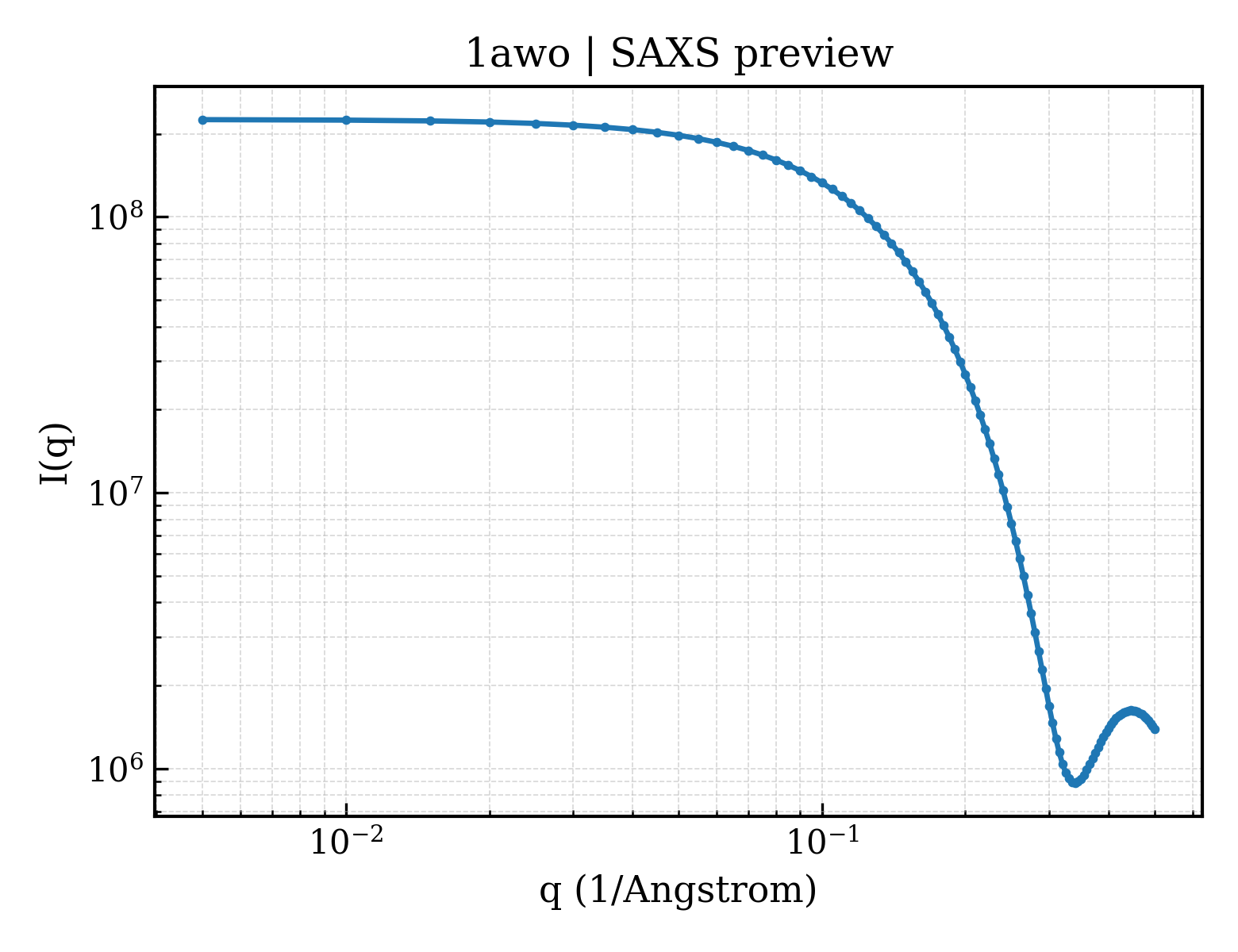

SAXS Profile

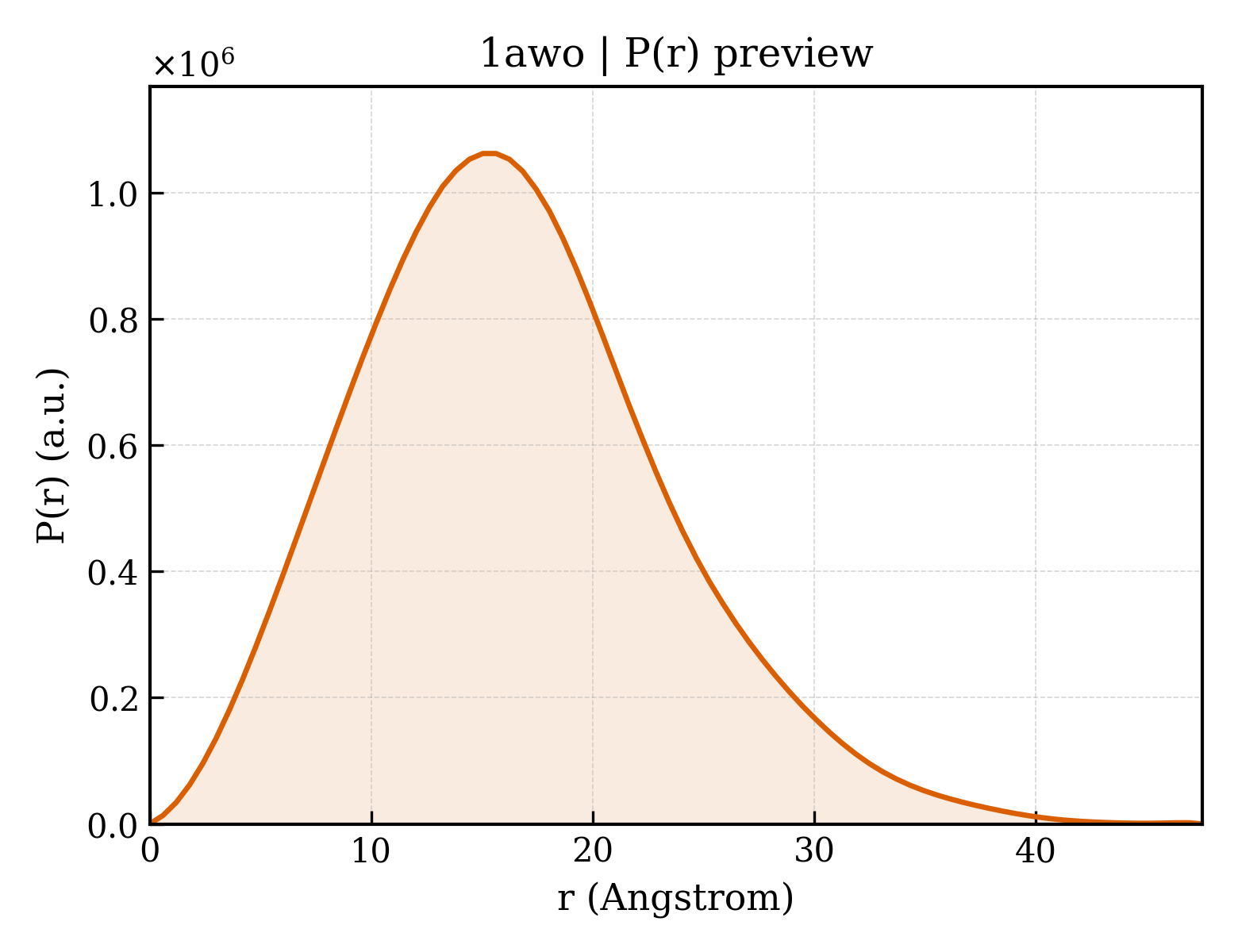

P(r) Distribution

▼

1. Structure Basics

entry_id	1awo
deposition_date	1997-10-03
title	THE SOLUTION NMR STRUCTURE OF ABL SH3 AND ITS RELATIONSHIP TO SH2 IN THE SH(32) CONSTRUCT, 20 STRUCTURES
keywords	KINASE, SH3 DOMAIN, TRANSFERASE, PHOSPHOTRANSFERASE, PROTO-ONCOGENE, MULTIPLE DOMAIN, LEUKEMIA; KINASE
method	SOLUTION NMR

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	12.58 Å
rg_electron	12.02 Å
i0	225583000.00
molecular_weight	125520.0 kDa
excluded_volume	156620 Å³
envelope_volume	29045 Å³
shell_volume	15545 Å³
envelope_diameter	51.5 Å
shell_rg	21.77 Å
envelope_rg	15.80 Å
shape_rg	12.01 Å
total_rg	12.40 Å
total_atoms	17340
n_residues	1140
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	47.5 Å
rg_real	12.58 Å
rg_real_error	0.32 Å
i0_real	2.2560e+08
i0_real_error	2.4850e+06
rg_reciprocal	12.58 Å
i0_reciprocal	225600000.0000
total_estimate	0.7958
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	46.9 Å
skewness	0.464
kurtosis	0.147
angular_range	— – 0.5000 Å⁻¹
current_alpha	0.0000
highest_alpha	1162000.0000
n_real_points	80
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.491; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.870; Smooth: 0.999

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (7)

The solution structure of Abl SH3, and its relationship to SH2 in the SH(32) construct.

Structure (1995)

PMID: 8590002 · DOI: 10.1016/S0969-2126(01)00243-X PRIMARY

Mutagenic Analysis of the Roles of Sh2 and SH3 Domains in Regulation of the Abl Tyrosine Kinase

Mol.Cell.Biol. (1994)

High-Resolution Crystal Structures of Tyrosine Kinase SH3 Domains Complexed with Proline-Rich Peptides

Nat.Struct.Biol. (1994)

Identification of a Ten-Amino Acid Proline-Rich SH3 Binding Site

Science (1993)

;Crystal Structure of the SH3 Domain in Human Fyn; Comparison of the Three-Dimensional Structures of SH3 Domains in Tyrosine Kinases and Spectrin ;

Embo J. (1993)

Three-Dimensional Solution Structure of the Src Homology 2 Domain of C-Abl

Cell(Cambridge,Mass.) (1992)

Crystal Structure of a Src-Homology 3 (SH3) Domain

Nature (1992)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	1

space_group	P 1
int_tables_number	1
crystal_system	—

description	ABL TYROSINE KINASE
formula_weight	6637.3 kDa
ec_number	2.7.1.112
mutation	N64S, N120S
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	17340

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli
