1azf
CHICKEN EGG WHITE LYSOZYME CRYSTAL GROWN IN BROMIDE SOLUTION

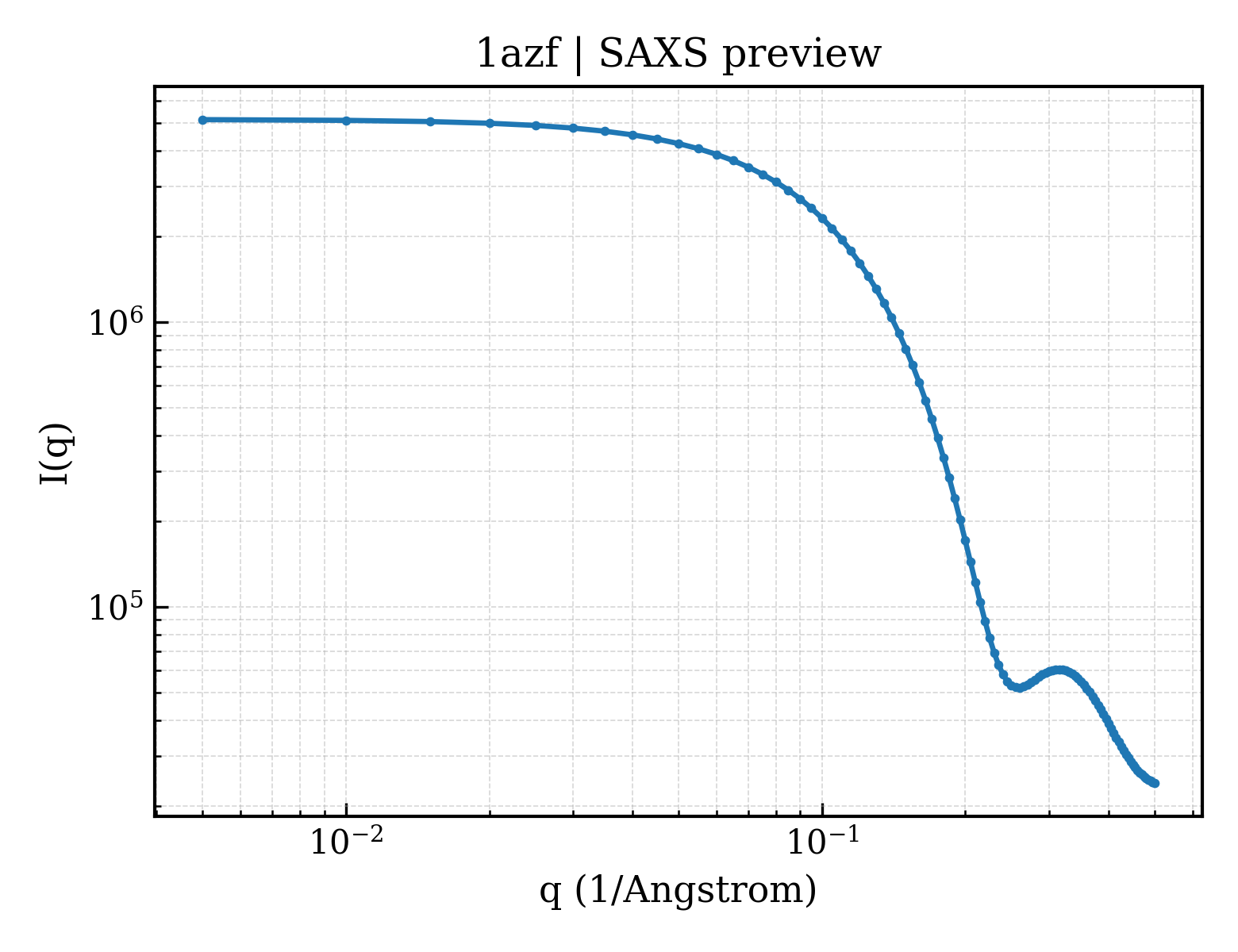

SAXS Profile

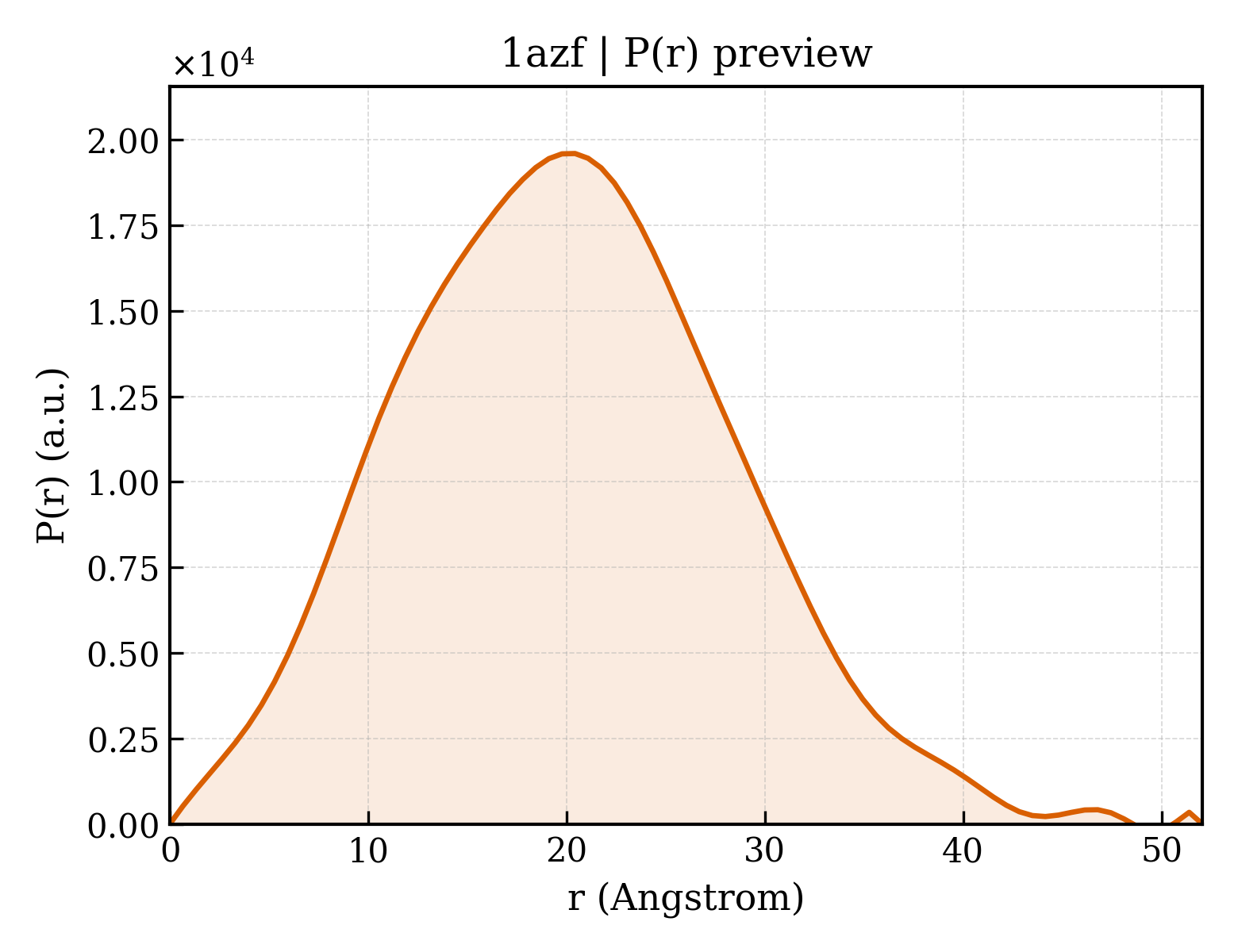

P(r) Distribution
1. Structure Basics
| entry_id | 1azf |
| deposition_date | 1997-11-17 |
| title | CHICKEN EGG WHITE LYSOZYME CRYSTAL GROWN IN BROMIDE SOLUTION |
| keywords | HYDROLASE, O-GLYCOSYL HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.36 Å |
| rg_electron | 14.04 Å |
| i0 | 5161220.00 |
| molecular_weight | 14641.0 kDa |
| excluded_volume | 17543 ų |
| envelope_volume | 19646 ų |
| shell_volume | 12046 ų |
| envelope_diameter | 53.8 Å |
| shell_rg | 19.66 Å |
| envelope_rg | 14.35 Å |
| shape_rg | 14.00 Å |
| total_rg | 15.15 Å |
| total_atoms | 1005 |
| n_residues | 129 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 52.1 Å |
| rg_real | 15.28 Å |
| rg_real_error | 0.37 Å |
| i0_real | 5.1610e+06 |
| i0_real_error | 5.5050e+04 |
| rg_reciprocal | 15.29 Å |
| i0_reciprocal | 5161000.0000 |
| total_estimate | 0.7857 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 20.4 Å |
| skewness | 0.239 |
| kurtosis | -0.162 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 865300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.739; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.000 |
