SAXSdb — 1b9a

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (PARVALBUMIN)

Cyprinus carpio

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–108	Mutation：D51A, F102W	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；pH 7.0	Resolution 2.00 Å R-free 0.290

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1B9A	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B8C PARVALBUMIN Deposited 1999-01-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–108（108 aa） Chain B 1–108（108 aa）	Mutation：D51A, E101D, F102W Mutation：D51A, E101D, F102W	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；CRYSTALLIZATION CONDITIONS: 40% PEG 4000, 200 MM MGCL2, 50 M PH 7. THE CRYSTALS WERE GROWN AT 4 DEGREES C., pH 7.0	Resolution 2.00 Å R-free 0.300
1B8L Calcium-bound D51A/E101D/F102W Triple Mutant of Beta Carp Parvalbumin Deposited 1999-02-01	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–108（108 aa）	Mutation：D51A, E101D, F102W	CO3 CARBONATE ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.9；CRYSTALLIZATION CONDITIONS 40% PEG 4000, 50 MM CACL2, 50 M PH 7.0, 4 DEGREES C, pH 6.9	Resolution 1.70 Å R-free 0.227
1B8R PARVALBUMIN Deposited 1999-02-02	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–108（108 aa）	Mutation：F102W	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；CRYSTALLIZATION CONDITIONS: PH 5.0 - 5.5, 3.1 - 3.2 M AMMONIUM SULFATE 0.05 - 0.10 M CACL2, ROOM TEMPERATURE, pH 7.0	Resolution 1.90 Å R-free 0.270
1CDP RESTRAINED LEAST SQUARES REFINEMENT OF NATIVE (CALCIUM) AND CADMIUM-SUBSTITUTED CARP PARVALBUMIN USING X-RAY CRYSTALLOGRAPHIC DATA AT 1.6-ANGSTROMS RESOLUTION Deposited 1990-01-24	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–108（108 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CD CADMIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.60 Å
4CPV REFINED CRYSTAL STRUCTURE OF CALCIUM-LIGANDED CARP PARVALBUMIN 4.25 AT 1.5-ANGSTROMS RESOLUTION Deposited 1989-10-18	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–108（108 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.50 Å
5CPV RESTRAINED LEAST SQUARES REFINEMENT OF NATIVE (CALCIUM) AND CADMIUM-SUBSTITUTED CARP PARVALBUMIN USING X-RAY CRYSTALLOGRAPHIC DATA AT 1.6-ANGSTROMS RESOLUTION Deposited 1990-01-24	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–108（108 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.60 Å

6 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PRVB_CYPCA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–108； UniProt 1–108

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1b9a
Deposition date deposition_date	1999-02-10
Structure title title	PARVALBUMIN (MUTATION;D51A, F102W)
Keywords keywords	CALCIUM BINDING PROTEIN, EF-HAND PROTEINS, PARVALBUMIN, CALCIUM-BINDING; CALCIUM BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.20 Å
Radius of gyration Rg (electron density) rg_electron	12.58 Å
Forward intensity I(0) i0	2694170.00
Molecular weight molecular_weight	11506.0 kDa
Excluded volume excluded_volume	14467 Å³
Envelope volume envelope_volume	15635 Å³
Hydration-shell volume shell_volume	10656 Å³
Envelope diameter envelope_diameter	39.2 Å
Shell Rg shell_rg	18.24 Å
Envelope Rg envelope_rg	12.74 Å
Shape Rg shape_rg	12.53 Å
Total Rg total_rg	14.03 Å
Total atoms total_atoms	809
Residues n_residues	108
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

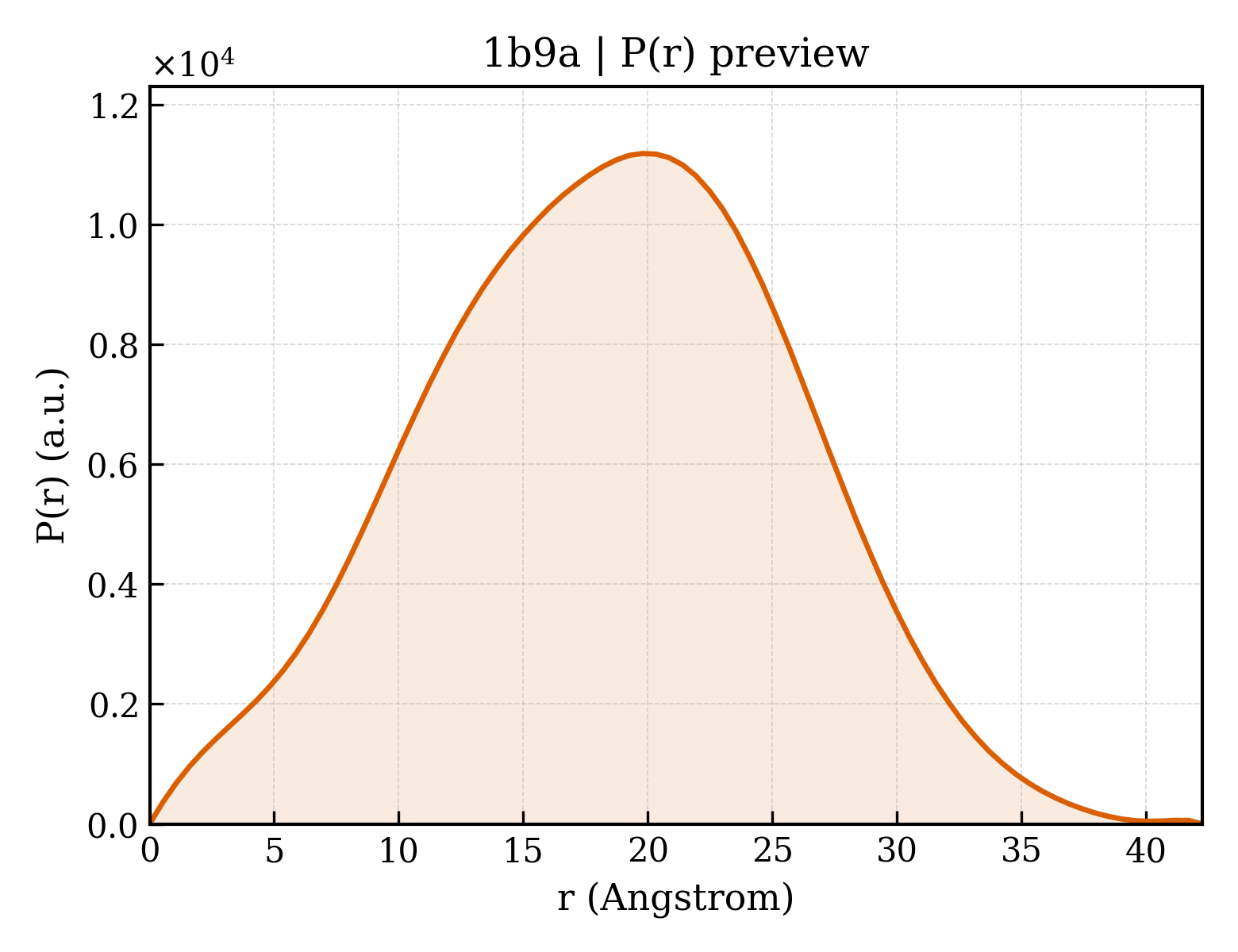

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	42.3 Å
Rg (real space) rg_real	14.06 Å
Rg uncertainty (real space) rg_real_error	0.18 Å
I(0) (real space) i0_real	2.6940e+06
I(0) uncertainty (real space) i0_real_error	2.5380e+04
Rg (reciprocal space) rg_reciprocal	14.07 Å
I(0) (reciprocal space) i0_reciprocal	2694000.0000
Solution quality estimate total_estimate	0.9000
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.8 Å
Skewness Skewness skewness	-0.027
Kurtosis Kurtosis kurtosis	-0.410
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	309600.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.909; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.997

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	PROTEIN (PARVALBUMIN)
Molecular weight formula_weight	11445.8 kDa
Mutation mutation	D51A, F102W
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	982

AFAGVLNDADIAAALEACKAADSFNHKAFFAKVGLTSKSADDVKKAFAIIAQDKSGFIEEDELKLFLQNFKADARALTDGETKTFLKAGDSDGDGKIGVDEWTALVKA

来源 Source

来源生物 organism	Cyprinus carpio
通用名 common_name	common carp
NCBI Class编号 ncbi_taxonomy_id	7962
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	173

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1b9aa_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.4 — Parvalbumin

CATH v4.4 (1 domains)

Domain ID domain_id	1b9aA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

▶

8. Citations (2)

▶

Unit-cell length a length_a	33.424 Å
Unit-cell length b length_b	33.424 Å
Unit-cell length c length_c	298.186 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65 2 2
Space-group number int_tables_number	179
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	—
R_work r_work	0.2096
R_free r_free	0.2902

fit	/app/data/saxs_computation/b9/1b9a/1b9a.fit
pddf	/app/data/pr_computation/b9/1b9a/1b9a.pr.out
profile	/app/data/saxs_computation/b9/1b9a/1b9a.dat
