1bm7
HUMAN TRANSTHYRETIN (PREALBUMIN) COMPLEX WITH FLUFENAMIC ACID (2-[[3-(TRIFLUOROMETHYL)PHENYL]AMINO] BENZOIC ACID)
SAXS Profile

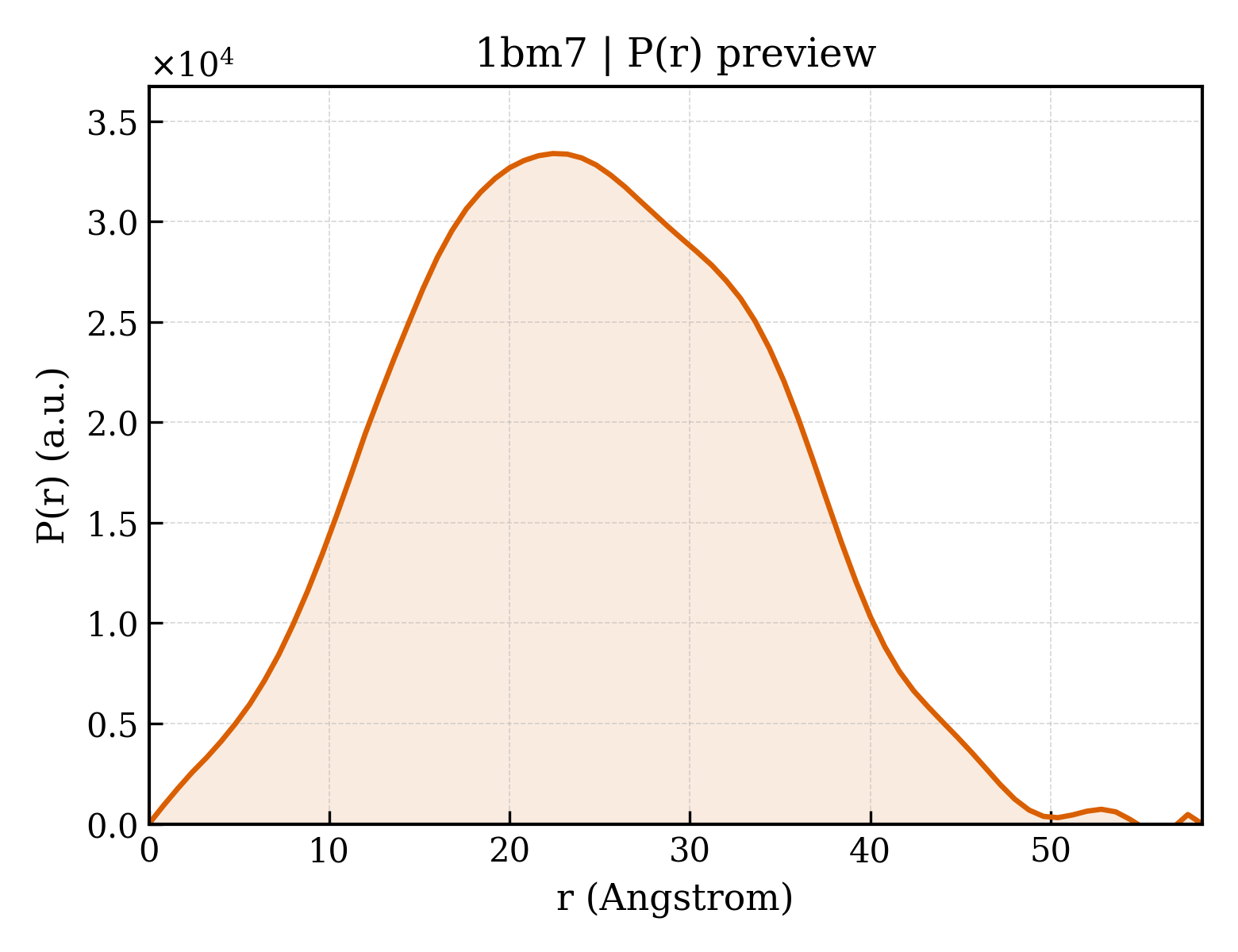

P(r) Distribution
1. Structure Basics
| entry_id | 1bm7 |
| deposition_date | 1998-07-29 |
| title | HUMAN TRANSTHYRETIN (PREALBUMIN) COMPLEX WITH FLUFENAMIC ACID (2-[[3-(TRIFLUOROMETHYL)PHENYL]AMINO] BENZOIC ACID) |
| keywords | THYROXINE TRANSPORT, SIGNALING PROTEIN; SIGNALING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.55 Å |
| rg_electron | 17.24 Å |
| i0 | 11191600.00 |
| molecular_weight | 25475.0 kDa |
| excluded_volume | 32021 ų |
| envelope_volume | 35416 ų |
| shell_volume | 17260 ų |
| envelope_diameter | 59.4 Å |
| shell_rg | 23.29 Å |
| envelope_rg | 17.30 Å |
| shape_rg | 17.20 Å |
| total_rg | 18.29 Å |
| total_atoms | 1802 |
| n_residues | 228 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 58.4 Å |
| rg_real | 18.43 Å |
| rg_real_error | 0.38 Å |
| i0_real | 1.1190e+07 |
| i0_real_error | 1.4160e+05 |
| rg_reciprocal | 18.45 Å |
| i0_reciprocal | 11190000.0000 |
| total_estimate | 0.8136 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 22.4 Å |
| skewness | 0.097 |
| kurtosis | -0.496 |
| angular_range | — – 0.4300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2414000.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.863; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.000 |
