Bombyx mori
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | BOMBYXIN-II,BOMBYXIN A-6 × 1 （P26729） | Consistent with protein count |
| UniProt name | BXA2_BOMMO |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–20； UniProt 70–89 |
Bombyx mori
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | BOMBYXIN-II,BOMBYXIN A-2 × 1 （P15411） | Consistent with protein count |
| UniProt name | BXA6_BOMMO |
| Isoform | — |
| PDB entities | 2 |
| Chains and sequence ranges | Author chain B； PDBConstruct 2–28； UniProt 20–47 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1bom |
| Deposition date deposition_date | 1994-07-21 |
| Structure title title | THREE-DIMENSIONAL STRUCTURE OF BOMBYXIN-II, AN INSULIN-RELATED BRAIN-SECRETORY PEPTIDE OF THE SILKMOTH BOMBYX MORI: COMPARISON WITH INSULIN AND RELAXIN |
| Keywords keywords | INSULIN-LIKE BRAIN-SECRETORY PEPTIDE; INSULIN-LIKE BRAIN-SECRETORY PEPTIDE |
| Experimental Method method | SOLUTION NMR |

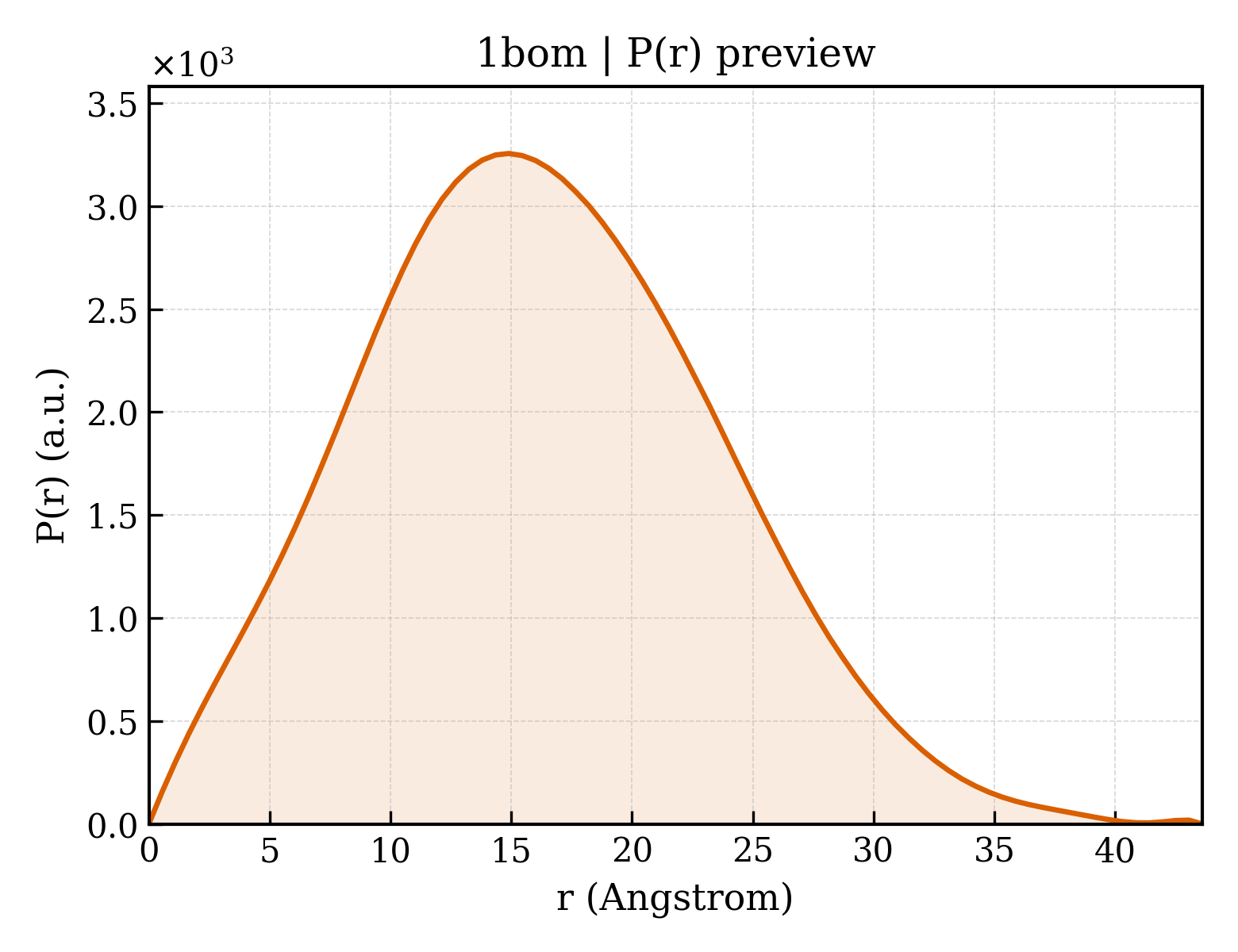

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 12.59 Å |
| Rg (electron density) | 11.26 Å |
| Total Rg | 12.43 Å |
| Atom count | 714 |
| Residues | 47 |
| Excluded volume | 6483 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1bom.1 |
| Class class | g — Small proteins |
| Fold Fold fold | g.1 — Insulin-like |
| Superfamily Superfamily superfamily | g.1.1 — Insulin-like |
| Family Family family | g.1.1.1 — Insulin-like |
