1bph

CONFORMATIONAL CHANGES IN CUBIC INSULIN CRYSTALS IN THE PH RANGE 7-11

Method: X-RAY DIFFRACTION D_max: 37.3 Å Quality: GOOD

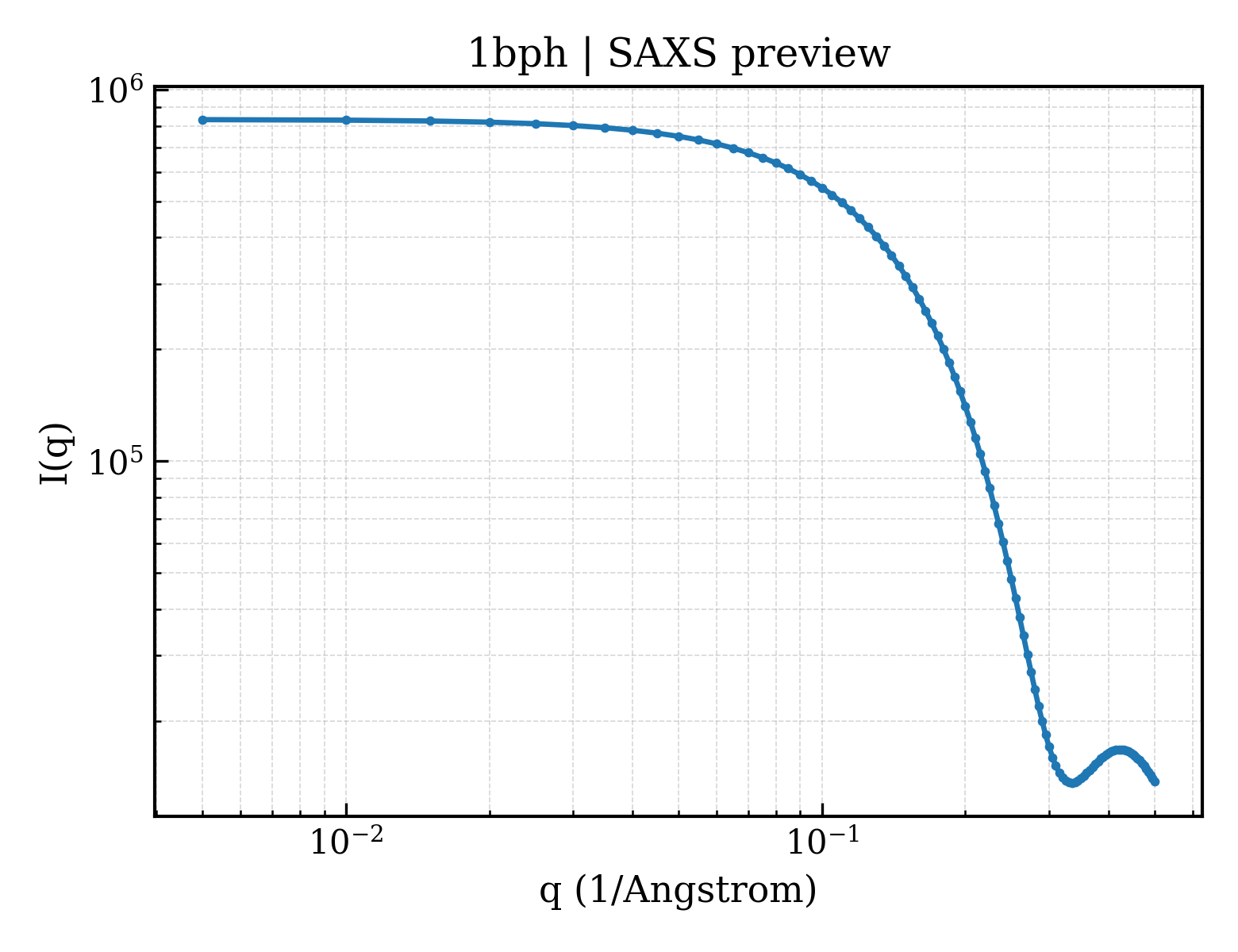

SAXS Profile

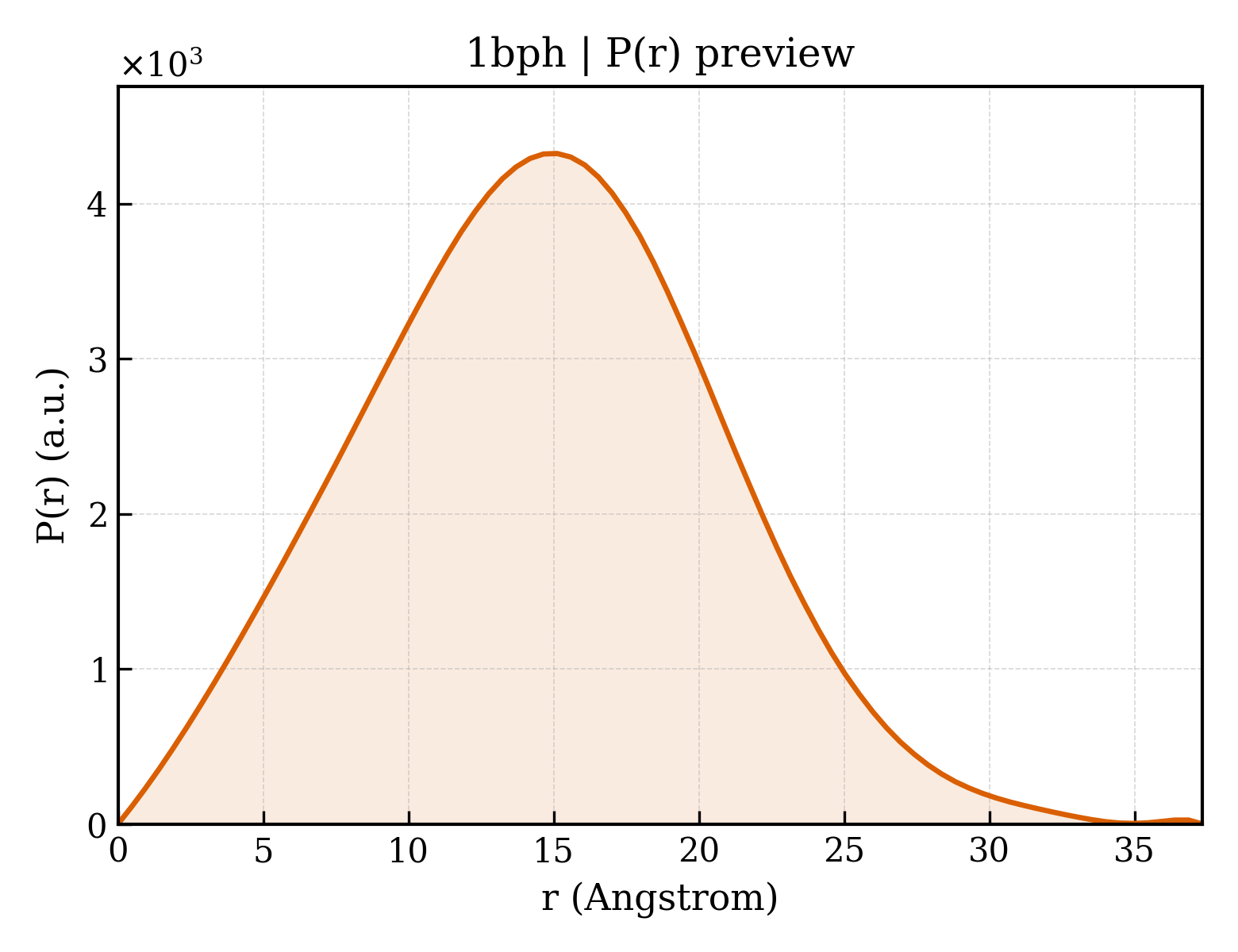

P(r) Distribution

▼

1. Structure Basics

entry_id	1bph
deposition_date	1992-10-30
title	CONFORMATIONAL CHANGES IN CUBIC INSULIN CRYSTALS IN THE PH RANGE 7-11
keywords	HORMONE; HORMONE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	11.24 Å
rg_electron	9.79 Å
i0	831761.00
molecular_weight	5800.0 kDa
excluded_volume	7160 Å³
envelope_volume	7648 Å³
shell_volume	6941 Å³
envelope_diameter	34.9 Å
shell_rg	14.94 Å
envelope_rg	10.13 Å
shape_rg	9.81 Å
total_rg	11.23 Å
total_atoms	401
n_residues	51
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	37.3 Å
rg_real	11.18 Å
rg_real_error	0.27 Å
i0_real	8.3180e+05
i0_real_error	9.2080e+03
rg_reciprocal	11.18 Å
i0_reciprocal	831800.0000
total_estimate	0.8747
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	15.1 Å
skewness	0.137
kurtosis	-0.252
angular_range	— – 0.5000 Å⁻¹
current_alpha	0.0000
highest_alpha	86830.0000
n_real_points	80
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.801; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.964

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	INSULIN A CHAIN (PH 9)
formula_weight	2339.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	499

GIVEQCCASVCSLYQLENYCN

Source

organism	Bos taurus
common_name	cattle
ncbi_taxonomy_id	9913

Entity 2 polymer

description	INSULIN B CHAIN (PH 9)
formula_weight	3403.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

FVNQHLCGSHLVEALYLVCGERGFFYTPKA

Source

organism	Bos taurus
common_name	cattle
ncbi_taxonomy_id	9913

Entity 3 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	1,2-DICHLOROETHANE
formula_weight	99.0 kDa
src_method	syn
entity_count	1

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	55

▶

6. Citations (6)

▶

length_a	78.900 Å
length_b	78.900 Å
length_c	78.900 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	24

space_group	I 21 3
int_tables_number	199
crystal_system	—

resolution	2.000 Å
resolution_low	— Å
r_factor	0.1600
r_work	—
r_free	—

fit	/app/data/saxs_computation/bp/1bph/1bph.fit
pddf	/app/data/pr_computation/bp/1bph/1bph.pr.out
profile	/app/data/saxs_computation/bp/1bph/1bph.dat
