1bsx

STRUCTURE AND SPECIFICITY OF NUCLEAR RECEPTOR-COACTIVATOR INTERACTIONS

Method: X-RAY DIFFRACTION D_max: 124.8 Å Quality: REASONABLE

SAXS Profile

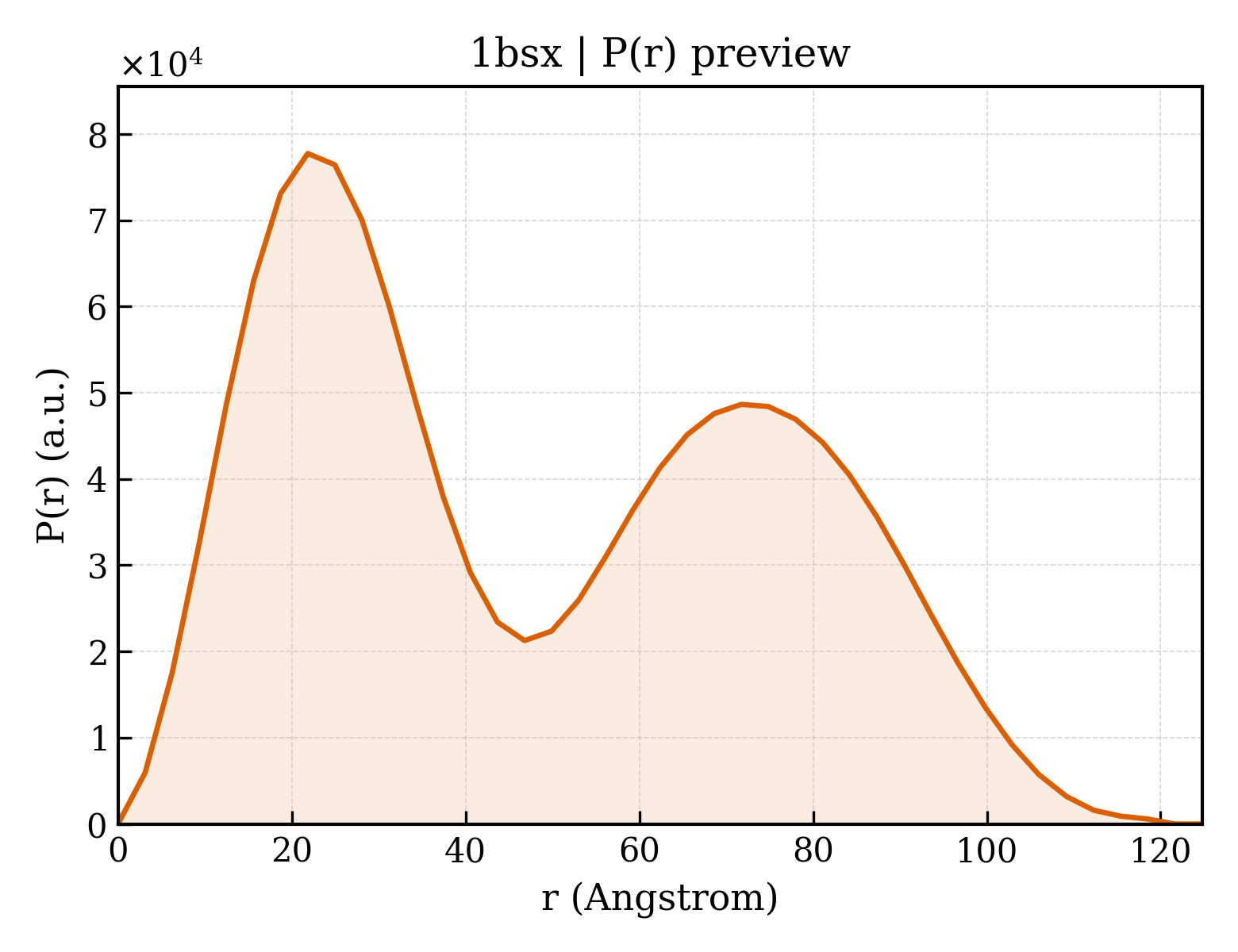

P(r) Distribution

▼

1. Structure Basics

entry_id	1bsx
deposition_date	1998-08-31
title	STRUCTURE AND SPECIFICITY OF NUCLEAR RECEPTOR-COACTIVATOR INTERACTIONS
keywords	NUCLEAR RECEPTORS, COACTIVATORS, GRIP1, SPECIFICITY INTERACTION SITE, HORMONE-GROWTH FACTOR COMPLEX; HORMONE/GROWTH FACTOR
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	39.03 Å
rg_electron	39.36 Å
i0	51249500.00
molecular_weight	58180.0 kDa
excluded_volume	72549 Å³
envelope_volume	100280 Å³
shell_volume	21507 Å³
envelope_diameter	125.6 Å
shell_rg	45.04 Å
envelope_rg	37.72 Å
shape_rg	39.42 Å
total_rg	39.48 Å
total_atoms	4040
n_residues	510
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	124.8 Å
rg_real	39.58 Å
rg_real_error	1.75 Å
i0_real	5.1250e+07
i0_real_error	1.0330e+06
rg_reciprocal	39.26 Å
i0_reciprocal	51230000.0000
total_estimate	0.6069
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	21.8 Å
skewness	0.258
kurtosis	-1.228
angular_range	— – 0.2000 Å⁻¹
current_alpha	0.0000
highest_alpha	5283000.0000
n_real_points	41
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.043; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.086; Smooth: 0.672

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	PROTEIN (THYROID HORMONE RECEPTOR BETA)
formula_weight	29411.0 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	4040

EELQKSIGHKPEPTDEEWELIKTVTEAHVATNAQGSHWKQKRKFLPEDIGQAPIVNAPEGGKVDLEAFSHFTKIITPAITRVVDFAKKLPMFCELPCEDQIILLKGCCMEIMSLRAAVRYDPESETLTLNGEMAVTRGQLKNGGLGVVSDAIFDLGMSLSSFNLDDTEVALLQAVLLMSSDRPGLACVERIEKYQDSFLLAFEHYINYRKHHVTHFWPKLLMKVTDLRMIGACHASRFLHMKVECPTELFPPLFLEVFED

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

description	PROTEIN (GRIP1)
formula_weight	1507.7 kDa
src_method	syn
entity_count	2

Polymer

type	polypeptide(L)
strand_id	X,Y

GHKILHRLLQDSS

Entity 3 non-polymer

description	3,5,3'TRIIODOTHYRONINE
formula_weight	651.0 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

length_a	95.200 Å
length_b	95.200 Å
length_c	137.600 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

space_group	P 31 2 1
int_tables_number	152
crystal_system	—

resolution	3.700 Å
resolution_low	100.000 Å
r_factor	0.2490
r_work	0.2490
r_free	0.2990

fit	/app/data/saxs_computation/bs/1bsx/1bsx.fit
pddf	/app/data/pr_computation/bs/1bsx/1bsx.pr.out
profile	/app/data/saxs_computation/bs/1bsx/1bsx.dat
