[D-ALAB26]-DES(B27-B30)-INSULIN-B26-AMIDE A SUPERPOTENT SINGLE-REPLACEMENT INSULIN ANALOGUE, NMR, MINIMIZED AVERAGE STRUCTURE

Method: SOLUTION NMR D_max: 39.0 Å Quality: GOOD

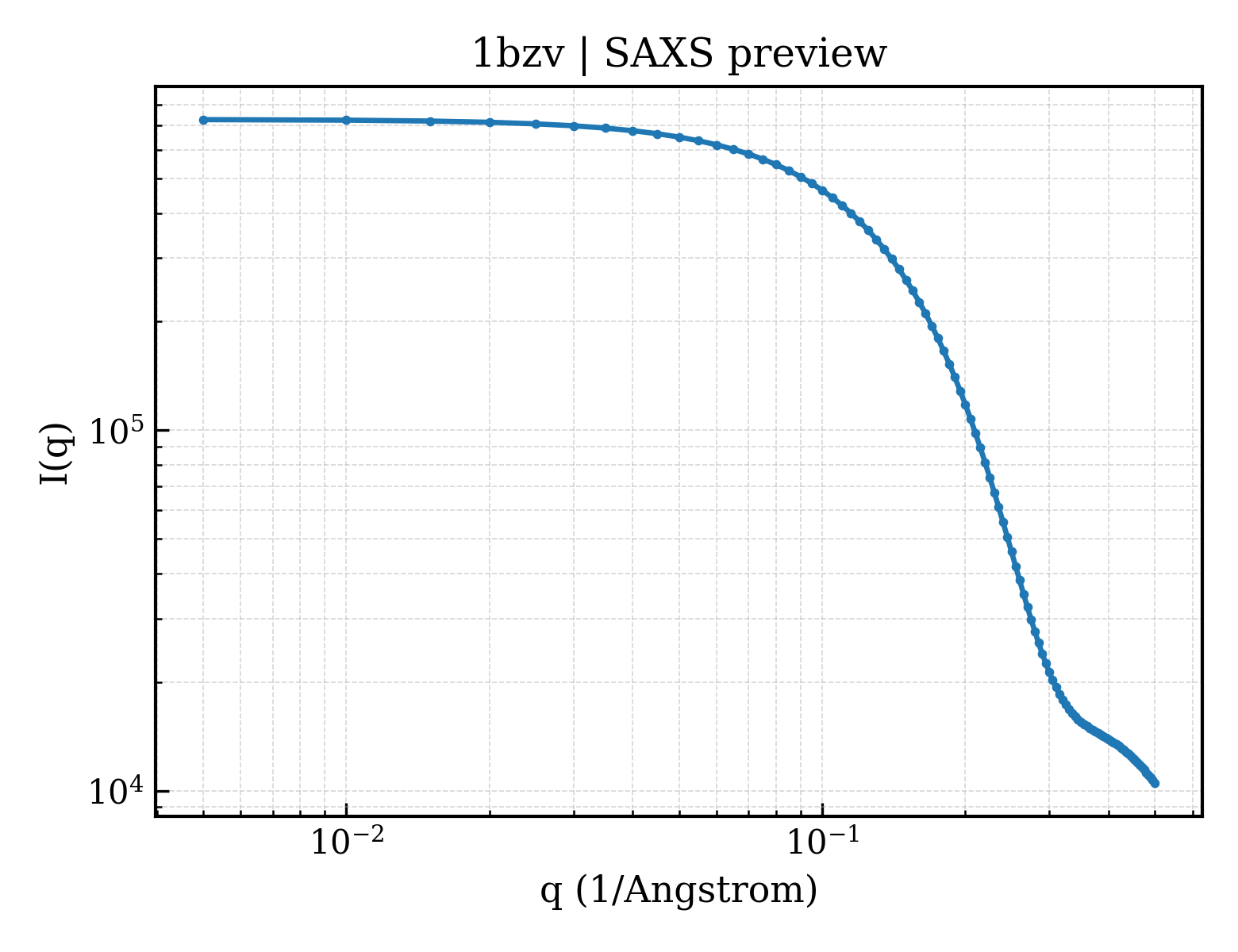

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1bzv
deposition_date	1998-11-04
title	[D-ALAB26]-DES(B27-B30)-INSULIN-B26-AMIDE A SUPERPOTENT SINGLE-REPLACEMENT INSULIN ANALOGUE, NMR, MINIMIZED AVERAGE STRUCTURE
keywords	INSULIN, SUPERPOTENCY, HORMONE; HORMONE
method	SOLUTION NMR

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	11.63 Å
rg_electron	10.14 Å
i0	727779.00
molecular_weight	5258.0 kDa
excluded_volume	6503 Å³
envelope_volume	7620 Å³
shell_volume	6784 Å³
envelope_diameter	35.8 Å
shell_rg	15.05 Å
envelope_rg	10.53 Å
shape_rg	10.14 Å
total_rg	11.64 Å
total_atoms	366
n_residues	46
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	39.0 Å
rg_real	11.60 Å
rg_real_error	0.29 Å
i0_real	7.2780e+05
i0_real_error	7.6370e+03
rg_reciprocal	11.60 Å
i0_reciprocal	727800.0000
total_estimate	0.8874
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	14.3 Å
skewness	0.231
kurtosis	-0.284
angular_range	— – 0.5000 Å⁻¹
current_alpha	0.0000
highest_alpha	78590.0000
n_real_points	80
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.858; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.972

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	1

space_group	P 1
int_tables_number	1
crystal_system	—

description	INSULIN
formula_weight	2383.7 kDa
mutation	CHAIN B, TYR(B26)D-ALA
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	366

description	INSULIN
formula_weight	2913.4 kDa
mutation	CHAIN B, TYR(B26)D-ALA
src_method	man
entity_count	1

[D-ALAB26]-DES(B27-B30)-INSULIN-B26-AMIDE A SUPERPOTENT SINGLE-REPLACEMENT INSULIN ANALOGUE, NMR, MINIMIZED AVERAGE STRUCTURE

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Entity 2 polymer

Polymer

Source

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/bz/1bzv/1bzv.fit
pddf	/app/data/pr_computation/bz/1bzv/1bzv.pr.out
profile	/app/data/saxs_computation/bz/1bzv/1bzv.dat

organism	synthetic construct
ncbi_taxonomy_id	32630
