1c15
SOLUTION STRUCTURE OF APAF-1 CARD
SAXS Profile

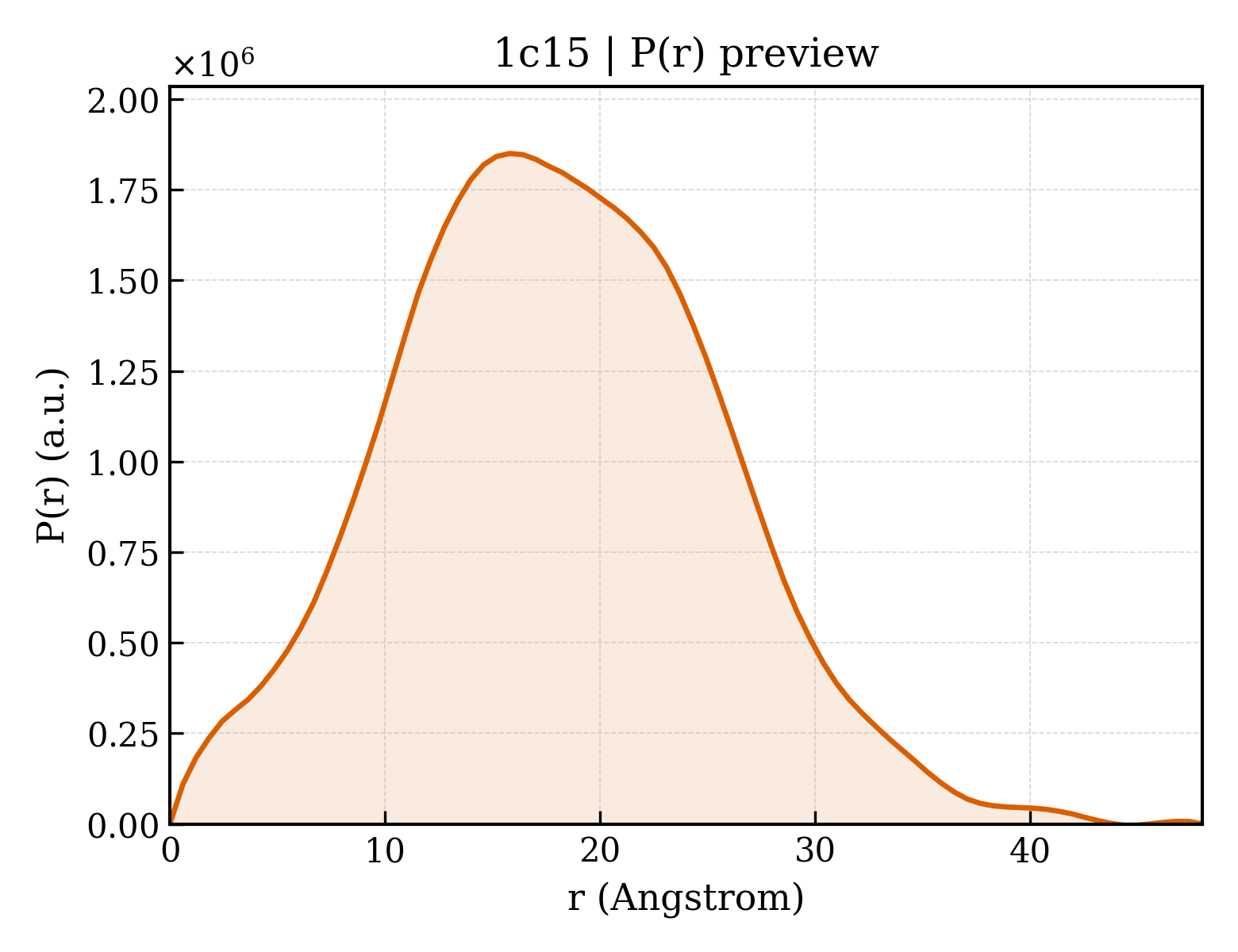

P(r) Distribution
1. Structure Basics
| entry_id | 1c15 |
| deposition_date | 1999-07-20 |
| title | SOLUTION STRUCTURE OF APAF-1 CARD |
| keywords | PROGRAMMED CELL DEATH, APAF, CARD, DED, DD, CASPASE RECRUITMENT DOMAIN, HOMOPHILIC INTERACTION, APOPTOSIS; APOPTOSIS |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.81 Å |
| rg_electron | 13.30 Å |
| i0 | 452690000.00 |
| molecular_weight | 177290.0 kDa |
| excluded_volume | 221070 ų |
| envelope_volume | 22868 ų |
| shell_volume | 13253 ų |
| envelope_diameter | 52.0 Å |
| shell_rg | 20.52 Å |
| envelope_rg | 15.11 Å |
| shape_rg | 13.28 Å |
| total_rg | 13.52 Å |
| total_atoms | 24848 |
| n_residues | 1552 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 48.0 Å |
| rg_real | 13.75 Å |
| rg_real_error | 0.42 Å |
| i0_real | 4.5270e+08 |
| i0_real_error | 5.5510e+06 |
| rg_reciprocal | 13.75 Å |
| i0_reciprocal | 452700000.0000 |
| total_estimate | 0.8387 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.8 Å |
| skewness | 0.186 |
| kurtosis | -0.147 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 206800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.649; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.963 |
