SAXSdb — 1c3e

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GLYCINAMIDE RIBONUCLEOTIDE TRANSFORMYLASE

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain not uniquely mapped； UniProt —–— Chain A； UniProt 1–209	Not recorded	NHR 2-{4-[2-(2-AMINO-4-HYDROXY-QUINAZOLIN-6-YL)-1-CARBOXY-ETHYL]-BENZOYLAMINO}-PENTANEDIOIC ACID × 2 GAR GLYCINAMIDE RIBONUCLEOTIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.2；295 K；PEG 3350, Imidazole malate, calcium chloride, MPD, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 22.0K	Resolution 2.10 Å R-free 0.263

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1C3E	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1C2T NEW INSIGHTS INTO INHIBITOR DESIGN FROM THE CRYSTAL STRUCTURE AND NMR STUDIES OF E. COLI GAR TRANSFORMYLASE IN COMPLEX WITH BETA-GAR AND 10-FORMYL-5,8,10-TRIDEAZAFOLIC ACID. Deposited 1999-07-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–212（212 aa） Chain B 1–212（212 aa）	Not recorded	NHS 10-FORMYL-5,8,10-TRIDEAZAFOLIC ACID × 2 GAR GLYCINAMIDE RIBONUCLEOTIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；295 K；PEG 3350, IMIDAZOLE MALATE, CALCIUM CHLORIDE, MPD, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 22.0K, temperature 295K	Resolution 2.10 Å R-free 0.265
1CDD STRUCTURES OF APO AND COMPLEXED ESCHERICHIA COLI GLYCINAMIDE RIBONUCLEOTIDE TRANSFORMYLASE Deposited 1992-05-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–212（212 aa） Chain B 1–212（212 aa）	Not recorded	PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
1CDD STRUCTURES OF APO AND COMPLEXED ESCHERICHIA COLI GLYCINAMIDE RIBONUCLEOTIDE TRANSFORMYLASE Deposited 1992-05-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–212（212 aa） Chain B 1–212（212 aa）	Not recorded	PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
1CDE STRUCTURES OF APO AND COMPLEXED ESCHERICHIA COLI GLYCINAMIDE RIBONUCLEOTIDE TRANSFORMYLASE Deposited 1992-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–212（212 aa）	Not recorded	GAR GLYCINAMIDE RIBONUCLEOTIDE × 1 DZF 5-DEAZAFOLIC ACID × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
1CDE STRUCTURES OF APO AND COMPLEXED ESCHERICHIA COLI GLYCINAMIDE RIBONUCLEOTIDE TRANSFORMYLASE Deposited 1992-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–212（212 aa）	Not recorded	GAR GLYCINAMIDE RIBONUCLEOTIDE × 1 DZF 5-DEAZAFOLIC ACID × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
1CDE STRUCTURES OF APO AND COMPLEXED ESCHERICHIA COLI GLYCINAMIDE RIBONUCLEOTIDE TRANSFORMYLASE Deposited 1992-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–212（212 aa）	Not recorded	GAR GLYCINAMIDE RIBONUCLEOTIDE × 1 DZF 5-DEAZAFOLIC ACID × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
1CDE STRUCTURES OF APO AND COMPLEXED ESCHERICHIA COLI GLYCINAMIDE RIBONUCLEOTIDE TRANSFORMYLASE Deposited 1992-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–212（212 aa）	Not recorded	GAR GLYCINAMIDE RIBONUCLEOTIDE × 1 DZF 5-DEAZAFOLIC ACID × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
1GAR TOWARDS STRUCTURE-BASED DRUG DESIGN: CRYSTAL STRUCTURE OF A MULTISUBSTRATE ADDUCT COMPLEX OF GLYCINAMIDE RIBONUCLEOTIDE TRANSFORMYLASE AT 1.96 ANGSTROMS RESOLUTION Deposited 1994-12-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–212（212 aa） Chain B 1–212（212 aa）	Not recorded	U89 N-[4-[[3-(2,4-DIAMINO-1,6-DIHYDRO-6-OXO-4-PYRIMIDINYL)-PROPYL]-[2-((2-OXO-2-((4-PHOSPHORIBOXY)-BUTYL)-AMINO)-ETHYL)-THIO-ACETYL]-AMINO]BENZOYL]-1-GLUTAMIC ACID × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.96 Å R-free 0.290
1GRC CRYSTAL STRUCTURE OF GLYCINAMIDE RIBONUCLEOTIDE TRANSFORMYLASE FROM ESCHERICHIA COLI AT 3.0 ANGSTROMS RESOLUTION: A TARGET ENZYME FOR CHEMOTHERAPY Deposited 1992-07-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–212（212 aa） Chain B 1–212（212 aa）	Not recorded	PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å
1JKX Unexpected formation of an epoxide-derived multisubstrate adduct inhibitor on the active site of GAR transformylase Deposited 2001-07-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–212（212 aa） Fragment：TRANSFERASE Chain B 1–212（212 aa） Fragment：TRANSFERASE	Not recorded	138 N-[5'-O-PHOSPHONO-RIBOFURANOSYL]-2-[2-HYDROXY-2-[4-[GLUTAMIC ACID]-N-CARBONYLPHENYL]-3-[2-AMINO-4-HYDROXY-QUINAZOLIN-6-YL]-PROPANYLAMINO]-ACETAMIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；295 K；PEG 3350, CaCl2, MPD, imidazole malate, PH 7.4, VAPOR DIFFUSION, SITTING DROP at 295K	Resolution 1.60 Å R-free 0.243
1JKX Unexpected formation of an epoxide-derived multisubstrate adduct inhibitor on the active site of GAR transformylase Deposited 2001-07-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–212（212 aa） Fragment：TRANSFERASE Chain D 1–212（212 aa） Fragment：TRANSFERASE	Not recorded	138 N-[5'-O-PHOSPHONO-RIBOFURANOSYL]-2-[2-HYDROXY-2-[4-[GLUTAMIC ACID]-N-CARBONYLPHENYL]-3-[2-AMINO-4-HYDROXY-QUINAZOLIN-6-YL]-PROPANYLAMINO]-ACETAMIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；295 K；PEG 3350, CaCl2, MPD, imidazole malate, PH 7.4, VAPOR DIFFUSION, SITTING DROP at 295K	Resolution 1.60 Å R-free 0.243
2GAR A PH-DEPENDENT STABLIZATION OF AN ACTIVE SITE LOOP OBSERVED FROM LOW AND HIGH PH CRYSTAL STRUCTURES OF MUTANT MONOMERIC GLYCINAMIDE RIBONUCLEOTIDE TRANSFORMYLASE Deposited 1998-05-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–212（212 aa）	Mutation：E70A	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 3.5；CRYSTAL GREW FROM A SOLUTION OF 2%(V/V) 15% (W/V) PEG 1500, PH 3.5	Resolution 1.80 Å R-free 0.251
3GAR A PH-DEPENDENT STABLIZATION OF AN ACTIVE SITE LOOP OBSERVED FROM LOW AND HIGH PH CRYSTAL STRUCTURES OF MUTANT MONOMERIC GLYCINAMIDE RIBONUCLEOTIDE TRANSFORMYLASE Deposited 1998-05-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–212（212 aa）	Mutation：E70A	PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；CRYSTAL GREW FROM A SOLUTION OF 2%(V/V) PEG 400. 2.0M AMMONIUM SULFATE, 0.1M HEPES, PH 7.5	Resolution 1.90 Å R-free 0.274

8 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PUR3_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–209； UniProt 1–209

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1c3e
Deposition date deposition_date	1999-07-27
Structure title title	NEW INSIGHTS INTO INHIBITOR DESIGN FROM THE CRYSTAL STRUCTURE AND NMR STUDIES OF E. COLI GAR TRANSFORMYLATE IN COMPLEX WITH BETA-GAR AND 10-FORMYL-5,8,10-TRIDEAZAFOLIC ACID.
Keywords keywords	PURINE BIOSYNTHESIS, ANTI-CANCER AGENT, INHIBITOR COMPLEX, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	26.68 Å
Radius of gyration Rg (electron density) rg_electron	25.80 Å
Forward intensity I(0) i0	38561300.00
Molecular weight molecular_weight	47365.0 kDa
Excluded volume excluded_volume	58950 Å³
Envelope volume envelope_volume	71213 Å³
Hydration-shell volume shell_volume	23619 Å³
Envelope diameter envelope_diameter	88.4 Å
Shell Rg shell_rg	32.30 Å
Envelope Rg envelope_rg	25.62 Å
Shape Rg shape_rg	25.76 Å
Total Rg total_rg	26.62 Å
Total atoms total_atoms	3342
Residues n_residues	418
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

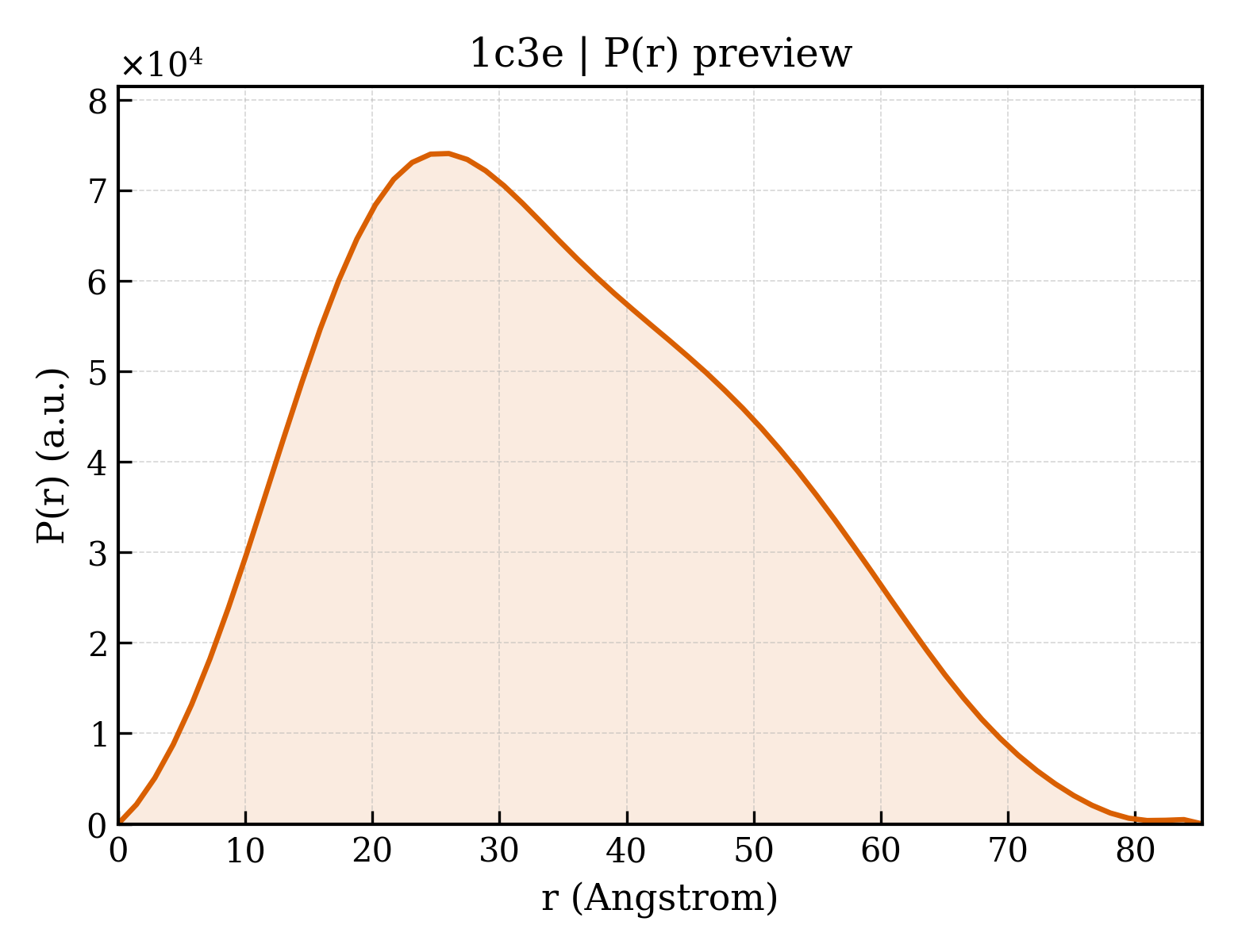

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	85.3 Å
Rg (real space) rg_real	26.75 Å
Rg uncertainty (real space) rg_real_error	0.74 Å
I(0) (real space) i0_real	3.8560e+07
I(0) uncertainty (real space) i0_real_error	5.9180e+05
Rg (reciprocal space) rg_reciprocal	26.73 Å
I(0) (reciprocal space) i0_reciprocal	38560000.0000
Solution quality estimate total_estimate	0.8932
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.0 Å
Skewness Skewness skewness	0.336
Kurtosis Kurtosis kurtosis	-0.592
Angular range angular_range	— – 0.2950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6544000.0000
Real-space data points n_real_points	60
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.916; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.907; Smooth: 0.951

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	GLYCINAMIDE RIBONUCLEOTIDE TRANSFORMYLASE
Molecular weight formula_weight	22951.0 kDa
EC 编号 ec_number	2.1.2.2
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3539

MNIVVLISGNGSNLQAIIDACKTNKIKGTVRAVFSNKADAFGLERARQAGIATHTLIASAFDSREAYDRELIHEIDMYAPDVVVLAGFMRILSPAFVSHYAGRLLNIHPSLLPKYPGLHTHRQALENGDEEHGTSVHFVTDELDGGPVILQAKVPVFAGDSEDDITARVQTQEHAIYPLVISWFADGRLKMHENAAWLDGQRLPPQGYA

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	2-{4-[2-(2-AMINO-4-HYDROXY-QUINAZOLIN-6-YL)-1-CARBOXY-ETHYL]-BENZOYLAMINO}-PENTANEDIOIC ACID
Molecular weight formula_weight	482.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	GLYCINAMIDE RIBONUCLEOTIDE
Molecular weight formula_weight	284.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	197

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1c3ea_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.65 — Formyltransferase
Superfamily Superfamily superfamily	c.65.1 — Formyltransferase
Family Family family	c.65.1.1 — Formyltransferase

Domain ID domain_id	d1c3eb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.65 — Formyltransferase
Superfamily Superfamily superfamily	c.65.1 — Formyltransferase
Family Family family	c.65.1.1 — Formyltransferase

CATH v4.4 (2 domains)

Domain ID domain_id	1c3eA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	170 — Formyl transferase, N-terminal domain

Domain ID domain_id	1c3eB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	170 — Formyl transferase, N-terminal domain

▶

8. Citations (3)

▶

Unit-cell length a length_a	40.250 Å
Unit-cell length b length_b	112.790 Å
Unit-cell length c length_c	46.960 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	101.50 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2270
R_work r_work	0.2270
R_free r_free	0.2630

fit	/app/data/saxs_computation/c3/1c3e/1c3e.fit
pddf	/app/data/pr_computation/c3/1c3e/1c3e.pr.out
profile	/app/data/saxs_computation/c3/1c3e/1c3e.dat
