1cdu
STRUCTURE OF T-CELL SURFACE GLYCOPROTEIN CD4 MUTANT WITH PHE 43 REPLACED BY VAL

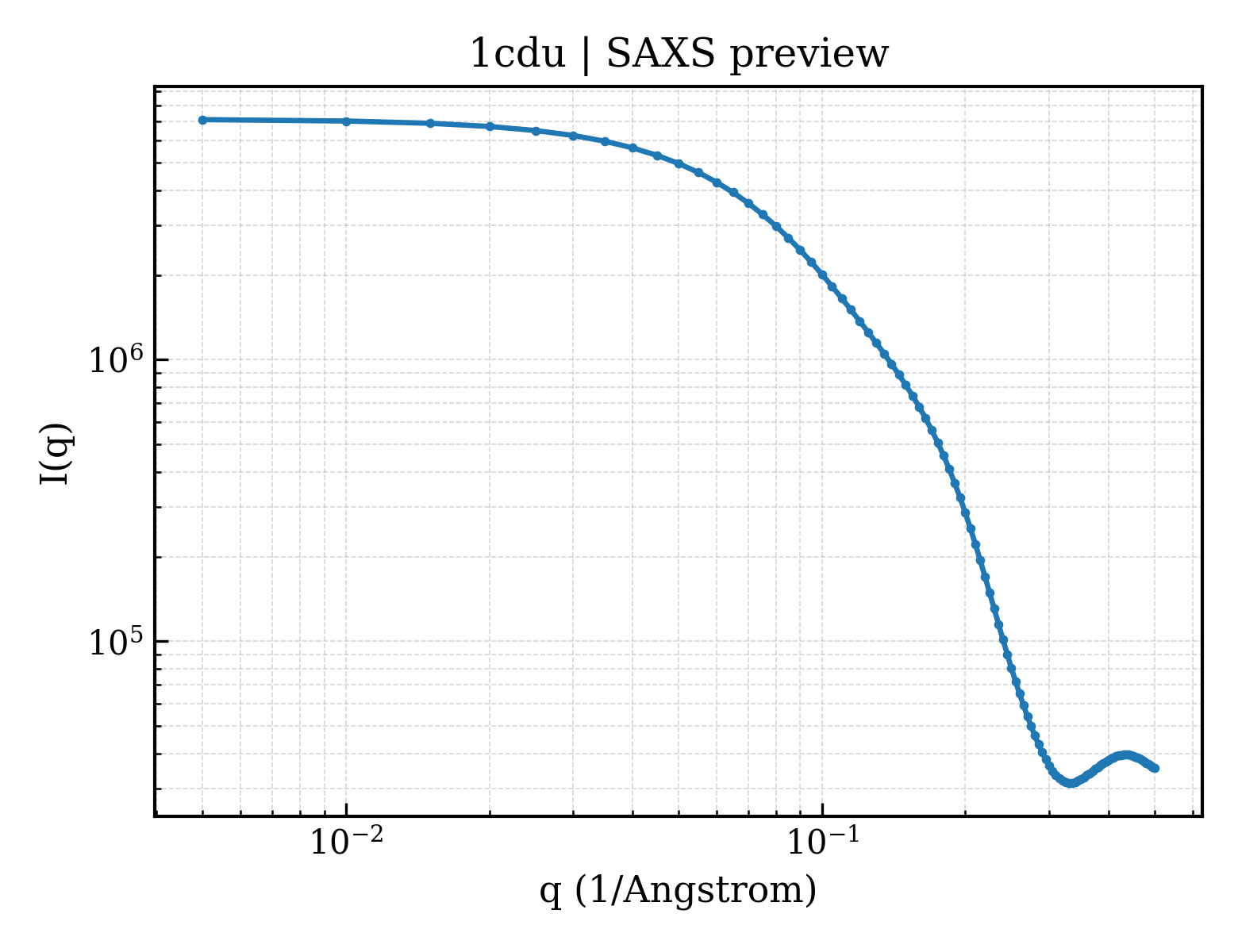

SAXS Profile

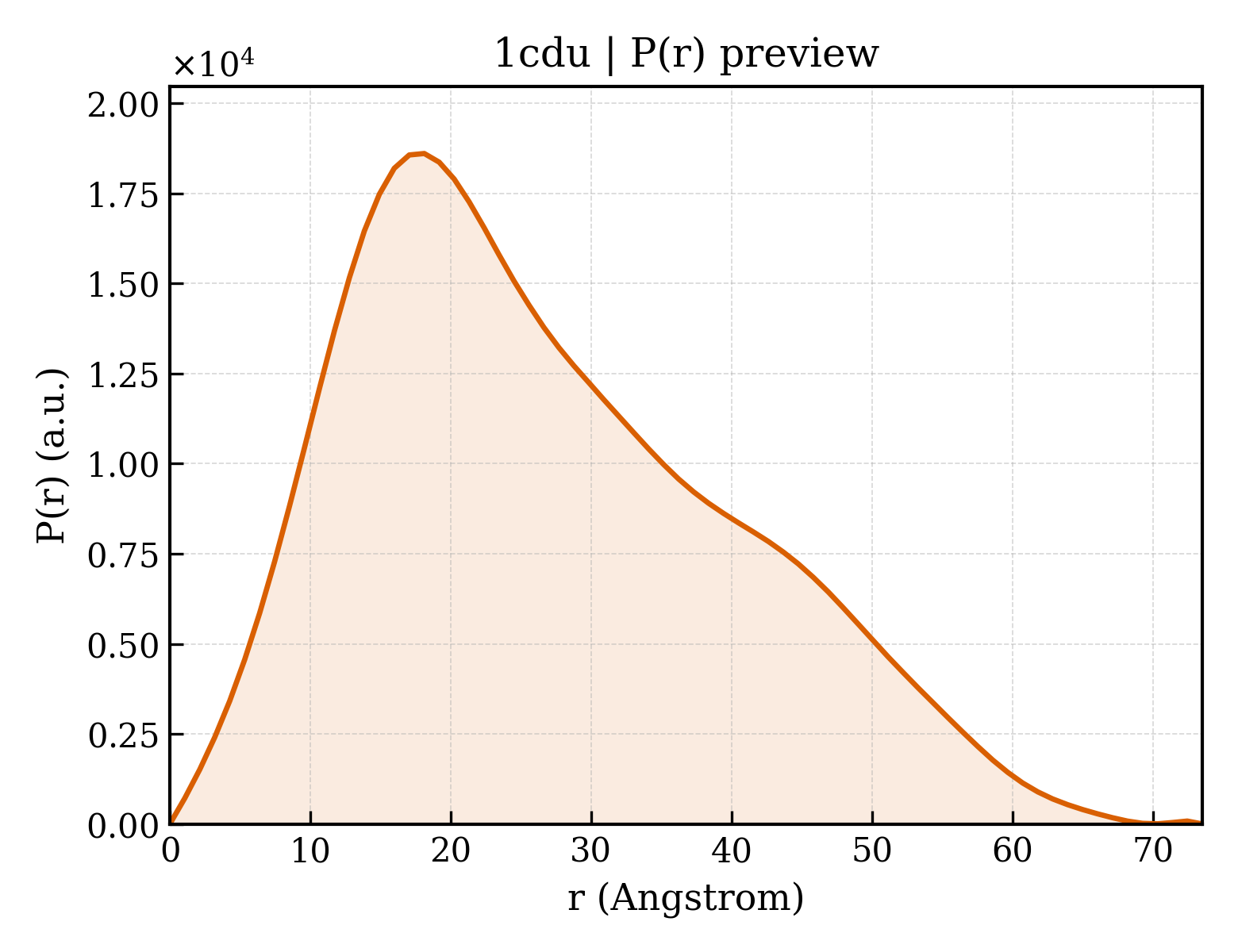

P(r) Distribution
1. Structure Basics
| entry_id | 1cdu |
| deposition_date | 1996-11-11 |
| title | STRUCTURE OF T-CELL SURFACE GLYCOPROTEIN CD4 MUTANT WITH PHE 43 REPLACED BY VAL |
| keywords | IMMUNOGLOBULIN FOLD, TRANSMEMBRANE, GLYCOPROTEIN, T-CELL, MHC, LIPOPROTEIN, T-CELL SURFACE GLYCOPROTEIN; T-CELL SURFACE GLYCOPROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.92 Å |
| rg_electron | 20.24 Å |
| i0 | 7144150.00 |
| molecular_weight | 19639.0 kDa |
| excluded_volume | 24627 ų |
| envelope_volume | 29418 ų |
| shell_volume | 13529 ų |
| envelope_diameter | 73.4 Å |
| shell_rg | 24.81 Å |
| envelope_rg | 20.54 Å |
| shape_rg | 20.24 Å |
| total_rg | 20.96 Å |
| total_atoms | 1379 |
| n_residues | 178 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 73.5 Å |
| rg_real | 21.16 Å |
| rg_real_error | 0.79 Å |
| i0_real | 7.1440e+06 |
| i0_real_error | 1.1330e+05 |
| rg_reciprocal | 21.11 Å |
| i0_reciprocal | 7144000.0000 |
| total_estimate | 0.7841 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.1 Å |
| skewness | 0.527 |
| kurtosis | -0.450 |
| angular_range | — – 0.3800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2495000.0000 |
| n_real_points | 70 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.584; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.498; Smooth: 0.939 |
