Bos taurus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | No other associated polymer | Consistent with protein count |
| UniProt name | CTRA_BOVIN |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–245； UniProt 1–245 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1chg |
| Deposition date deposition_date | 1975-03-01 |
| Structure title title | CHYMOTRYPSINOGEN,2.5 ANGSTROMS CRYSTAL STRUCTURE, COMPARISON WITH ALPHA-CHYMOTRYPSIN,AND IMPLICATIONS FOR ZYMOGEN ACTIVATION |
| Keywords keywords | HYDROLASE ZYMOGEN (SERINE PROTEINASE); HYDROLASE ZYMOGEN (SERINE PROTEINASE) |
| Experimental Method method | X-RAY DIFFRACTION |
This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

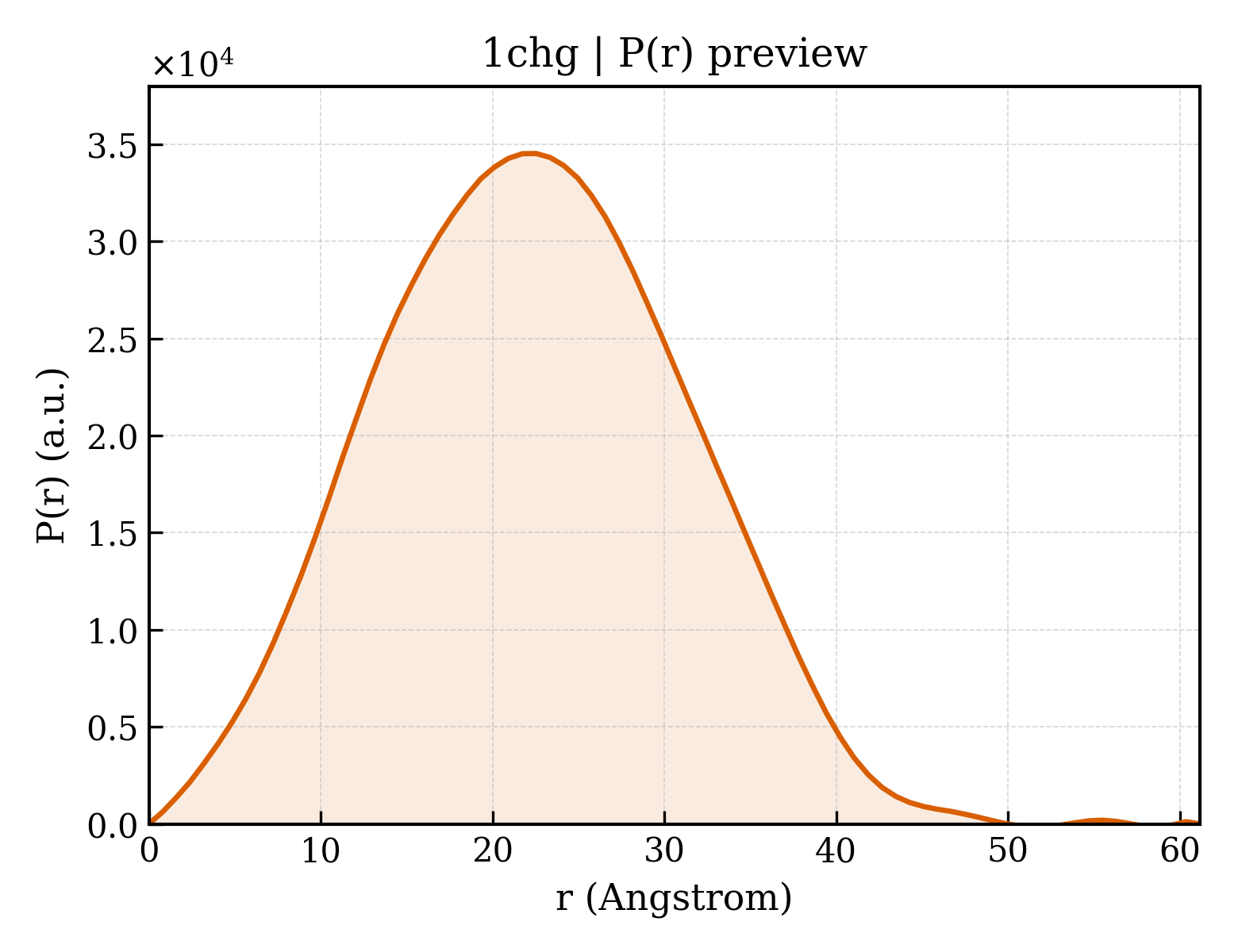

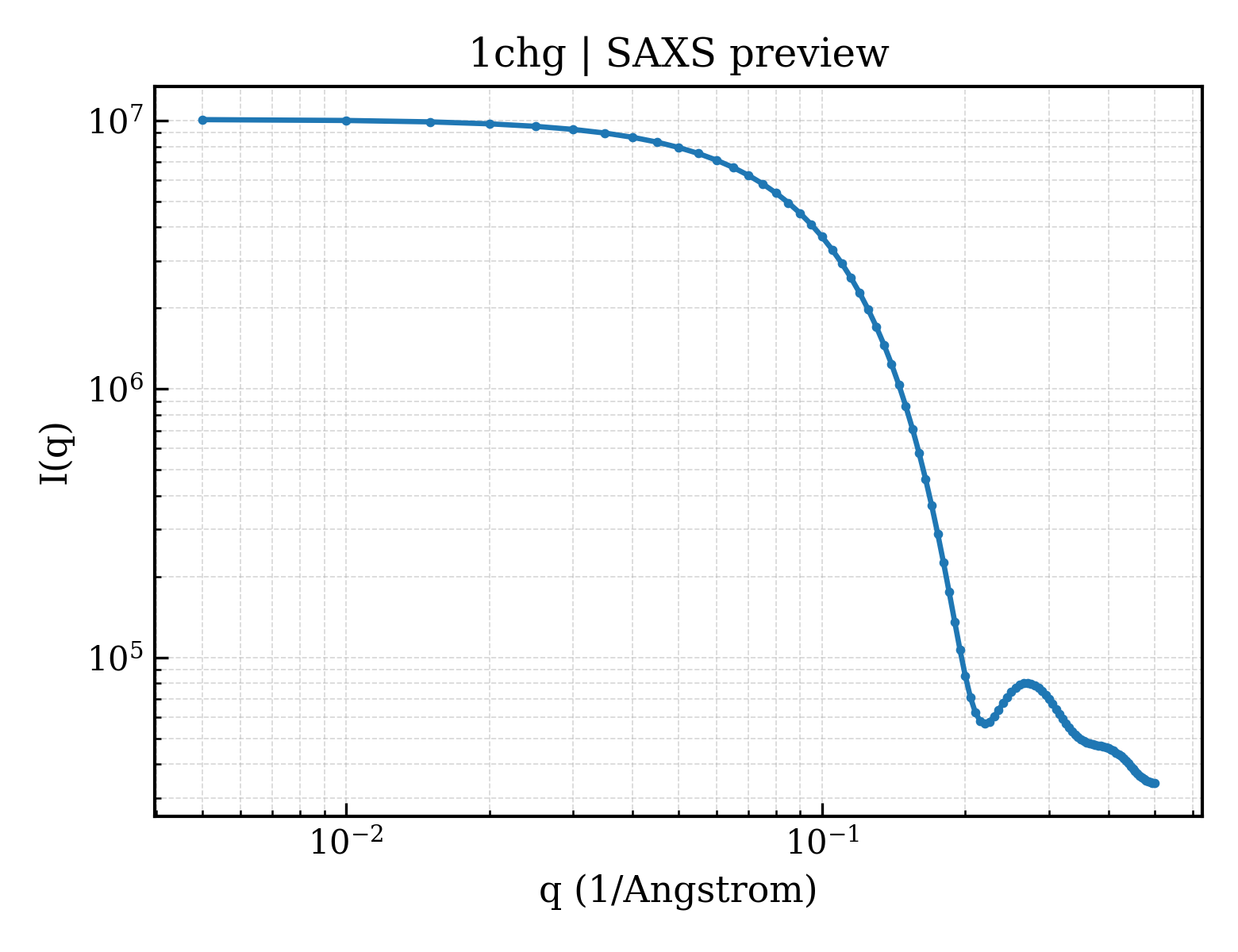

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 17.04 Å |
| Rg (electron density) | 16.02 Å |
| Total Rg | 17.10 Å |
| Atom count | 1643 |
| Residues | 230 |
| Excluded volume | 29314 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1chga_ |
| Class class | b — All beta proteins |
| Fold Fold fold | b.47 — Trypsin-like serine proteases |
| Superfamily Superfamily superfamily | b.47.1 — Trypsin-like serine proteases |
| Family Family family | b.47.1.2 — Eukaryotic proteases |
| Domain ID domain_id | 1chgA01 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 40 — Beta Barrel |
| Topology topology | 10 — Thrombin, subunit H |
| Homologous superfamily homologous superfamily | 10 — Trypsin-like serine proteases |
| Domain ID domain_id | 1chgA02 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 40 — Beta Barrel |
| Topology topology | 10 — Thrombin, subunit H |
| Homologous superfamily homologous superfamily | 10 — Trypsin-like serine proteases |
