SAXSdb — 1cmx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (UBIQUITIN YUH1-UBAL)

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	PROTEIN (UBIQUITIN YUH1-UBAL) × 2 （P02248） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBL1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–235； UniProt 1–235 Author chain C； PDBConstruct 1–235； UniProt 1–235

PROTEIN (UBIQUITIN YUH1-UBAL)

OrganismNot specified

UniProt P02248

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	PROTEIN (UBIQUITIN YUH1-UBAL) × 2 （P35127） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBIQ_HUMANX
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–76； UniProt 1–75 Author chain D； PDBConstruct 1–76； UniProt 1–75

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1cmx
Deposition date deposition_date	1999-05-12
Structure title title	STRUCTURAL BASIS FOR THE SPECIFICITY OF UBIQUITIN C-TERMINAL HYDROLASES
Keywords keywords	UBIQUITIN HYDROLASE, UBIQUITIN, DEUBIQUITINATING ENZYME, CYSTEINE PROTEASE, ENZYME SPECIFICITY, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1cmx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1cmx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

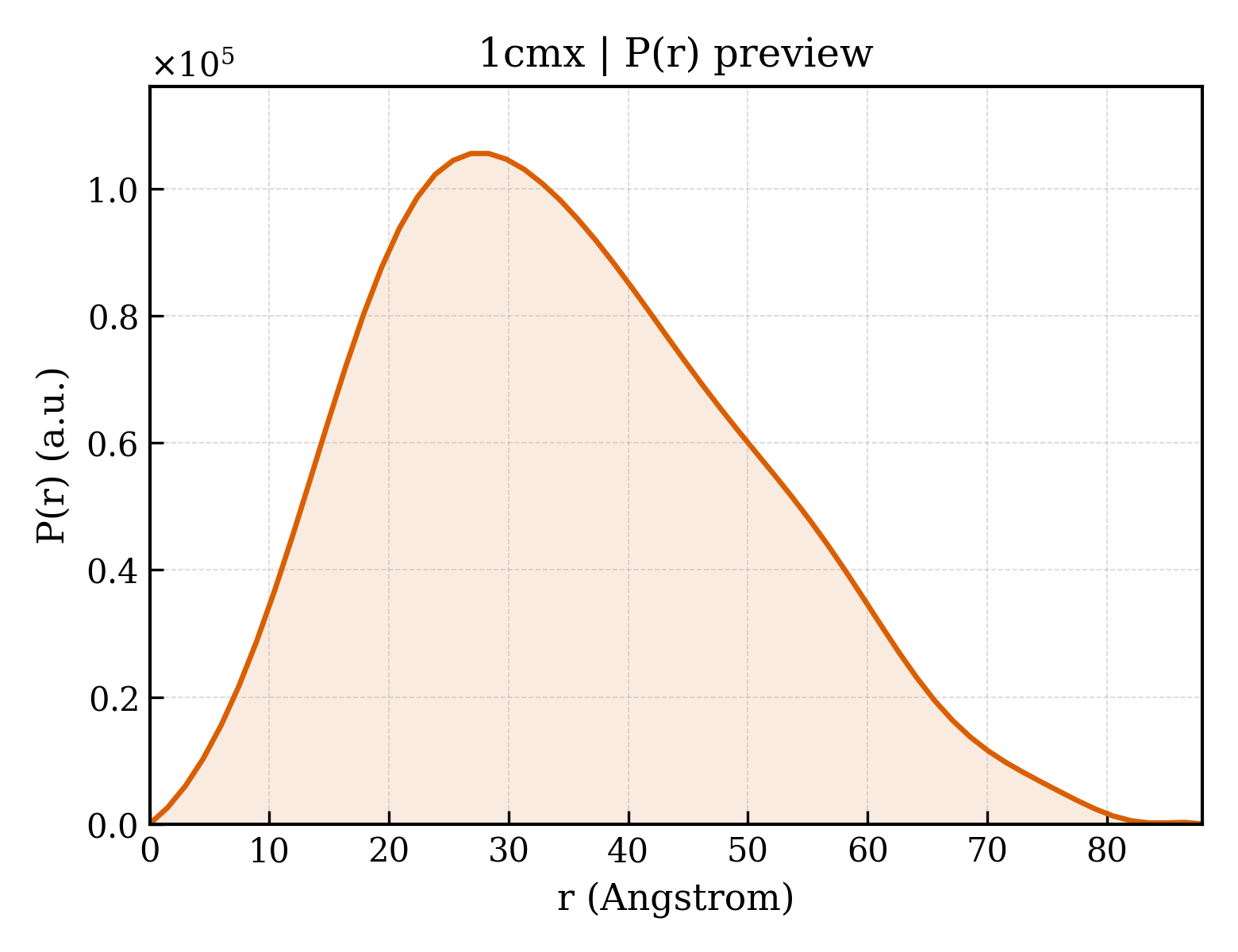

1cmx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.87 Å
Rg (electron density)	25.78 Å
Total Rg	26.55 Å
Atom count	4067
Residues	515
Excluded volume	72448 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1cmx__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	PROTEIN (UBIQUITIN YUH1-UBAL)
Molecular weight formula_weight	26276.1 kDa
EC 编号 ec_number	3.1.2.15
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	4142

MSGENRAVVPIESNPEVFTNFAHKLGLKNEWAYFDIYSLTEPELLAFLPRPVKAIVLLFPINEDRKSSTSQQITSSYDVIWFKQSVKNACGLYAILHSLSNNQSLLEPGSDLDNFLKSQSDTSSSKNRFDDVTTDQFVLNVIKENVQTFSTGQSEAPEATADTNLHYITYVEENGGIFELDGRNLSGPLYLGKSDPTATDLIEQELVRVRVASYMENANEEDVLNFAMLGLGPNW

Entity 2 Entity 2 polymer

Description description	PROTEIN (UBIQUITIN YUH1-UBAL)
Molecular weight formula_weight	8560.8 kDa
EC 编号 ec_number	3.1.2.15
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGG

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	75

▼

6. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1cmxa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.3 — Cysteine proteinases
Superfamily Superfamily superfamily	d.3.1 — Cysteine proteinases
Family Family family	d.3.1.6 — Ubiquitin carboxyl-terminal hydrolase UCH-L

Domain ID domain_id	d1cmxb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

Domain ID domain_id	d1cmxc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.3 — Cysteine proteinases
Superfamily Superfamily superfamily	d.3.1 — Cysteine proteinases
Family Family family	d.3.1.6 — Ubiquitin carboxyl-terminal hydrolase UCH-L

Domain ID domain_id	d1cmxd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

CATH v4.4 (3 domains)

Domain ID domain_id	1cmxA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	532 — Ubiquitin C-terminal Hydrolase UCH-l3
Homologous superfamily homologous superfamily	10 — Peptidase C12, ubiquitin carboxyl-terminal hydrolase

Domain ID domain_id	1cmxB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	1cmxC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	532 — Ubiquitin C-terminal Hydrolase UCH-l3
Homologous superfamily homologous superfamily	10 — Peptidase C12, ubiquitin carboxyl-terminal hydrolase

▶

Unit-cell length a length_a	199.300 Å
Unit-cell length b length_b	199.300 Å
Unit-cell length c length_c	36.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3
Space-group number int_tables_number	146
Crystal system crystal_system	—

Resolution resolution	2.250 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	—
R_work r_work	0.2480
R_free r_free	0.2850
