1crc
CYTOCHROME C AT LOW IONIC STRENGTH

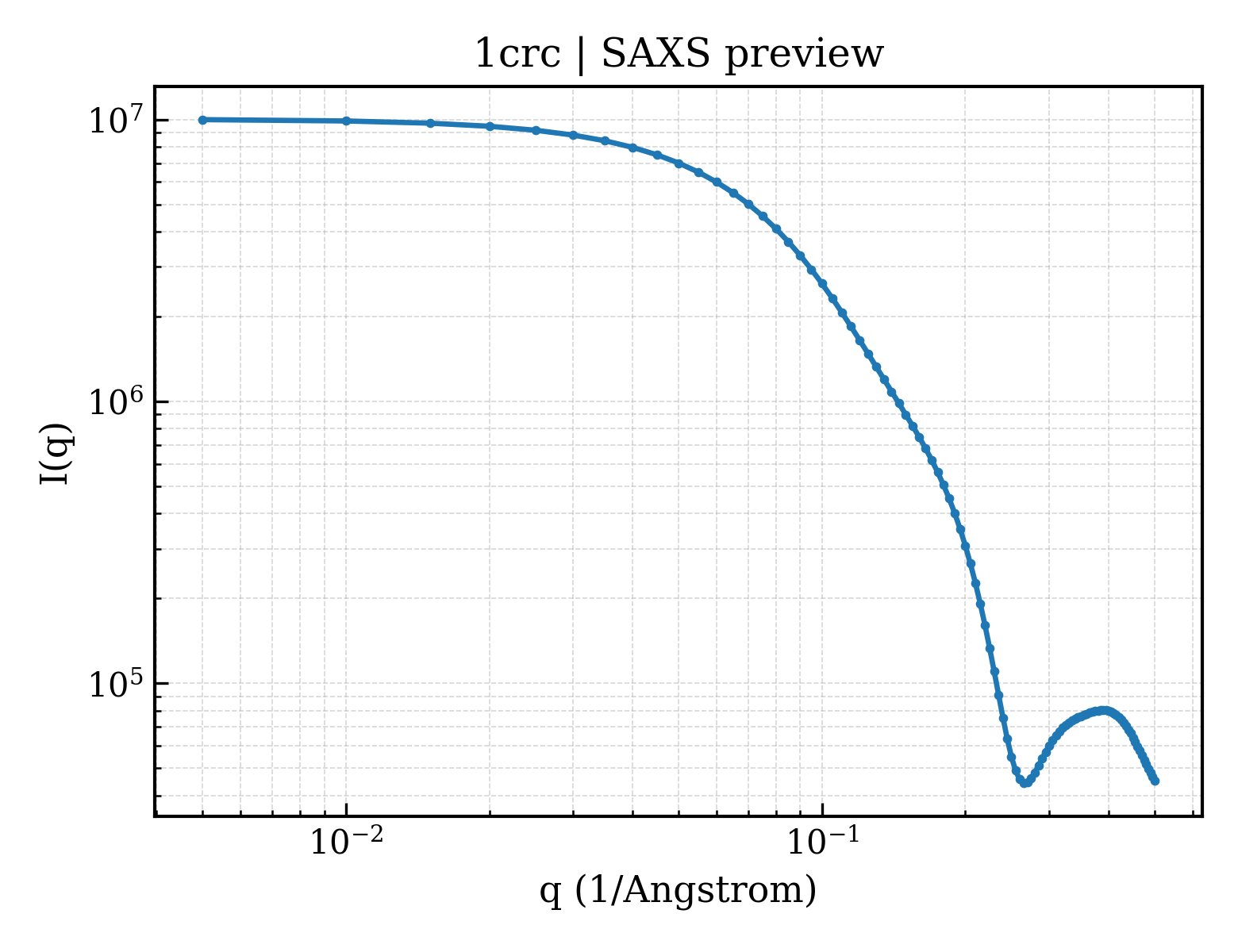

SAXS Profile

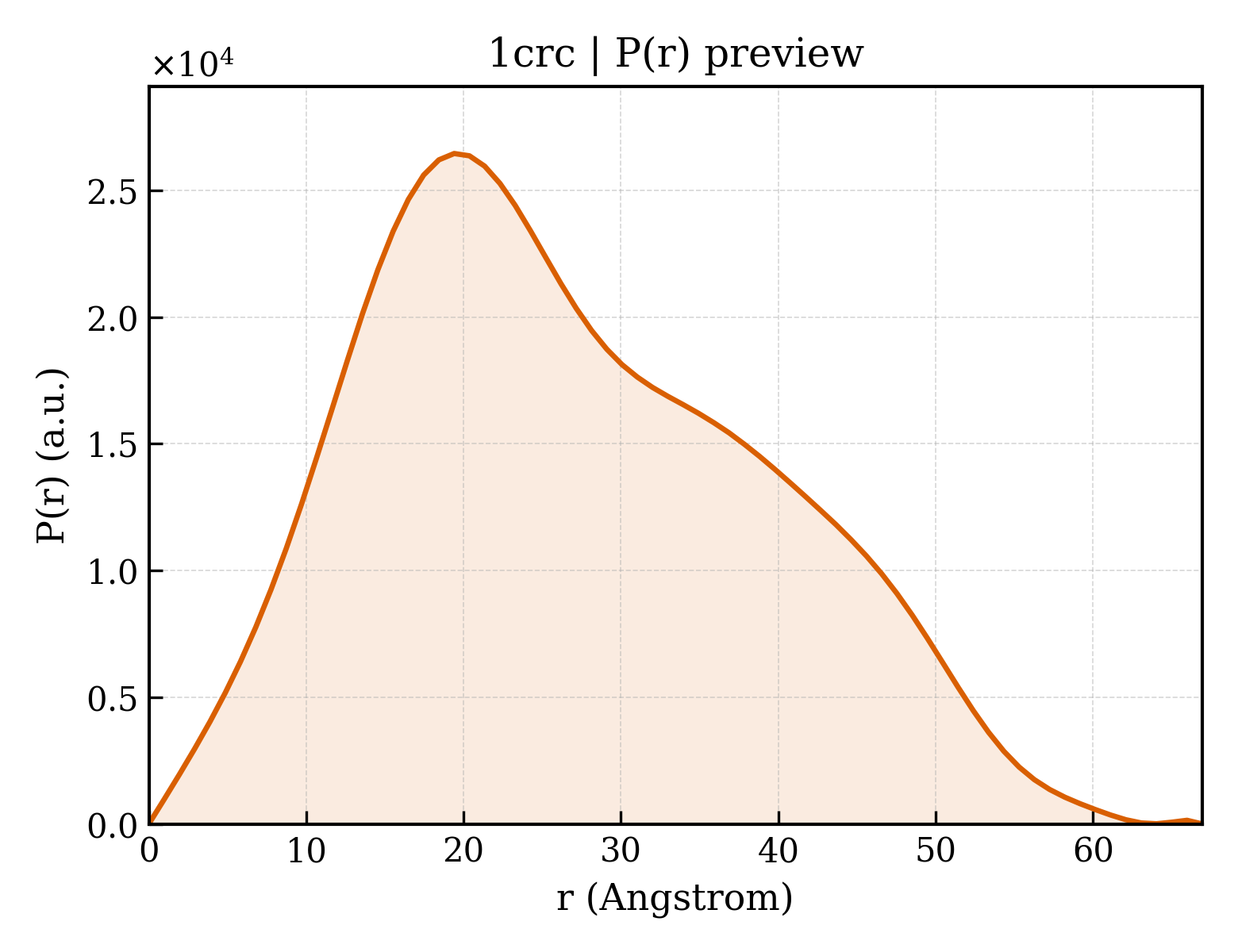

P(r) Distribution
1. Structure Basics
| entry_id | 1crc |
| deposition_date | 1995-03-22 |
| title | CYTOCHROME C AT LOW IONIC STRENGTH |
| keywords | FERRIC FORM, LOW IONIC STRENGTH, MITOCHONDRIAL ELECTRON TRANSPORT; MITOCHONDRIAL ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.75 Å |
| rg_electron | 20.13 Å |
| i0 | 10025800.00 |
| molecular_weight | 24160.0 kDa |
| excluded_volume | 30401 ų |
| envelope_volume | 35359 ų |
| shell_volume | 15305 ų |
| envelope_diameter | 66.5 Å |
| shell_rg | 25.14 Å |
| envelope_rg | 20.13 Å |
| shape_rg | 20.10 Å |
| total_rg | 20.94 Å |
| total_atoms | 1698 |
| n_residues | 208 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 66.9 Å |
| rg_real | 20.82 Å |
| rg_real_error | 0.45 Å |
| i0_real | 1.0030e+07 |
| i0_real_error | 1.2240e+05 |
| rg_reciprocal | 20.81 Å |
| i0_reciprocal | 10030000.0000 |
| total_estimate | 0.6928 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 19.4 Å |
| skewness | 0.348 |
| kurtosis | -0.631 |
| angular_range | — – 0.3850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2149000.0000 |
| n_real_points | 70 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.818; Stabil: 1.000; Sysdev: 0.242; Positv: 1.000; Valcen: 0.922; Smooth: 0.900 |
