SAXSdb — 1ct6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HISTONE H3 PEPTIDE

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 130–135	Fragment：C-TERMINAL REGION 130-135	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 7；277 K；Ionic strength (raw mmCIF value) 0.1M PHOSPHATE；Pressure 1 NMR sample composition：5 MM PEPTIDE, 0.1 MM MAB; 100 MM PHOSPHTE BUFFER CONTAINING 0.02% SODIUM AZIDE	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1CT6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CS9 SOLUTION STRUCTURE OF CGGIRGERA IN CONTACT WITH THE MONOCLONAL ANTIBODY MAB 4X11, NMR, 7 STRUCTURES Deposited 1999-08-18	Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 130–135（6 aa） Fragment：C-TERMINAL REGION 130-135	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；277 K；Ionic strength (raw mmCIF value) 0.1M PHOSPHATE；Pressure 1 NMR sample composition 5 MM PEPTIDE, 0.1MM MAB; 100 MM PHOSPHATE BUFFER CONTAINING 0.02% SODIUM AZIDE	Resolution not provided
1GUW STRUCTURE OF THE CHROMODOMAIN FROM MOUSE HP1beta IN COMPLEX WITH THE LYSINE 9-METHYL HISTONE H3 N-TERMINAL PEPTIDE, NMR, 25 STRUCTURES Deposited 2002-02-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–16（16 aa） Fragment：N-TERMINAL TAIL, RESIDUES 1-18	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.5；298 K；Pressure 1 NMR sample composition 150 mM NACL, 20 mM PHOSPHATE BUFFER, 10% D2O	Resolution not provided
1Q3L Chromodomain Of HP1 Complexed With Histone H3 Tail Containing monomethyllysine 9. Deposited 2003-07-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 1–16（16 aa） Fragment：tail residues 1-16	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.1；283 K；Ammonium Sulfate, MES, pH 6.1, VAPOR DIFFUSION, SITTING DROP, temperature 283K	Resolution 1.64 Å R-free 0.241

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	H31_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–9； UniProt 130–135

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ct6
Deposition date deposition_date	1999-08-19
Structure title title	SOLUTION STRUCTURE OF CGGIRGERG IN CONTACT WITH THE MONOCLONAL ANTIBODY MAB 4X11, NMR, 11 STRUCTURES
Keywords keywords	SYNTHETIC PEPTIDE, ANALOGUE, TR-NOE, ANTIGEN-ANTIBODY COMPLEX, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	SOLUTION NMR

▼

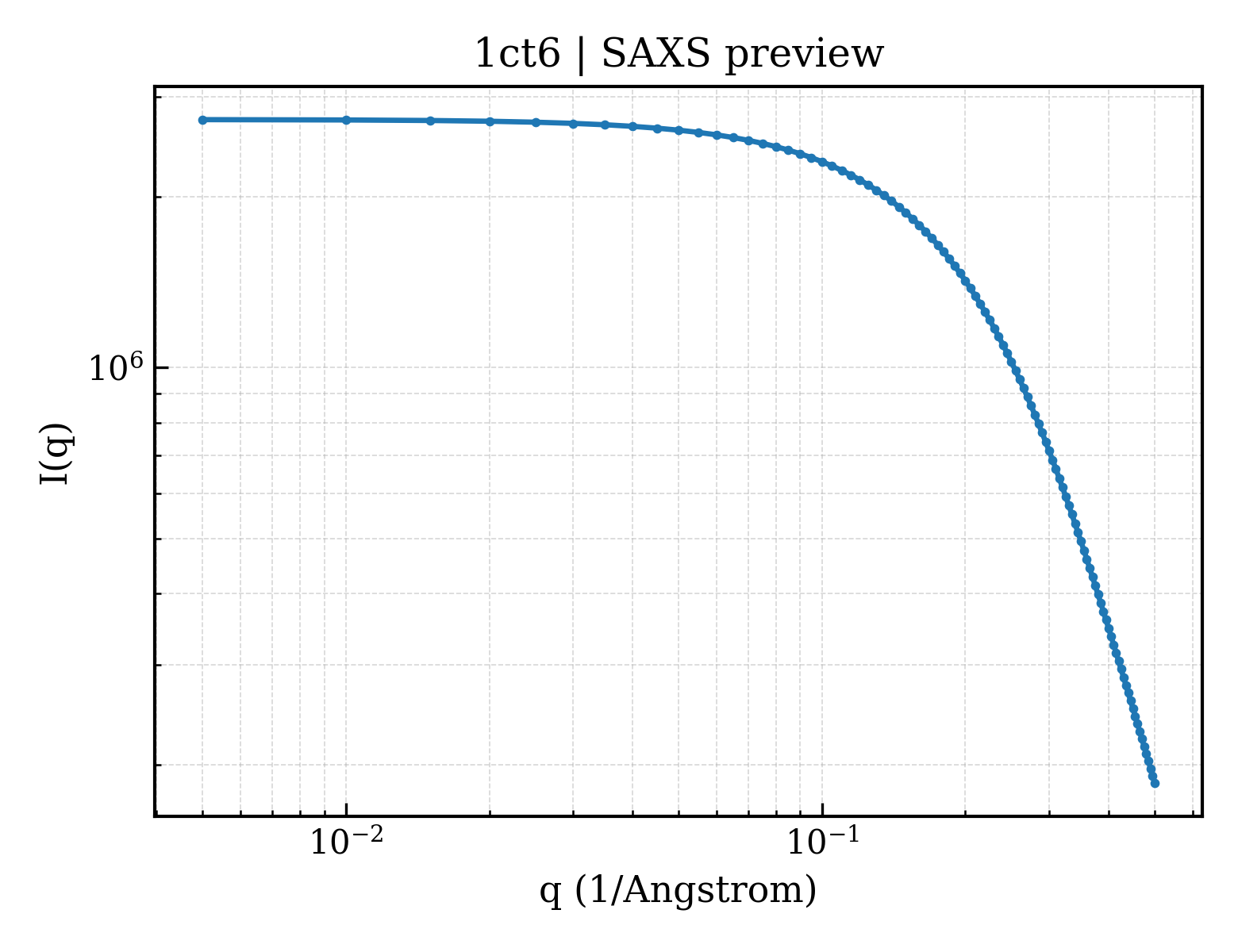

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	7.11 Å
Radius of gyration Rg (electron density) rg_electron	6.62 Å
Forward intensity I(0) i0	2732580.00
Molecular weight molecular_weight	9955.0 kDa
Excluded volume excluded_volume	11483 Å³
Envelope volume envelope_volume	4779 Å³
Hydration-shell volume shell_volume	5173 Å³
Envelope diameter envelope_diameter	27.6 Å
Shell Rg shell_rg	13.22 Å
Envelope Rg envelope_rg	8.94 Å
Shape Rg shape_rg	6.57 Å
Total Rg total_rg	7.71 Å
Total atoms total_atoms	1364
Residues n_residues	99
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

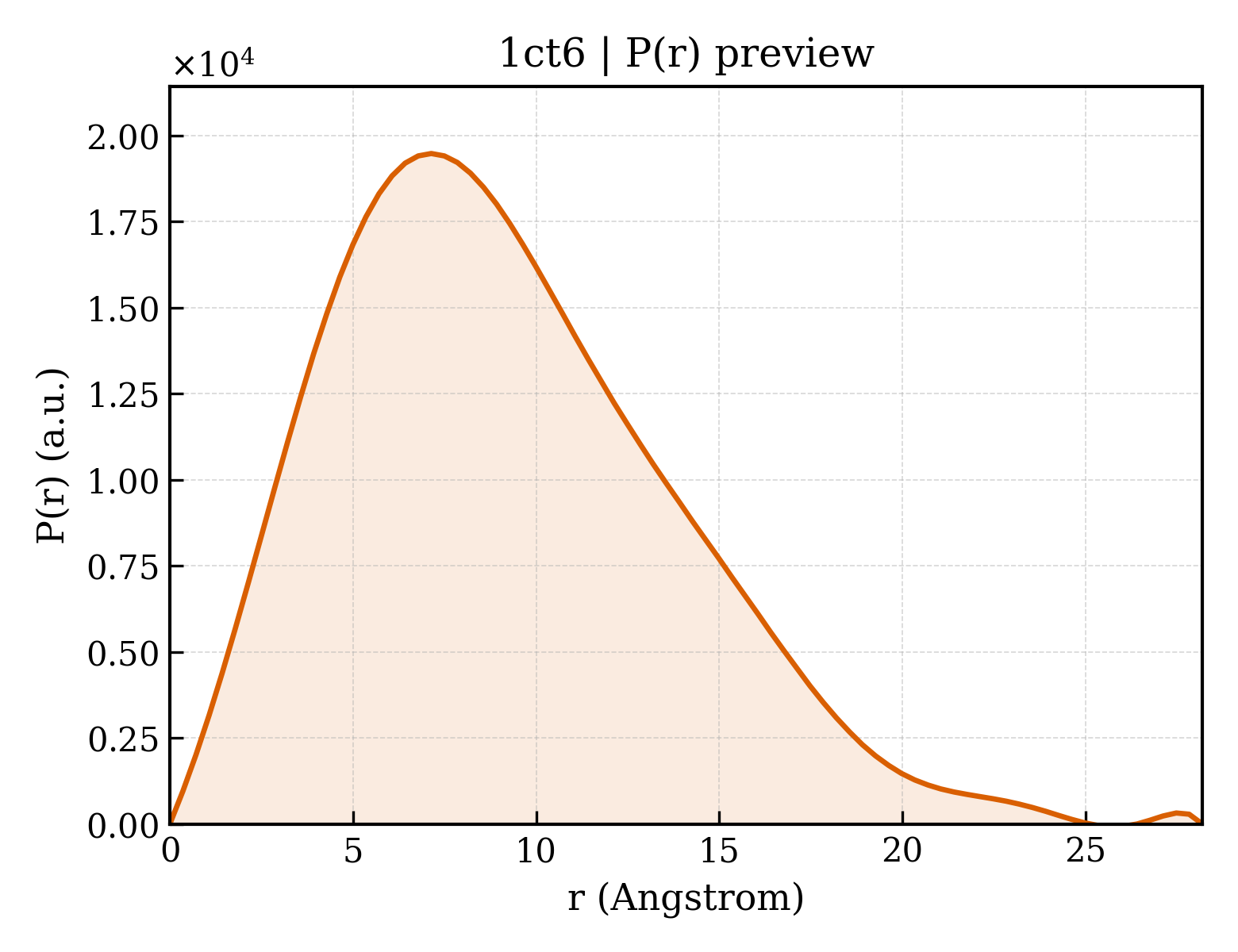

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	28.2 Å
Rg (real space) rg_real	7.20 Å
Rg uncertainty (real space) rg_real_error	0.43 Å
I(0) (real space) i0_real	2.7330e+06
I(0) uncertainty (real space) i0_real_error	2.9780e+04
Rg (reciprocal space) rg_reciprocal	7.20 Å
I(0) (reciprocal space) i0_reciprocal	2733000.0000
Solution quality estimate total_estimate	0.6027
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	7.1 Å
Skewness Skewness skewness	0.600
Kurtosis Kurtosis kurtosis	0.135
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1592.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.567; Stabil: 1.000; Sysdev: 0.368; Positv: 1.000; Valcen: 0.267; Smooth: 0.758

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1ct6a_
Class class	j — Peptides
Fold Fold fold	j.63 — Histone H3 C-terminal fragment 130-135
Superfamily Superfamily superfamily	j.63.1 — Histone H3 C-terminal fragment 130-135
Family Family family	j.63.1.1 — Histone H3 C-terminal fragment 130-135

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	HISTONE H3 PEPTIDE
Molecular weight formula_weight	906.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1364

fit	/app/data/saxs_computation/ct/1ct6/1ct6.fit
pddf	/app/data/pr_computation/ct/1ct6/1ct6.pr.out
profile	/app/data/saxs_computation/ct/1ct6/1ct6.dat
