1cww
SOLUTION STRUCTURE OF THE CASPASE RECRUITMENT DOMAIN (CARD) FROM APAF-1

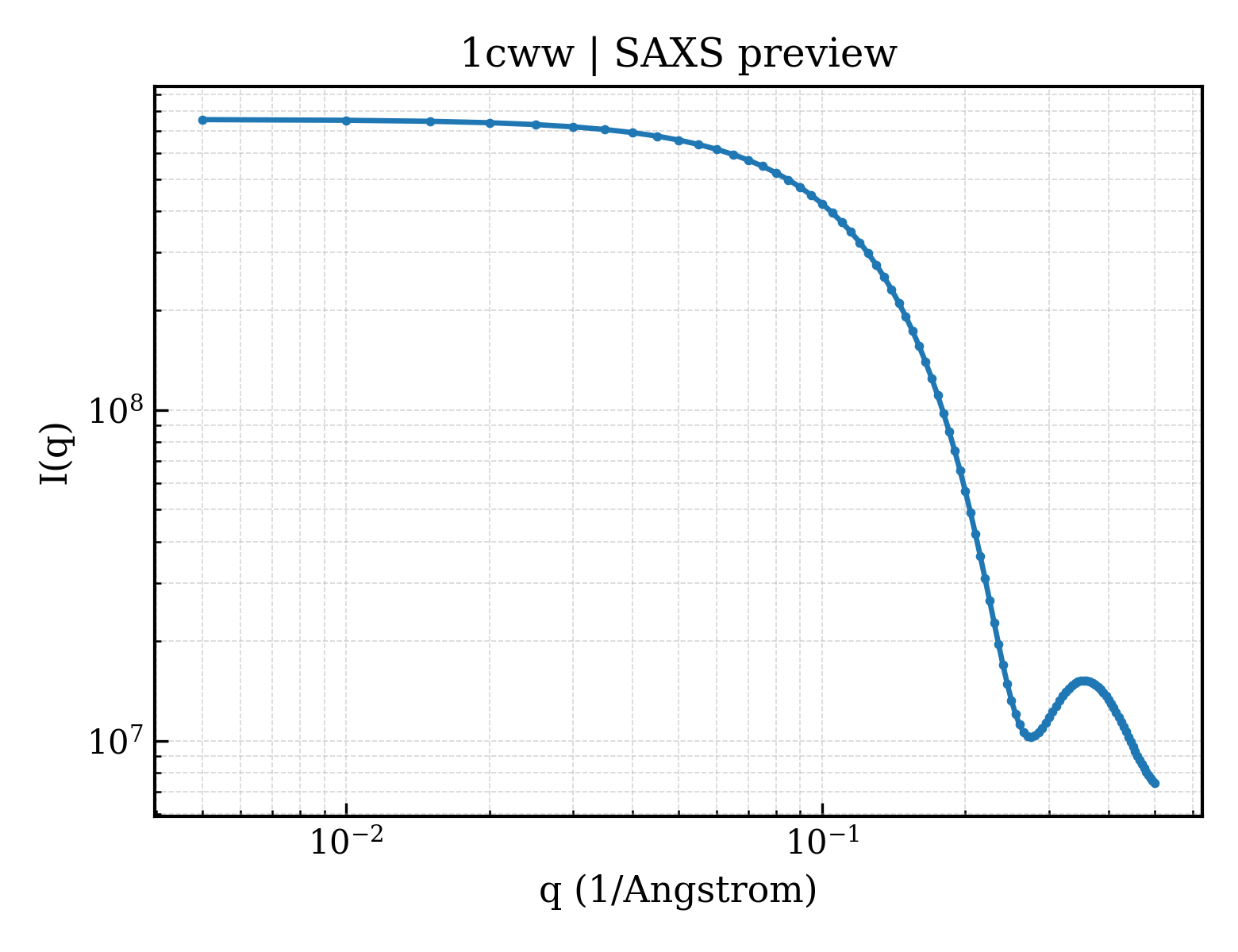

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1cww |
| deposition_date | 1999-08-26 |
| title | SOLUTION STRUCTURE OF THE CASPASE RECRUITMENT DOMAIN (CARD) FROM APAF-1 |
| keywords | HELICAL BUNDLE, APOPTOSIS; APOPTOSIS |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.18 Å |
| rg_electron | 12.78 Å |
| i0 | 756799000.00 |
| molecular_weight | 229840.0 kDa |
| excluded_volume | 286580 ų |
| envelope_volume | 27189 ų |
| shell_volume | 14814 ų |
| envelope_diameter | 48.2 Å |
| shell_rg | 21.54 Å |
| envelope_rg | 15.79 Å |
| shape_rg | 12.77 Å |
| total_rg | 12.97 Å |
| total_atoms | 32300 |
| n_residues | 2040 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 46.0 Å |
| rg_real | 13.08 Å |
| rg_real_error | 0.35 Å |
| i0_real | 7.5680e+08 |
| i0_real_error | 8.8260e+06 |
| rg_reciprocal | 13.08 Å |
| i0_reciprocal | 756800000.0000 |
| total_estimate | 0.8433 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 18.6 Å |
| skewness | 0.055 |
| kurtosis | -0.294 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 202700.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.657; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.991 |
