1cx7
T4 LYSOZYME METHIONINE CORE MUTANT
SAXS Profile

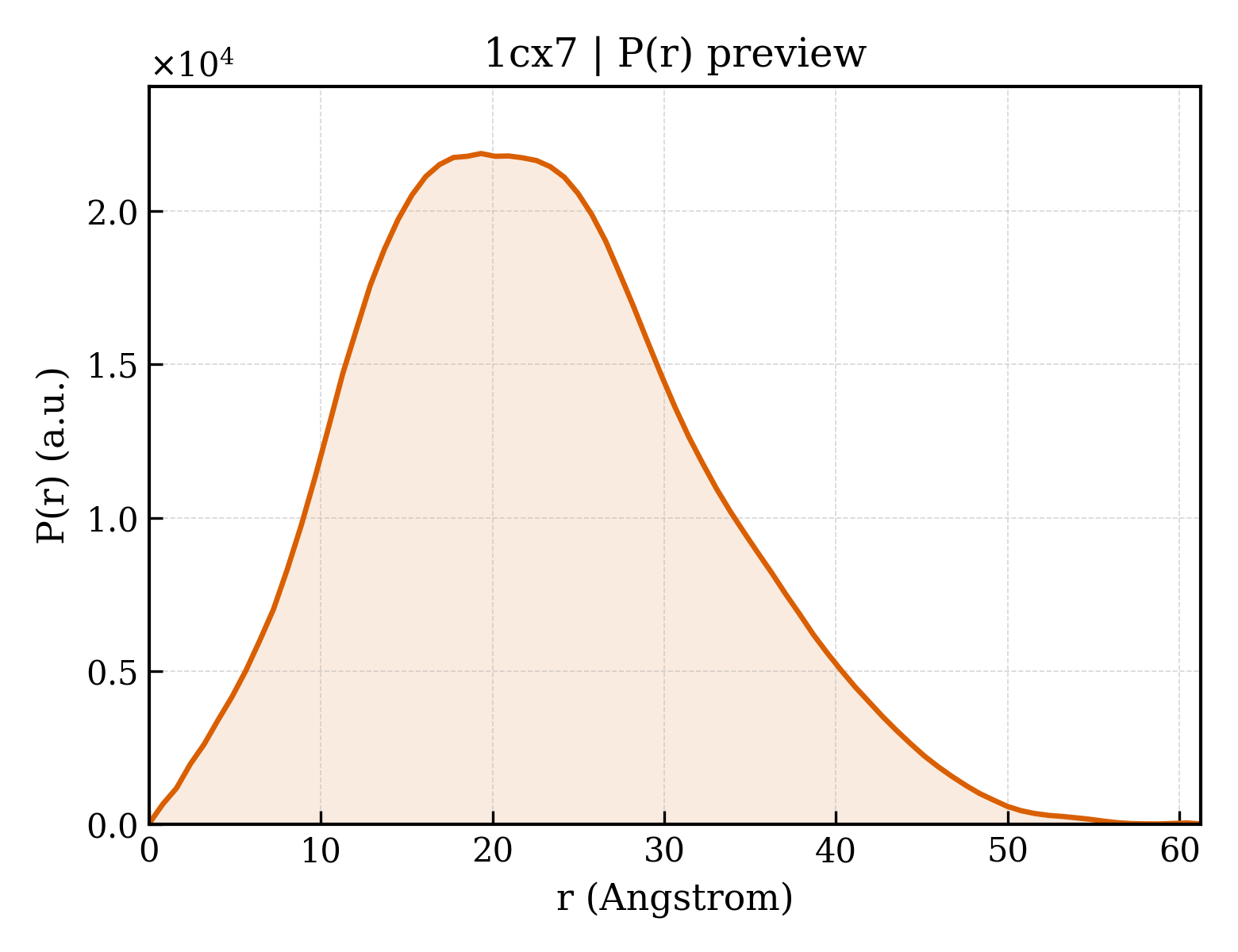

P(r) Distribution
1. Structure Basics
| entry_id | 1cx7 |
| deposition_date | 1999-08-28 |
| title | T4 LYSOZYME METHIONINE CORE MUTANT |
| keywords | HYDROLASE (O-GLYCOSYL), T4 LYSOZYME, METHIONINE CORE MUTANT, PROTEIN ENGINEERING, PROTEIN FOLDING, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.32 Å |
| rg_electron | 16.45 Å |
| i0 | 6987310.00 |
| molecular_weight | 18683.0 kDa |
| excluded_volume | 23171 ų |
| envelope_volume | 26678 ų |
| shell_volume | 14147 ų |
| envelope_diameter | 58.9 Å |
| shell_rg | 21.73 Å |
| envelope_rg | 16.54 Å |
| shape_rg | 16.45 Å |
| total_rg | 17.36 Å |
| total_atoms | 1299 |
| n_residues | 162 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 61.2 Å |
| rg_real | 17.31 Å |
| rg_real_error | 0.51 Å |
| i0_real | 6.9870e+06 |
| i0_real_error | 8.2060e+04 |
| rg_reciprocal | 17.31 Å |
| i0_reciprocal | 6987000.0000 |
| total_estimate | 0.8449 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 19.3 Å |
| skewness | 0.366 |
| kurtosis | -0.229 |
| angular_range | — – 0.4600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1980000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.690; Stabil: 0.996; Sysdev: 1.000; Positv: 1.000; Valcen: 0.931; Smooth: 0.991 |
