1cy5
CRYSTAL STRUCTURE OF THE APAF-1 CARD

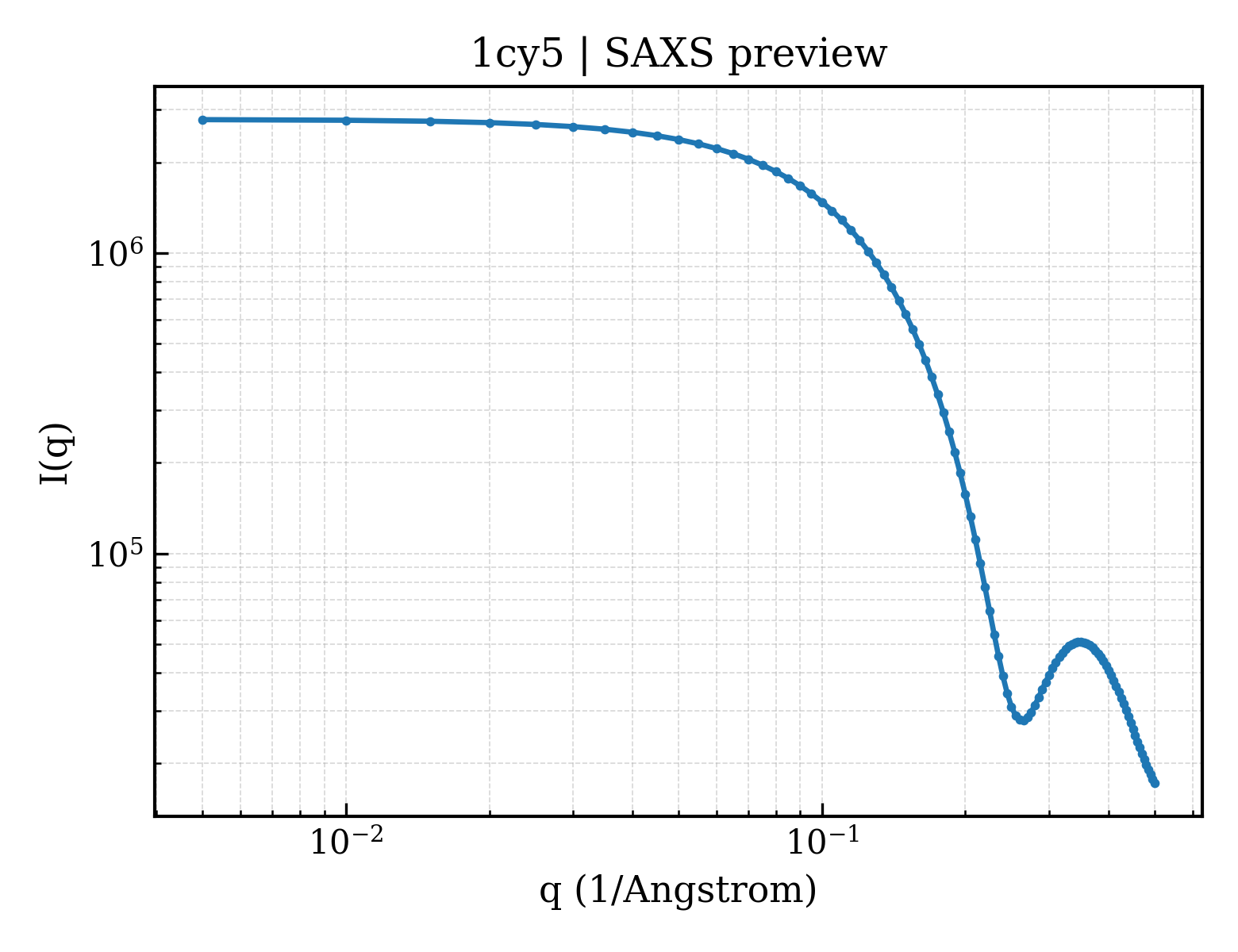

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1cy5 |
| deposition_date | 1999-08-31 |
| title | CRYSTAL STRUCTURE OF THE APAF-1 CARD |
| keywords | CASPASE RECRUITMENT DOMAIN, DEATH FOLD, SIX ALPHA-HELIX BUNDLE, GREEK KEY TOPOLOGY, APOPTOSIS; APOPTOSIS |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.64 Å |
| rg_electron | 12.14 Å |
| i0 | 2777330.00 |
| molecular_weight | 11024.0 kDa |
| excluded_volume | 13504 ų |
| envelope_volume | 14378 ų |
| shell_volume | 10163 ų |
| envelope_diameter | 39.6 Å |
| shell_rg | 17.79 Å |
| envelope_rg | 12.34 Å |
| shape_rg | 12.09 Å |
| total_rg | 13.50 Å |
| total_atoms | 752 |
| n_residues | 93 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 42.3 Å |
| rg_real | 13.53 Å |
| rg_real_error | 0.24 Å |
| i0_real | 2.7770e+06 |
| i0_real_error | 2.8580e+04 |
| rg_reciprocal | 13.54 Å |
| i0_reciprocal | 2777000.0000 |
| total_estimate | 0.8887 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 19.3 Å |
| skewness | 0.030 |
| kurtosis | -0.382 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 326200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.863; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.973 |
