1df3
SOLUTION STRUCTURE OF A RECOMBINANT MOUSE MAJOR URINARY PROTEIN

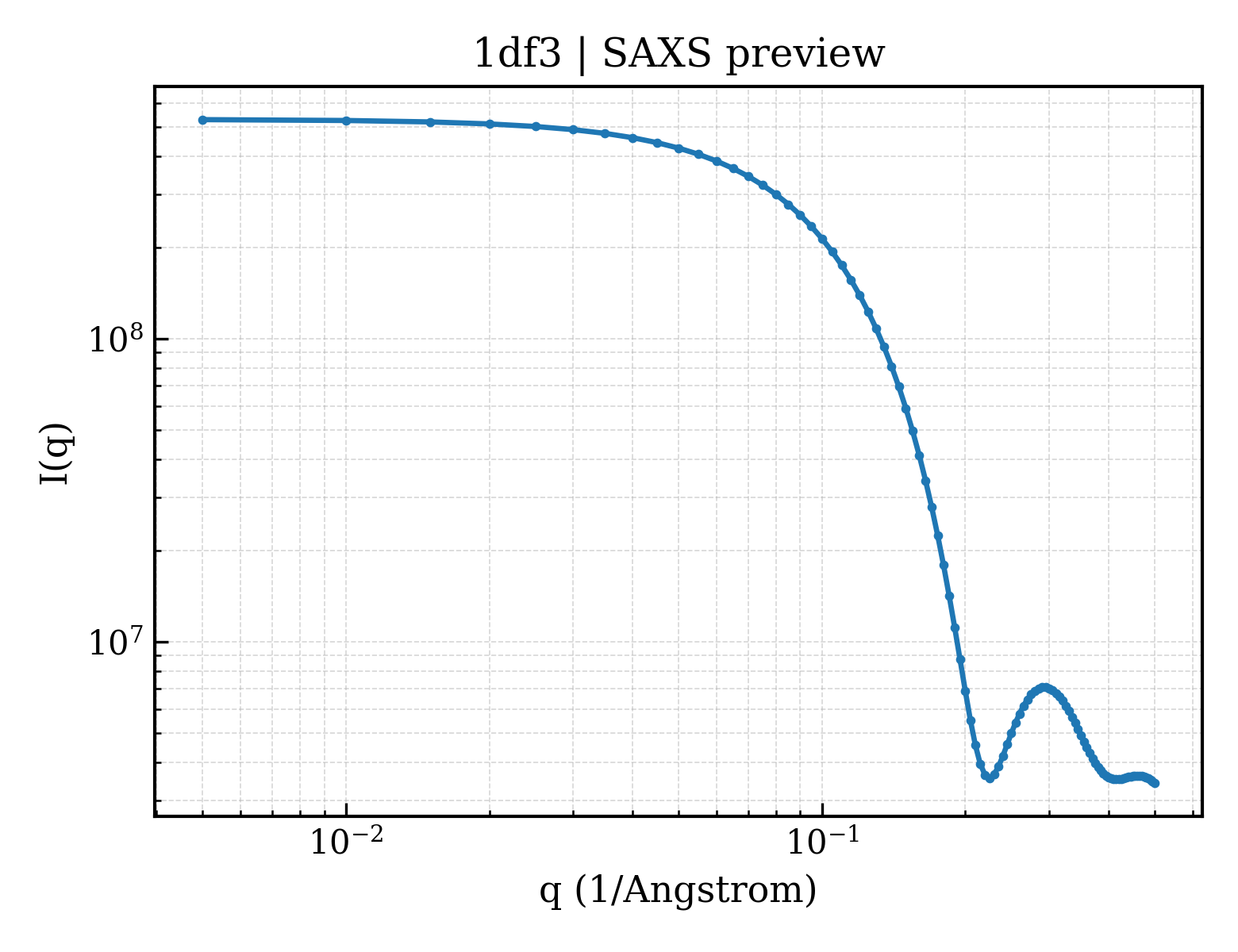

SAXS Profile

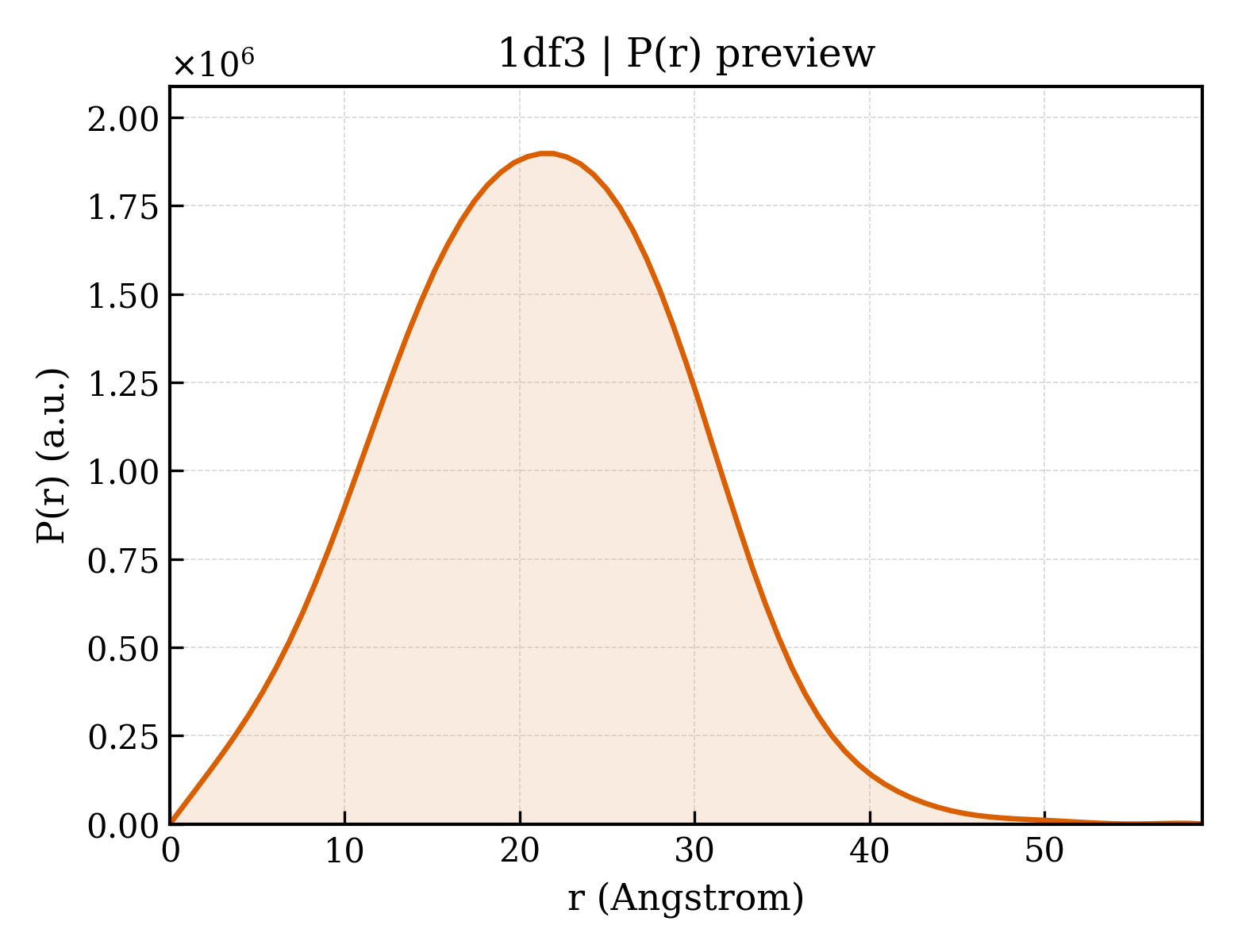

P(r) Distribution
1. Structure Basics
| entry_id | 1df3 |
| deposition_date | 1999-11-17 |
| title | SOLUTION STRUCTURE OF A RECOMBINANT MOUSE MAJOR URINARY PROTEIN |
| keywords | ;LIPOCALIN, CARRIER PROTEIN, PHEROMONE, 8-STRANDED BETA-BARREL, BINDING POCKET, DISULFIDE BRIDGE (64-157), SIGNALING PROTEIN, TRANSPORT PROTEIN ;; TRANSPORT PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.24 Å |
| rg_electron | 15.37 Å |
| i0 | 529359000.00 |
| molecular_weight | 186970.0 kDa |
| excluded_volume | 230990 ų |
| envelope_volume | 41188 ų |
| shell_volume | 19159 ų |
| envelope_diameter | 63.0 Å |
| shell_rg | 24.49 Å |
| envelope_rg | 18.14 Å |
| shape_rg | 15.35 Å |
| total_rg | 15.70 Å |
| total_atoms | 26010 |
| n_residues | 1620 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 59.0 Å |
| rg_real | 16.11 Å |
| rg_real_error | 0.43 Å |
| i0_real | 5.2940e+08 |
| i0_real_error | 6.9900e+06 |
| rg_reciprocal | 16.12 Å |
| i0_reciprocal | 529400000.0000 |
| total_estimate | 0.8229 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 57.5 Å |
| skewness | 0.111 |
| kurtosis | -0.226 |
| angular_range | — – 0.4900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1057000.0000 |
| n_real_points | 79 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.565; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.999 |
