1dgs

CRYSTAL STRUCTURE OF NAD+-DEPENDENT DNA LIGASE FROM T. FILIFORMIS

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA LIGASE

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ZINC ION × 1 ADENOSINE MONOPHOSPHATE × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	ZINC ION × 1 ADENOSINE MONOPHOSPHATE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DNLJ_THEFI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–667； UniProt 1–667 Author chain B； PDBConstruct 1–667； UniProt 1–667

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1dgs
Deposition date deposition_date	1999-11-25
Structure title title	CRYSTAL STRUCTURE OF NAD+-DEPENDENT DNA LIGASE FROM T. FILIFORMIS
Keywords keywords	AMP COMPLEX, NAD+-DEPENDENT, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1dgs__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1dgs__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

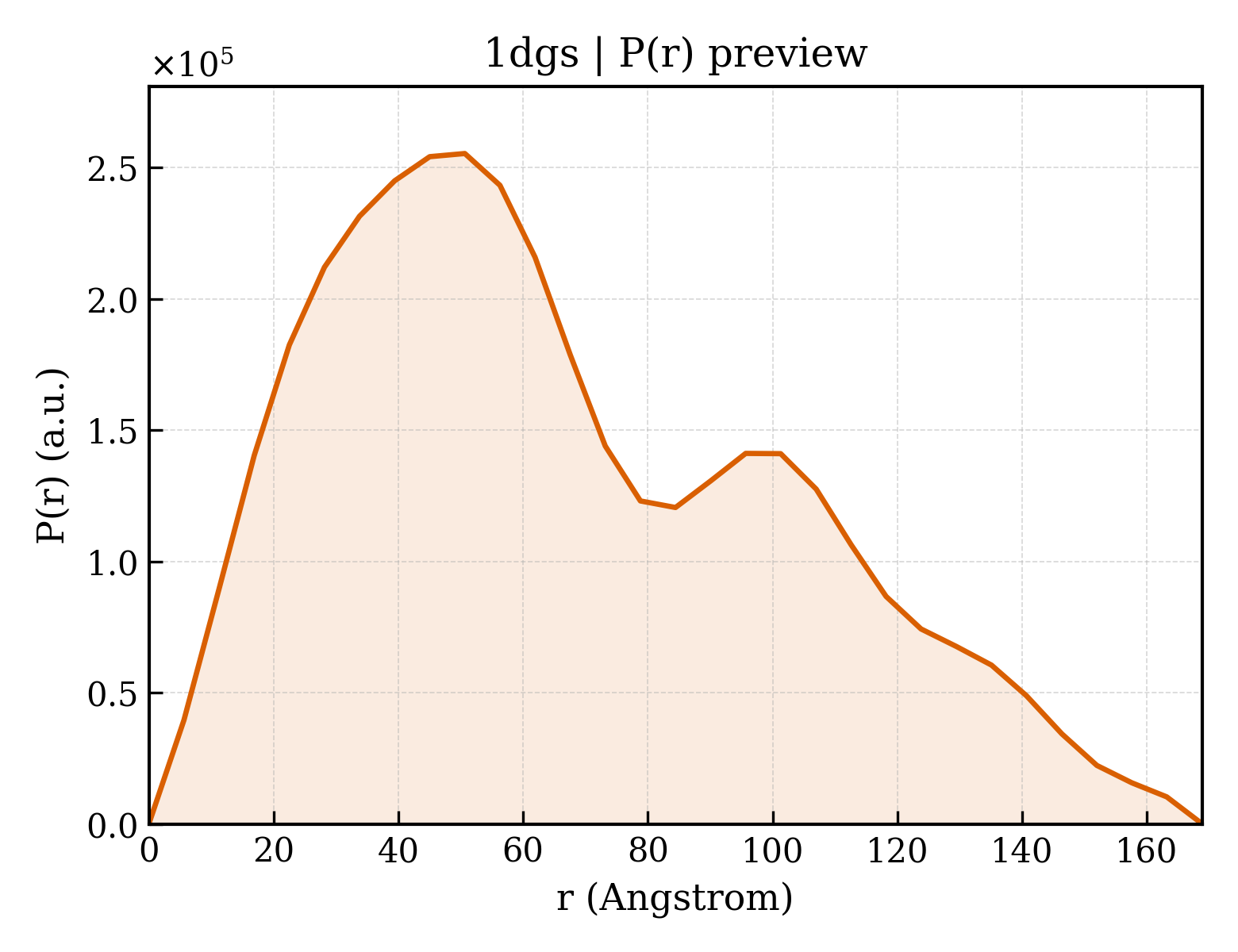

1dgs__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.97 Å
Rg (electron density)	30.24 Å
Total Rg	30.95 Å
Atom count	4716
Residues	581
Excluded volume	83812 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1dgs__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1dgs__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	DNA LIGASE
Molecular weight formula_weight	75998.0 kDa
EC 编号 ec_number	6.5.1.2
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	9674

MTREEARRRINELRDLIRYHNYRYYVLADPEISDAEYDRLLRELKELEERFPEFKSPDSPTEQVGARPLEPTFRPVRHPTRMYSLDNAFTYEEVLAFEERLEREAEAPSLYTVEHKVDGLSVLYYEEGVWSTGSGDGEVGEEVTQNLLTIPTIPRRLKGVPDRLEVRGEVYMPIEAFLRLNEELEERGEKVFKNPRNAAAGSLRQKDPRVTAKRGLRATFYALGLGLGLEESGLKSQYELLLWLKEKGFPVEHCYEKALGAEGVEEVYRRGLAQRHALPFEADGVVLKLDDLTLWGELGYTARAPRFALAYKFPAEEKETRLLDVVFQVGRTGRVTPVGVLEPVFIEGSEVSRVTLHNESYIEELDIRIGDWVLVHKAGGVIPEVLRVLKERRTGKERPIRWPEACPECGHRLVKEGKVHRCPNPLCPAKRFEAIRHYASRKAMDIEGLGEKLIERLLEKGLVRDVADLYHLRKEDLLGLERMGEKSAQNLLRQIEESKHRGLERLLYALGLPGVGEVLARNLARRFGTMDRLLEASLEELIEVEEVGELTARAILETLKDPAFRDLVRRLKEAGVSMESKEEVSDLLSGLTFVLTGELSRPREEVKALLGRLGAKVTDSVSRKTSYLVVGENPGSKLEKARALGVAVLTEEEFWRFLKEKGAPVPA

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE MONOPHOSPHATE
Molecular weight formula_weight	347.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	242

▼

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1dgsa1
Class class	a — All alpha proteins
Fold Fold fold	a.60 — SAM domain-like
Superfamily Superfamily superfamily	a.60.2 — RuvA domain 2-like
Family Family family	a.60.2.2 — NAD+-dependent DNA ligase, domain 3

Domain ID domain_id	d1dgsa2
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.6 — DNA ligase/mRNA capping enzyme postcatalytic domain

Domain ID domain_id	d1dgsa3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.142 — ATP-grasp
Superfamily Superfamily superfamily	d.142.2 — DNA ligase/mRNA capping enzyme, catalytic domain
Family Family family	d.142.2.2 — Adenylation domain of NAD+-dependent DNA ligase

Domain ID domain_id	d1dgsb1
Class class	a — All alpha proteins
Fold Fold fold	a.60 — SAM domain-like
Superfamily Superfamily superfamily	a.60.2 — RuvA domain 2-like
Family Family family	a.60.2.2 — NAD+-dependent DNA ligase, domain 3

Domain ID domain_id	d1dgsb2
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.6 — DNA ligase/mRNA capping enzyme postcatalytic domain

Domain ID domain_id	d1dgsb3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.142 — ATP-grasp
Superfamily Superfamily superfamily	d.142.2 — DNA ligase/mRNA capping enzyme, catalytic domain
Family Family family	d.142.2.2 — Adenylation domain of NAD+-dependent DNA ligase

CATH v4.4 (12 domains)

Domain ID domain_id	1dgsA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	610 — Helix hairpin bin

Domain ID domain_id	1dgsA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1490 — Dna Ligase; domain 1
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1dgsA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	30 — DNA ligase/mRNA capping enzyme

Domain ID domain_id	1dgsA04
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1dgsA05
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

Domain ID domain_id	1dgsA06
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

Domain ID domain_id	1dgsB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	610 — Helix hairpin bin

Domain ID domain_id	1dgsB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1490 — Dna Ligase; domain 1
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1dgsB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	30 — DNA ligase/mRNA capping enzyme

Domain ID domain_id	1dgsB04
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1dgsB05
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

Domain ID domain_id	1dgsB06
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

▶

Unit-cell length a length_a	89.210 Å
Unit-cell length b length_b	117.330 Å
Unit-cell length c length_c	97.480 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	115.09 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.2280
R_free r_free	0.2980
