SAXSdb — 1dqo

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MANNOSE RECEPTOR

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	2-acetamido-2-deoxy-4-O-sulfo-beta-D-galactopyranose × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MANR1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–135； UniProt 20–154

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1dqo
Deposition date deposition_date	2000-01-04
Structure title title	Crystal structure of the cysteine rich domain of mannose receptor complexed with Acetylgalactosamine-4-sulfate
Keywords keywords	beta trefoil, multilectin receptor, pituitary hormones, sulfated carbohydrate, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1dqo__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1dqo__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

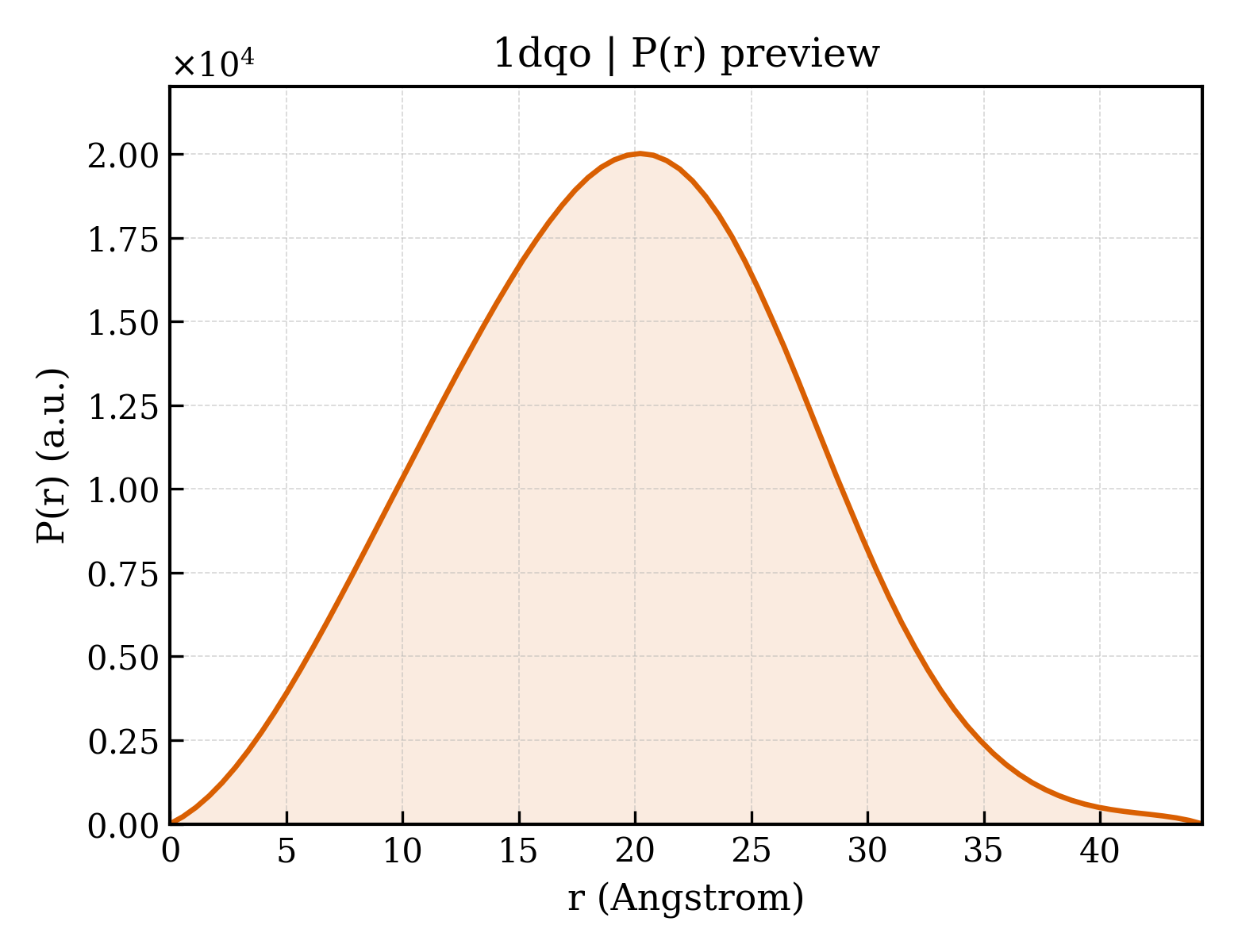

1dqo__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	14.92 Å
Rg (electron density)	13.50 Å
Total Rg	14.90 Å
Atom count	1103
Residues	134
Excluded volume	19453 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1dqo__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	MANNOSE RECEPTOR
Molecular weight formula_weight	15558.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1256

LDARQFLIYNEDHKRCVDALSAISVQTATCNPEAESQKFRWVSDSQIMSVAFKLCLGVPSKTDWASVTLYACDSKSEYQKWECKNDTLFGIKGTELYFNYGNRQEKNIKLYKGSGLWSRWKVYGTTDDLCSRGYE

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-4-O-sulfo-beta-D-galactopyranose
Molecular weight formula_weight	301.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	153

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1dqoa_
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.2 — Ricin B-like lectins
Family Family family	b.42.2.2 — Cysteine rich domain

CATH v4.4 (1 domains)

Domain ID domain_id	1dqoA00
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

▶

Unit-cell length a length_a	39.430 Å
Unit-cell length b length_b	41.480 Å
Unit-cell length c length_c	100.300 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	0.2130
R_work r_work	0.2110
R_free r_free	0.2320
