1dul

STRUCTURE OF THE RIBONUCLEOPROTEIN CORE OF THE E. COLI SIGNAL RECOGNITION PARTICLE

Method: X-RAY DIFFRACTION D_max: 74.0 Å Quality: GOOD

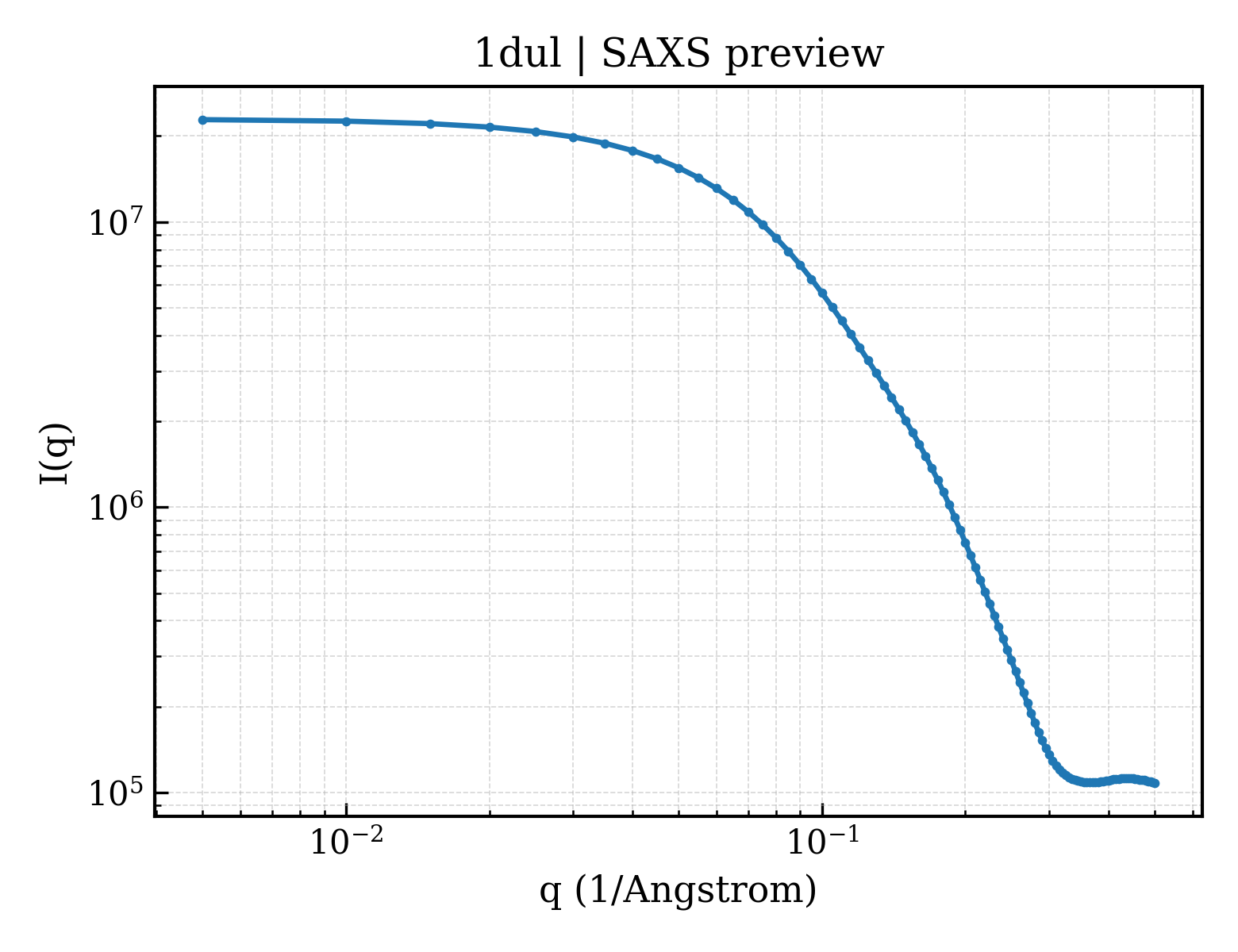

SAXS Profile

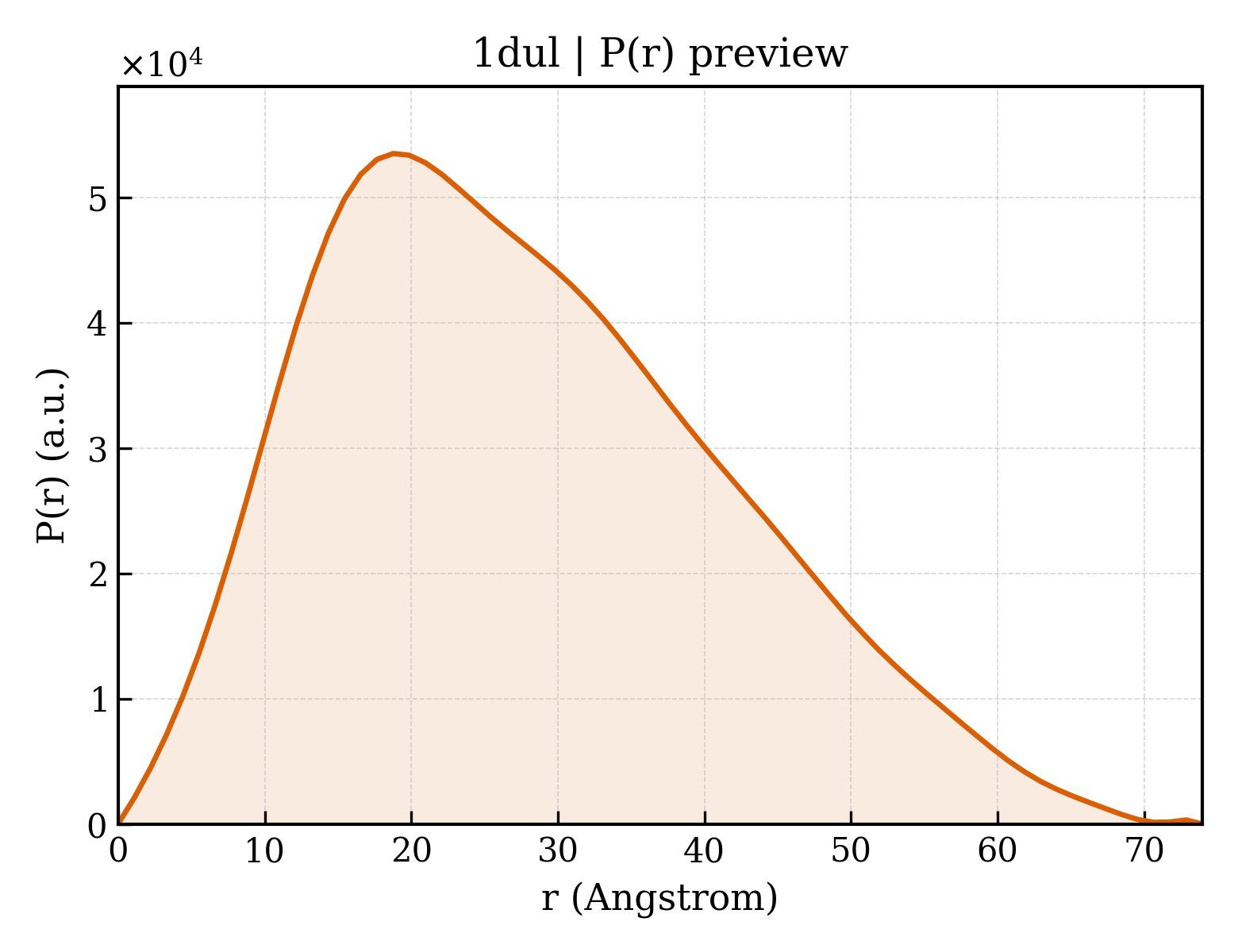

P(r) Distribution

▼

1. Structure Basics

entry_id	1dul
deposition_date	2000-01-17
title	STRUCTURE OF THE RIBONUCLEOPROTEIN CORE OF THE E. COLI SIGNAL RECOGNITION PARTICLE
keywords	;protein-RNA complex, double helix, tetraloop, internal loop, signal recognition particle, SRP, ribonucleoprotein, SIGNALING PROTEIN-RNA COMPLEX ;; SIGNALING PROTEIN/RNA
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	21.76 Å
rg_electron	21.28 Å
i0	22914100.00
molecular_weight	24240.0 kDa
excluded_volume	24787 Å³
envelope_volume	34168 Å³
shell_volume	15193 Å³
envelope_diameter	75.2 Å
shell_rg	25.44 Å
envelope_rg	21.45 Å
shape_rg	21.19 Å
total_rg	21.84 Å
total_atoms	1593
n_residues	109
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	74.0 Å
rg_real	21.95 Å
rg_real_error	0.69 Å
i0_real	2.2910e+07
i0_real_error	3.0650e+05
rg_reciprocal	21.92 Å
i0_reciprocal	22910000.0000
total_estimate	0.8447
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	18.8 Å
skewness	0.471
kurtosis	-0.394
angular_range	— – 0.3650 Å⁻¹
current_alpha	0.0000
highest_alpha	2036000.0000
n_real_points	68
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.812; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.648; Smooth: 0.893

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	4.5 S RNA DOMAIN IV
formula_weight	15930.5 kDa
mutation	G54A
src_method	syn
entity_count	1

Polymer

type	polyribonucleotide
strand_id	B
atom_count	1892

GGCUCUGUUUACCAGGUCAGGUCCGAAAGGAAGCAGCCAAGGCAGAGCC

Entity 2 polymer

description	Signal recognition particle protein
formula_weight	12699.0 kDa
mutation	C406S
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

GFDLNDFLEQLRQMKNMGGMASLMGKLPGMGQIPDNVKSQMDDKVLVRMEAIINSMTMKERAKPEIIKGSRKRRIAAGSGMQVQDVNRLLKQFDDMQRMMKKMKK

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli

Entity 3 non-polymer

description	POTASSIUM ION
formula_weight	39.1 kDa
src_method	syn
entity_count	3

Entity 4 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	4

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	299

▶

6. Citations (1)

▶

length_a	136.567 Å
length_b	78.291 Å
length_c	32.849 Å
angle_alpha	90.00 °
angle_beta	96.14 °
angle_gamma	90.00 °
z_pdb	4

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

resolution	1.800 Å
resolution_low	28.830 Å
r_factor	0.1990
r_work	0.1990
r_free	0.2210

fit	/app/data/saxs_computation/du/1dul/1dul.fit
pddf	/app/data/pr_computation/du/1dul/1dul.pr.out
profile	/app/data/saxs_computation/du/1dul/1dul.dat
