1dv4

PARTIAL STRUCTURE OF 16S RNA OF THE SMALL RIBOSOMAL SUBUNIT FROM THERMUS THERMOPHILUS

Method: X-RAY DIFFRACTION D_max: 204.9 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1dv4
deposition_date	2000-01-19
title	PARTIAL STRUCTURE OF 16S RNA OF THE SMALL RIBOSOMAL SUBUNIT FROM THERMUS THERMOPHILUS
keywords	RIBOSOMES, 30S, THERMUS THERMOPHILUS, 16S RNA, RIBOSOME; RIBOSOME
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	60.46 Å
rg_electron	62.95 Å
i0	251004000.00
molecular_weight	93588.0 kDa
excluded_volume	100720 Å³
envelope_volume	339130 Å³
shell_volume	50982 Å³
envelope_diameter	213.7 Å
shell_rg	52.74 Å
envelope_rg	59.41 Å
shape_rg	63.93 Å
total_rg	61.20 Å
total_atoms	3676
n_residues	362
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

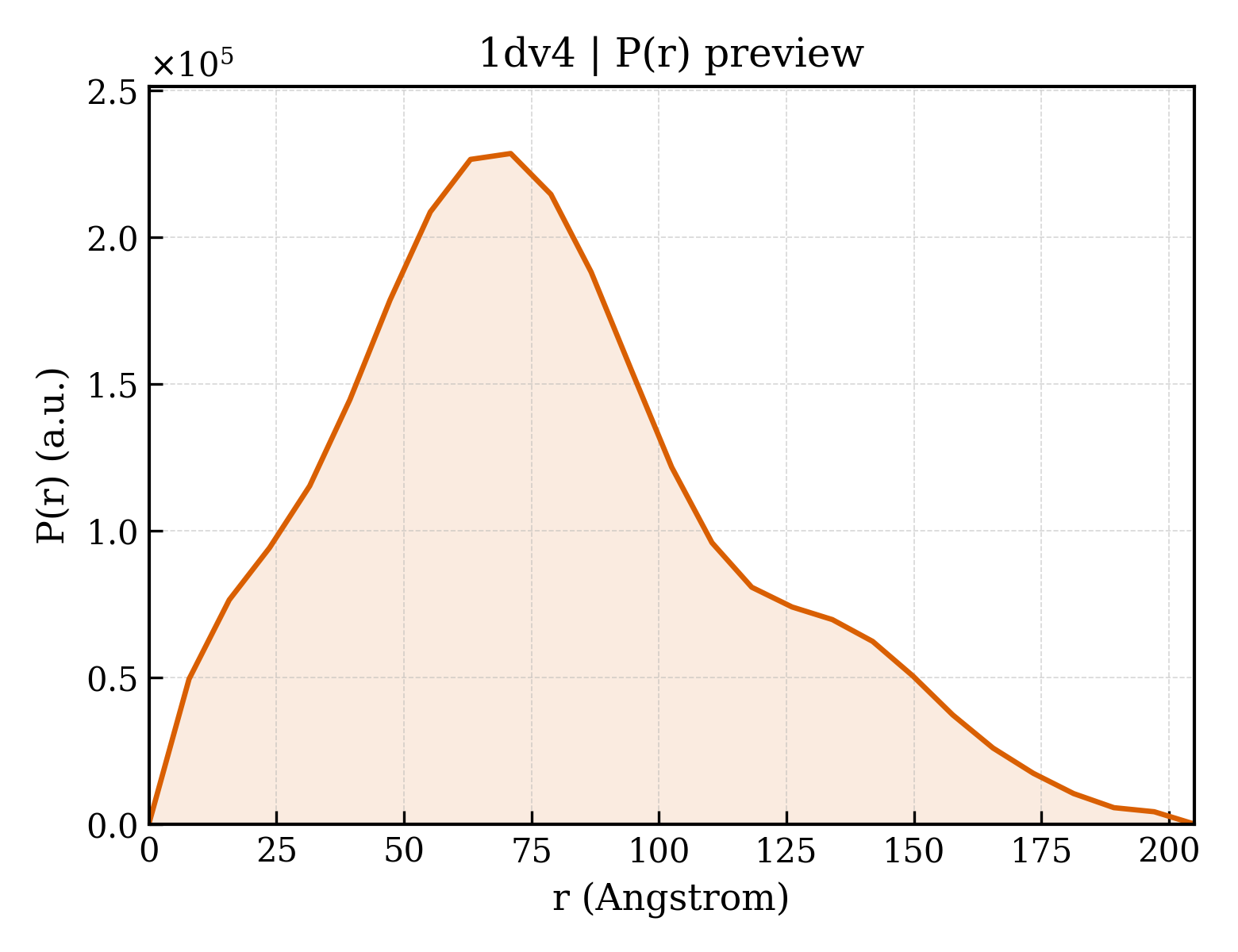

3. P(r) Analysis (GNOM)

dmax	204.9 Å
rg_real	61.01 Å
rg_real_error	2.38 Å
i0_real	2.5100e+08
i0_real_error	5.5520e+06
rg_reciprocal	59.98 Å
i0_reciprocal	250600000.0000
total_estimate	0.8044
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	70.9 Å
skewness	0.508
kurtosis	-0.137
angular_range	— – 0.1300 Å⁻¹
current_alpha	0.0000
highest_alpha	16600000.0000
n_real_points	27
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.706; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.335

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	16S RIBOSOMAL RNA
formula_weight	70941.2 kDa
src_method	nat
entity_count	1

Polymer

type	polyribonucleotide
strand_id	A
atom_count	3956

NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

Entity 2 polymer

description	RIBOSOMAL PROTEIN S5
formula_weight	15240.7 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

INPNKLELEERVVAVNRVAKVVKGGRRLRFSALVVVGDKNGHVGFGTGKAQEVPEAIRKAIEDAKKNLIEVPIVGTTIPHEVIGHFGAGEIILKPASEGTGVIAGGPARAVLELAGISDILSKSIGSNTPINMVRATFDGLKQLK

Entity 3 polymer

description	RIBOSOMAL PROTEIN S7
formula_weight	15342.8 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	G

LQPDLVYGDVLVTAFINKIMRDGKKNLAARIFYDACKIIQEKTGQEPLKVFKQAVENVKPRMEVRSRRVGGANYQVPMEVSPRRQQSLALRWLVQAANQRPERRAAVRIAHELMDAAEGKGGAVKKKEDVERMAE

Entity 4 non-polymer

description	OCTADECATUNGSTENYL DIPHOSPHATE
formula_weight	4363.0 kDa
src_method	syn
entity_count	1

▶

6. Citations (4)

▶

length_a	407.100 Å
length_b	407.100 Å
length_c	176.008 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 41 21 2
int_tables_number	92
crystal_system	—

resolution	4.500 Å
resolution_low	30.000 Å
r_factor	—
r_work	—
r_free	—

fit	/app/data/saxs_computation/dv/1dv4/1dv4.fit
pddf	/app/data/pr_computation/dv/1dv4/1dv4.pr.out
profile	/app/data/saxs_computation/dv/1dv4/1dv4.dat
