1dvk
CRYSTAL STRUCTURE OF THE FUNCTIONAL DOMAIN OF THE SPLICING FACTOR PRP18
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1dvk |
| deposition_date | 2000-01-21 |
| title | CRYSTAL STRUCTURE OF THE FUNCTIONAL DOMAIN OF THE SPLICING FACTOR PRP18 |
| keywords | pre-mRNA Splicing factor, Prp18, RNA BINDING PROTEIN; RNA BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.81 Å |
| rg_electron | 26.16 Å |
| i0 | 18083000.00 |
| molecular_weight | 34442.0 kDa |
| excluded_volume | 44091 ų |
| envelope_volume | 55601 ų |
| shell_volume | 19024 ų |
| envelope_diameter | 85.5 Å |
| shell_rg | 31.43 Å |
| envelope_rg | 25.99 Å |
| shape_rg | 26.08 Å |
| total_rg | 27.14 Å |
| total_atoms | 2427 |
| n_residues | 299 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

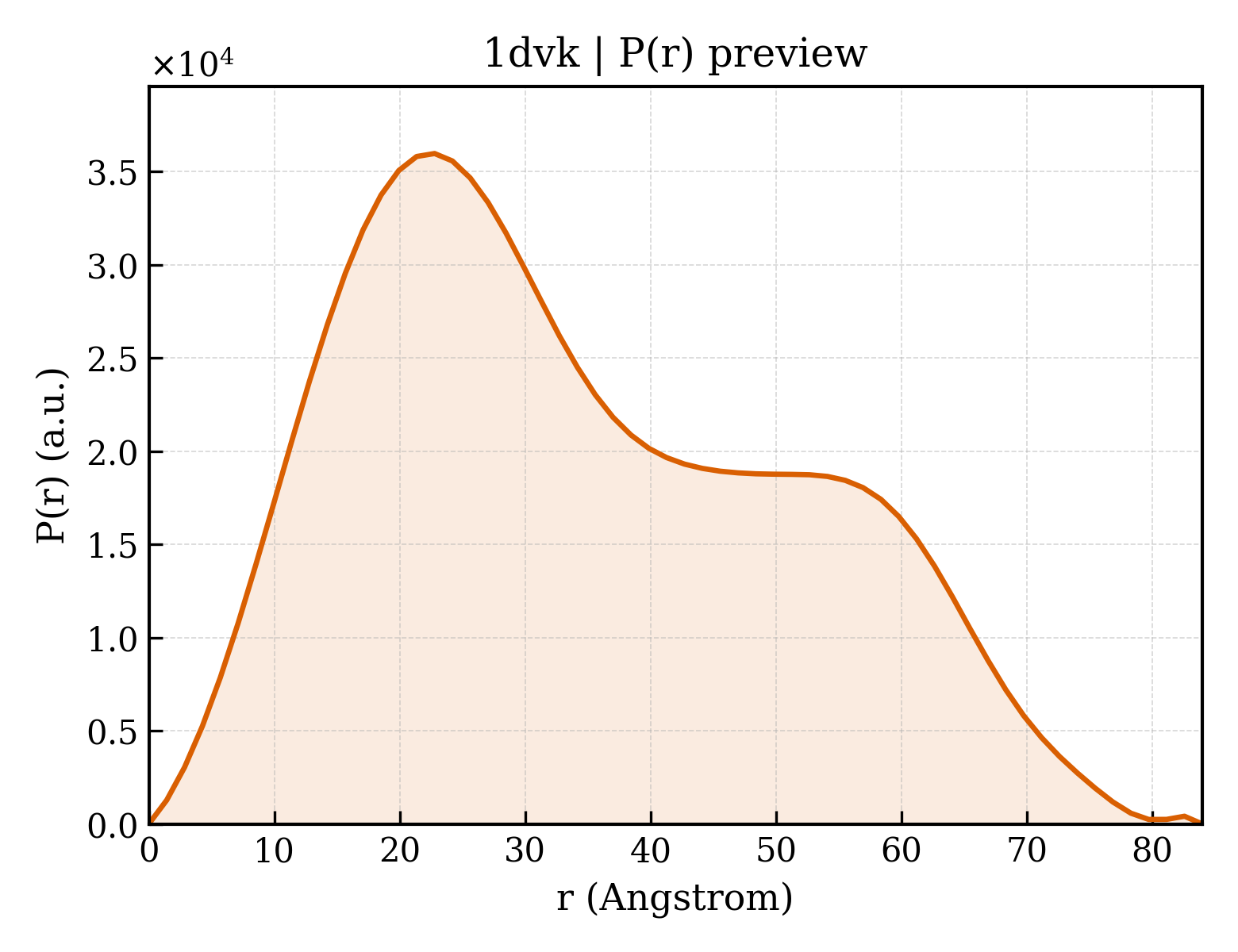

3. P(r) Analysis (GNOM)
| dmax | 84.0 Å |
| rg_real | 27.04 Å |
| rg_real_error | 0.76 Å |
| i0_real | 1.8080e+07 |
| i0_real_error | 2.8060e+05 |
| rg_reciprocal | 26.97 Å |
| i0_reciprocal | 18080000.0000 |
| total_estimate | 0.8170 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.8 Å |
| skewness | 0.393 |
| kurtosis | -0.807 |
| angular_range | — – 0.2950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2913000.0000 |
| n_real_points | 60 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.733; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.644; Smooth: 0.773 |
