1dxd
Photolyzed CO complex of Myoglobin Mb-YQR at 20K
SAXS Profile

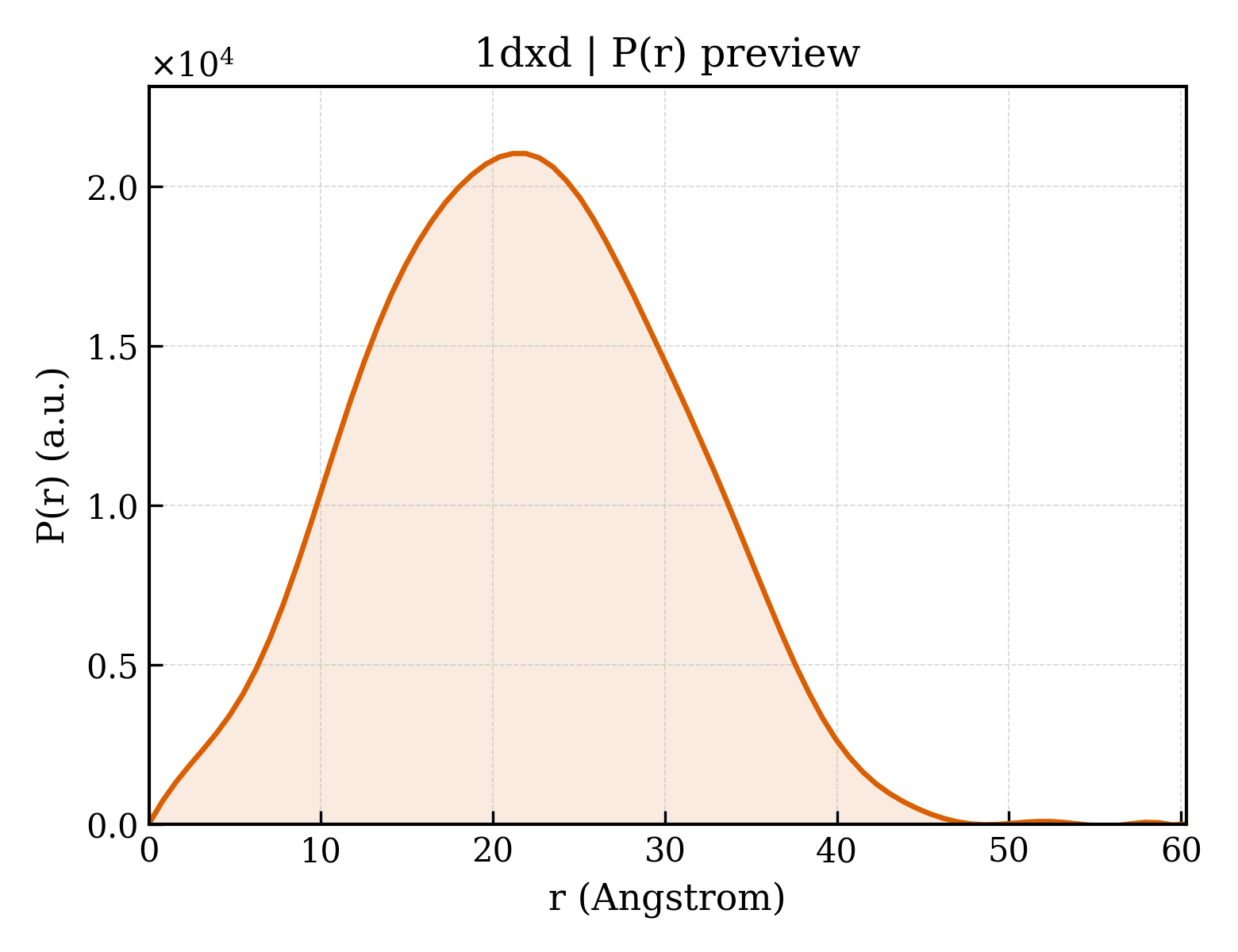

P(r) Distribution
1. Structure Basics
| entry_id | 1dxd |
| deposition_date | 2000-01-03 |
| title | Photolyzed CO complex of Myoglobin Mb-YQR at 20K |
| keywords | OXYGEN STORAGE, CO COMPLEX, RESPIRATORY PROTEIN; OXYGEN STORAGE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.67 Å |
| rg_electron | 15.16 Å |
| i0 | 6178380.00 |
| molecular_weight | 18259.0 kDa |
| excluded_volume | 22962 ų |
| envelope_volume | 25329 ų |
| shell_volume | 14122 ų |
| envelope_diameter | 50.6 Å |
| shell_rg | 21.01 Å |
| envelope_rg | 15.37 Å |
| shape_rg | 15.10 Å |
| total_rg | 16.40 Å |
| total_atoms | 1286 |
| n_residues | 154 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 60.3 Å |
| rg_real | 16.56 Å |
| rg_real_error | 0.51 Å |
| i0_real | 6.1780e+06 |
| i0_real_error | 7.9740e+04 |
| rg_reciprocal | 16.57 Å |
| i0_reciprocal | 6178000.0000 |
| total_estimate | 0.7641 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 51.7 Å |
| skewness | 0.082 |
| kurtosis | -0.492 |
| angular_range | — – 0.4750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1131000.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.647; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.000 |
