Inhibition of the Hepatitis C Virus NS3/4A Protease. The Crystal Structures of Two Protease-Inhibitor Complexes (apo structure)

entry_id	1dxp
deposition_date	2000-01-13
title	Inhibition of the Hepatitis C Virus NS3/4A Protease. The Crystal Structures of Two Protease-Inhibitor Complexes (apo structure)
keywords	SERINE PROTEASE, NS3, NS4A, HEPATITIS C VIRUS, PROTEASE INHIBITION, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

rg_guinier	25.91 Å
rg_electron	25.80 Å
i0	26829600.00
molecular_weight	39294.0 kDa
excluded_volume	49034 ų
envelope_volume	58328 ų
shell_volume	20475 ų
envelope_diameter	91.4 Å
shell_rg	30.68 Å
envelope_rg	26.09 Å
shape_rg	25.81 Å
total_rg	26.34 Å
total_atoms	2742
n_residues	374
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	89.3 Å
rg_real	26.19 Å
rg_real_error	0.84 Å
i0_real	2.6830e+07
i0_real_error	4.3750e+05
rg_reciprocal	26.10 Å
i0_reciprocal	26830000.0000
total_estimate	0.7969
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	22.0 Å
skewness	0.550
kurtosis	-0.414
angular_range	— – 0.3050 Å−1
current_alpha	0.0000
highest_alpha	10820000.0000
n_real_points	62
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.608; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.574; Smooth: 0.956

Unit Cell

length_a	92.980 Å
length_b	92.980 Å
length_c	81.810 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

Symmetry

space_group	P 61
int_tables_number	169
crystal_system	—

Refinement

resolution	2.400 Å
resolution_low	20.000 Å
r_factor	0.1960
r_work	0.1980
r_free	0.2980

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/dx/1dxp/pr_distribution.json
• pr_output /app/data/pr_computation/dx/1dxp/1dxp.pr.out

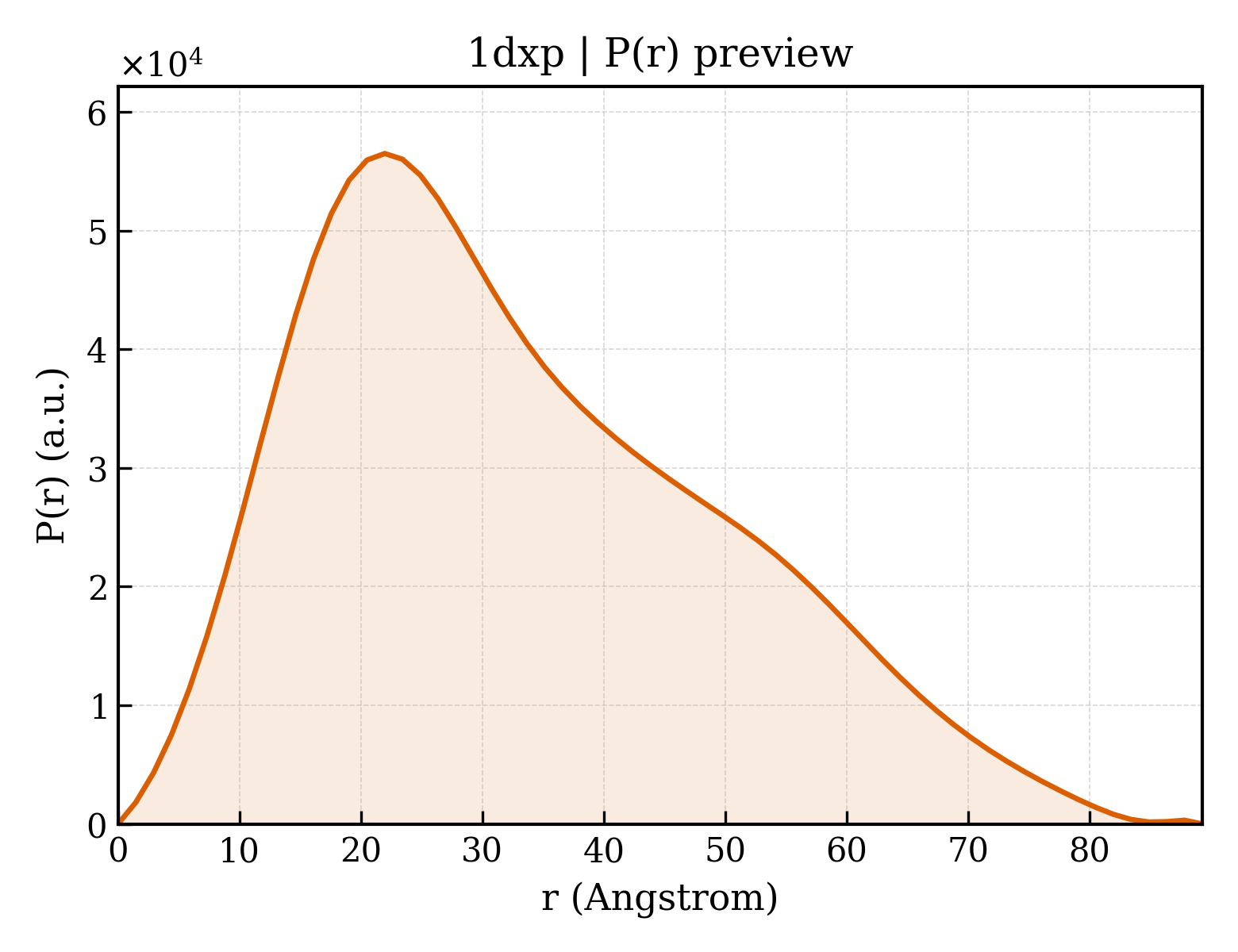

• pr_plot /app/data/visualization/pr_computation/dx/1dxp/1dxp_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/dx/1dxp/1dxp.dat
• saxs_fit /app/data/saxs_computation/dx/1dxp/1dxp.fit
• saxs_log /app/data/saxs_computation/dx/1dxp/1dxp.log
• saxs_plot /app/data/visualization/saxs_computation/dx/1dxp/1dxp_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/dx/1dxp/1dxp.fit
pddf	/app/data/pr_computation/dx/1dxp/1dxp.pr.out
profile	/app/data/saxs_computation/dx/1dxp/1dxp.dat
