Endoglucanase CEL6B from Humicola insolens

Method: X-RAY DIFFRACTION D_max: 83.0 Å Quality: EXCELLENT

SAXS Profile

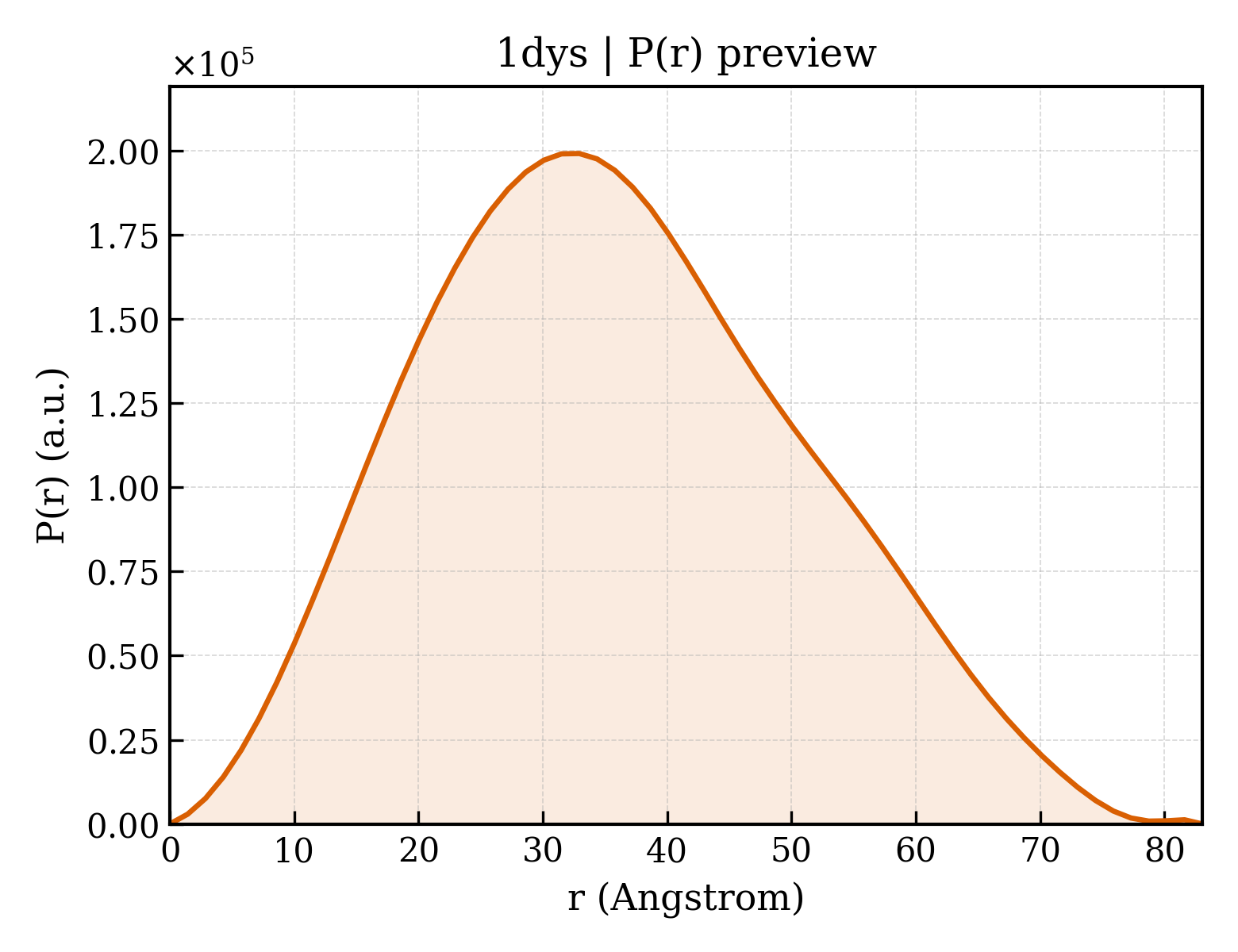

P(r) Distribution

▼

1. Structure Basics

entry_id	1dys
deposition_date	2000-02-08
title	Endoglucanase CEL6B from Humicola insolens
keywords	CELLULASE, HYDROLASE, CELLULOSE DEGRADATION, GLYCOSIDE HYDROLASE FAMILY 6; CELLULASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.46 Å
rg_electron	26.35 Å
i0	97808400.00
molecular_weight	74727.0 kDa
excluded_volume	92274 Å³
envelope_volume	108810 Å³
shell_volume	33934 Å³
envelope_diameter	87.6 Å
shell_rg	34.36 Å
envelope_rg	26.18 Å
shape_rg	26.34 Å
total_rg	27.16 Å
total_atoms	5270
n_residues	690
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	83.0 Å
rg_real	27.36 Å
rg_real_error	0.37 Å
i0_real	9.7810e+07
i0_real_error	1.3860e+06
rg_reciprocal	27.39 Å
i0_reciprocal	97810000.0000
total_estimate	0.9067
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	32.9 Å
skewness	0.247
kurtosis	-0.510
angular_range	— – 0.2900 Å⁻¹
current_alpha	0.0000
highest_alpha	18140000.0000
n_real_points	59
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.956; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.918

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	109.917 Å
length_b	104.451 Å
length_c	53.788 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 21 21 2
int_tables_number	18
crystal_system	—

resolution	1.600 Å
resolution_low	15.000 Å
r_factor	—
r_work	0.1800
r_free	0.2400

description	ENDOGLUCANASE
formula_weight	37785.8 kDa
ec_number	3.2.1.4
src_method	man
entity_count	2

type	polypeptide(L)
strand_id	A,B
atom_count	6181

Endoglucanase CEL6B from Humicola insolens

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	HUMICOLA INSOLENS
ncbi_taxonomy_id	34413
host_organism	ASPERGILLUS ORYZAE

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	901

fit	/app/data/saxs_computation/dy/1dys/1dys.fit
pddf	/app/data/pr_computation/dy/1dys/1dys.pr.out
profile	/app/data/saxs_computation/dy/1dys/1dys.dat
