1dz0
REDUCED AZURIN II FROM ALCALIGENES XYLOSOXIDANS
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1dz0 |
| deposition_date | 2000-02-11 |
| title | REDUCED AZURIN II FROM ALCALIGENES XYLOSOXIDANS |
| keywords | ELECTRON TRANSPORT, CUPREDOXIN, CUPROPROTEIN; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.75 Å |
| rg_electron | 13.64 Å |
| i0 | 3984360.00 |
| molecular_weight | 13780.0 kDa |
| excluded_volume | 17063 ų |
| envelope_volume | 18726 ų |
| shell_volume | 11743 ų |
| envelope_diameter | 46.5 Å |
| shell_rg | 19.33 Å |
| envelope_rg | 13.94 Å |
| shape_rg | 13.59 Å |
| total_rg | 14.91 Å |
| total_atoms | 958 |
| n_residues | 129 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

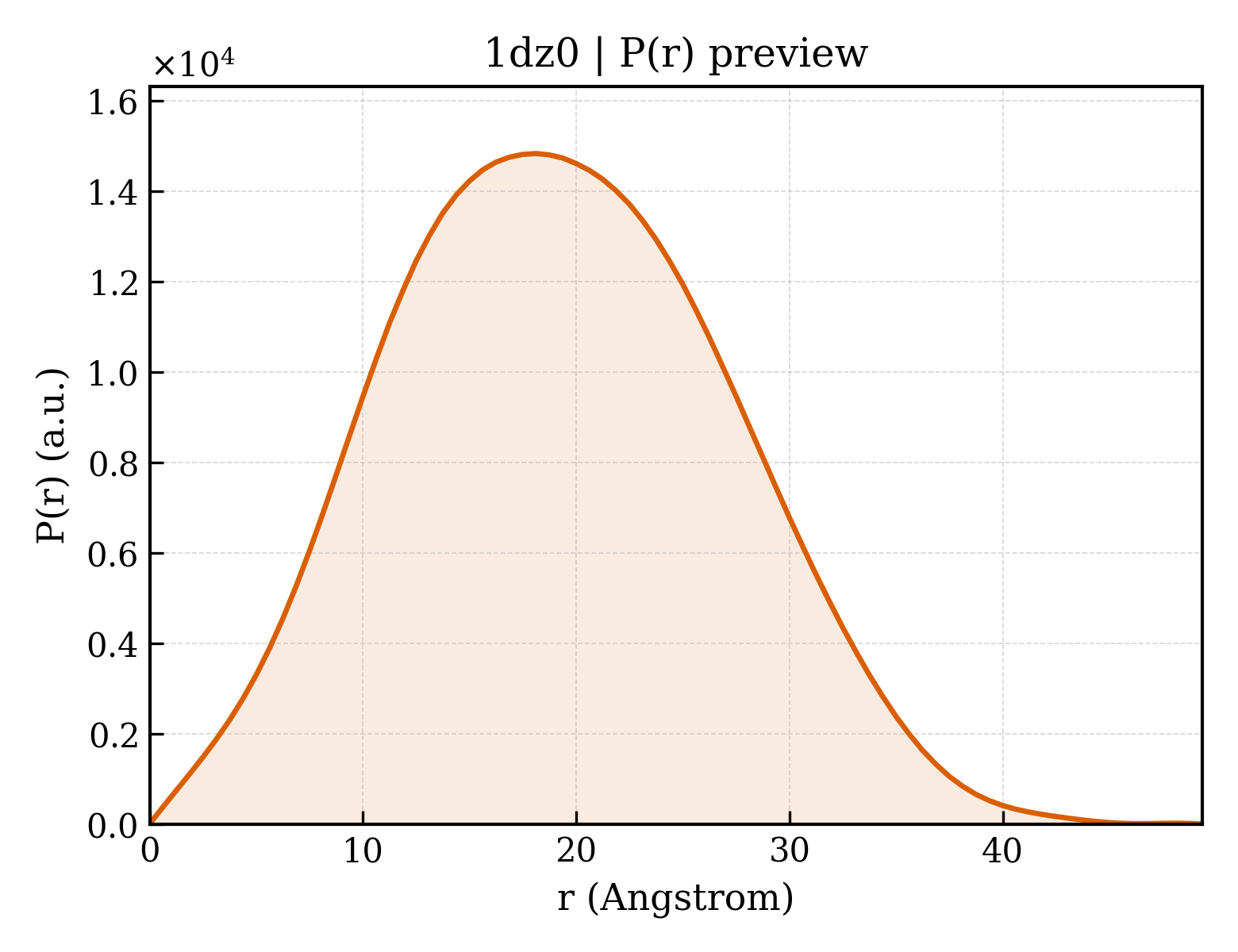

3. P(r) Analysis (GNOM)
| dmax | 49.4 Å |
| rg_real | 14.67 Å |
| rg_real_error | 0.26 Å |
| i0_real | 3.9840e+06 |
| i0_real_error | 3.9860e+04 |
| rg_reciprocal | 14.68 Å |
| i0_reciprocal | 3984000.0000 |
| total_estimate | 0.8817 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.1 Å |
| skewness | 0.156 |
| kurtosis | -0.431 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 972800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.821; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.998 |
