1e7b

Crystal structure of human serum albumin complexed with the general anesthetic halothane

Method: X-RAY DIFFRACTION D_max: 141.7 Å Quality: REASONABLE

SAXS Profile

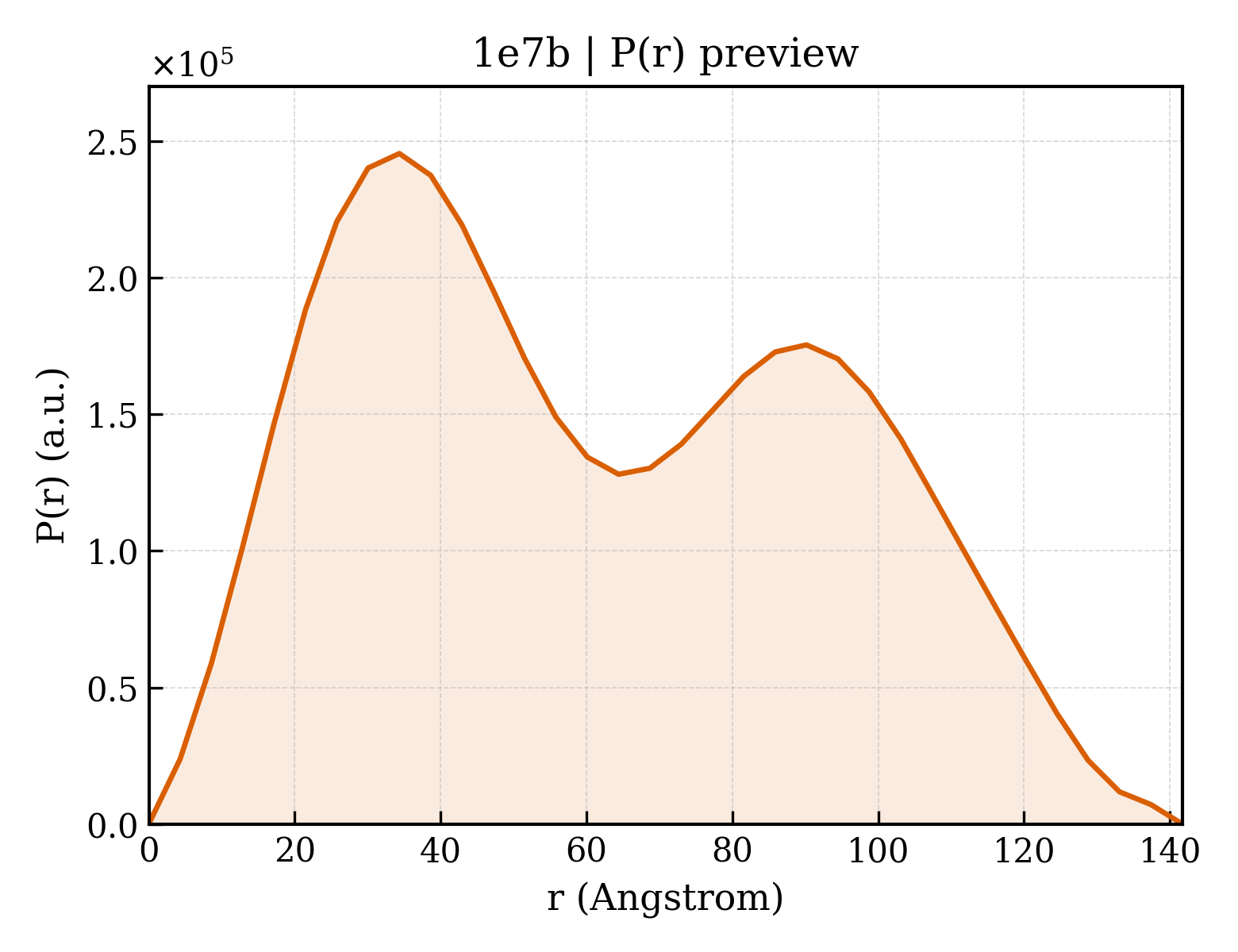

P(r) Distribution

▼

1. Structure Basics

entry_id	1e7b
deposition_date	2000-08-26
title	Crystal structure of human serum albumin complexed with the general anesthetic halothane
keywords	CARRIER PROTEIN, ALBUMIN, GENERAL ANESTHETIC, HALOTHANE; CARRIER PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	48.39 Å
rg_electron	48.51 Å
i0	232516000.00
molecular_weight	123150.0 kDa
excluded_volume	152410 Å³
envelope_volume	231800 Å³
shell_volume	40223 Å³
envelope_diameter	153.3 Å
shell_rg	52.20 Å
envelope_rg	46.80 Å
shape_rg	48.51 Å
total_rg	48.64 Å
total_atoms	8593
n_residues	1154
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	141.7 Å
rg_real	48.79 Å
rg_real_error	1.36 Å
i0_real	2.3250e+08
i0_real_error	4.3970e+06
rg_reciprocal	48.39 Å
i0_reciprocal	232400000.0000
total_estimate	0.7382
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	34.4 Å
skewness	0.246
kurtosis	-1.069
angular_range	— – 0.1650 Å⁻¹
current_alpha	0.0000
highest_alpha	16940000.0000
n_real_points	34
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.653; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.635; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	SERUM ALBUMIN
formula_weight	66571.2 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	8650

DAHKSEVAHRFKDLGEENFKALVLIAFAQYLQQCPFEDHVKLVNEVTEFAKTCVADESAENCDKSLHTLFGDKLCTVATLRETYGEMADCCAKQEPERNECFLQHKDDNPNLPRLVRPEVDVMCTAFHDNEETFLKKYLYEIARRHPYFYAPELLFFAKRYKAAFTECCQAADKAACLLPKLDELRDEGKASSAKQRLKCASLQKFGERAFKAWAVARLSQRFPKAEFAEVSKLVTDLTKVHTECCHGDLLECADDRADLAKYICENQDSISSKLKECCEKPLLEKSHCIAEVENDEMPADLPSLAADFVESKDVCKNYAEAKDVFLGMFLYEYARRHPDYSVVLLLRLAKTYETTLEKCCAAADPHECYAKVFDEFKPLVEEPQNLIKQNCELFEQLGEYKFQNALLVRYTKKVPQVSTPTLVEVSRNLGKVGSKCCKHPEAKRMPCAEDYLSVVLNQLCVLHEKTPVSDRVTKCCTESLVNRRPCFSALEVDETYVPKEFNAETFTFHADICTLSEKERQIKKQTALVELVKHKPKATKEQLKAVMDDFAAFVEKCCKADDKETCFAEEGKKLVAASQAALGL

Source

organism	HOMO SAPIENS
common_name	HUMAN
ncbi_taxonomy_id	9606
host_organism	SACCHAROMYCES CEREVISIAE

Entity 2 non-polymer

description	2-BROMO-2-CHLORO-1,1,1-TRIFLUOROETHANE
formula_weight	197.4 kDa
src_method	syn
entity_count	6

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	57

▶

6. Citations (1)

▶

length_a	54.580 Å
length_b	54.960 Å
length_c	120.000 Å
angle_alpha	81.39 °
angle_beta	90.79 °
angle_gamma	65.55 °
z_pdb	2

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.380 Å
resolution_low	17.000 Å
r_factor	0.2700
r_work	0.2700
r_free	0.3030

fit	/app/data/saxs_computation/e7/1e7b/1e7b.fit
pddf	/app/data/pr_computation/e7/1e7b/1e7b.pr.out
profile	/app/data/saxs_computation/e7/1e7b/1e7b.dat
