1e8p
Characterisation of the cellulose docking domain from Piromyces equi

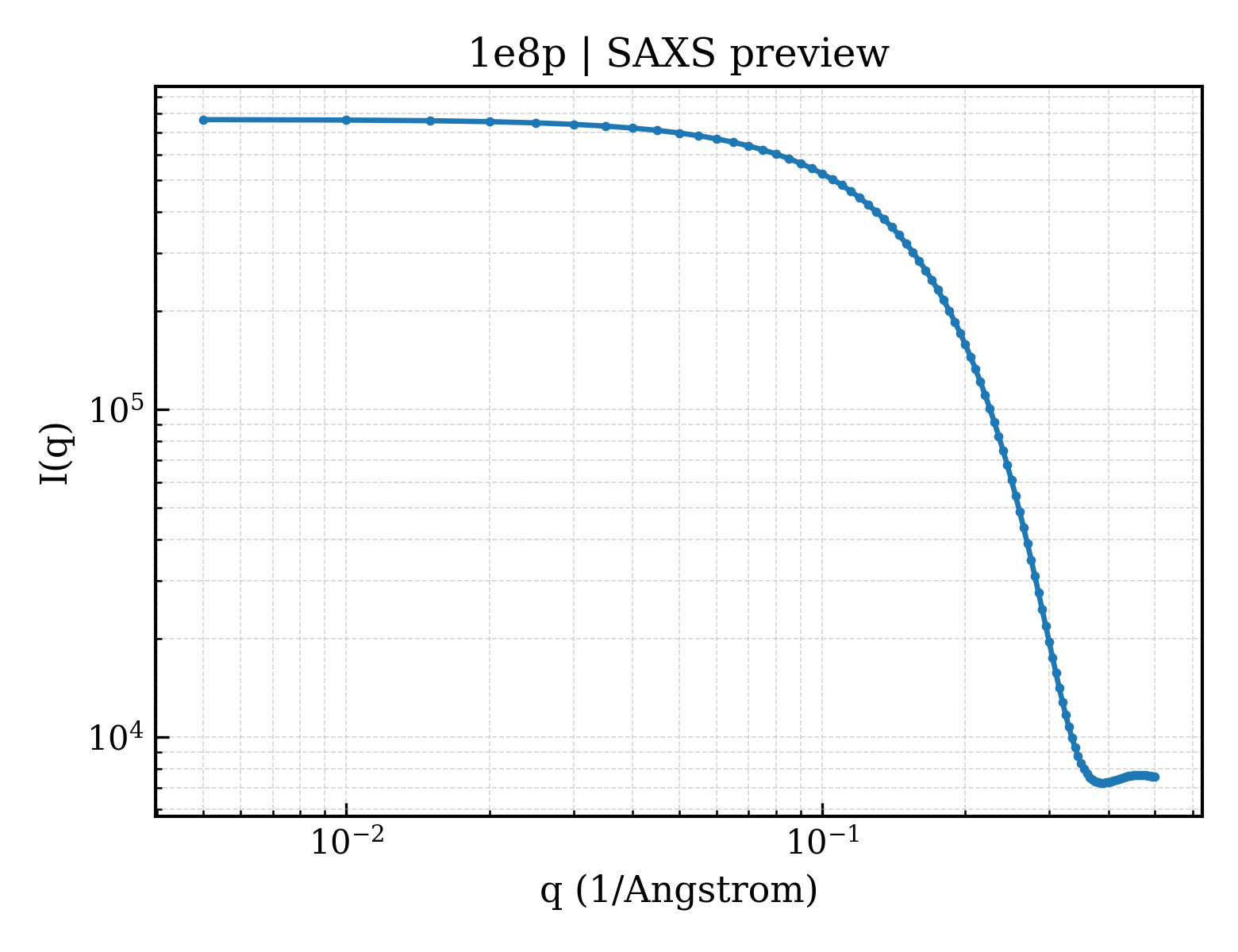

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1e8p |
| deposition_date | 2000-09-28 |
| title | Characterisation of the cellulose docking domain from Piromyces equi |
| keywords | CELLULOSE DOCKING DOMAIN, CELLULASE; CELLULOSE DOCKING DOMAIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.67 Å |
| rg_electron | 9.33 Å |
| i0 | 766676.00 |
| molecular_weight | 5041.0 kDa |
| excluded_volume | 5981 ų |
| envelope_volume | 6559 ų |
| shell_volume | 6268 ų |
| envelope_diameter | 31.6 Å |
| shell_rg | 14.42 Å |
| envelope_rg | 9.83 Å |
| shape_rg | 9.31 Å |
| total_rg | 10.77 Å |
| total_atoms | 649 |
| n_residues | 46 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 34.4 Å |
| rg_real | 10.62 Å |
| rg_real_error | 0.18 Å |
| i0_real | 7.6670e+05 |
| i0_real_error | 7.1980e+03 |
| rg_reciprocal | 10.62 Å |
| i0_reciprocal | 766700.0000 |
| total_estimate | 0.8894 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 13.1 Å |
| skewness | 0.207 |
| kurtosis | -0.275 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 205500.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.857; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.987 |
