SAXSdb — 1eab

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DIHYDROLIPOYL-TRANSACETYLASE

Azotobacter vinelandii

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 24	COENZYME A × 24 6,8-DIMERCAPTO-OCTANOIC ACID AMIDE × 24 water × 24	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ODP2_AZOVI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–243； UniProt 395–637

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1eab
Deposition date deposition_date	1992-12-16
Structure title title	ATOMIC STRUCTURE OF THE CUBIC CORE OF THE PYRUVATE DEHYDROGENASE MULTIENZYME COMPLEX
Keywords keywords	DIHYDROLIPOAMIDE ACETYLTRANSFERASE; DIHYDROLIPOAMIDE ACETYLTRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1eab__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1eab__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

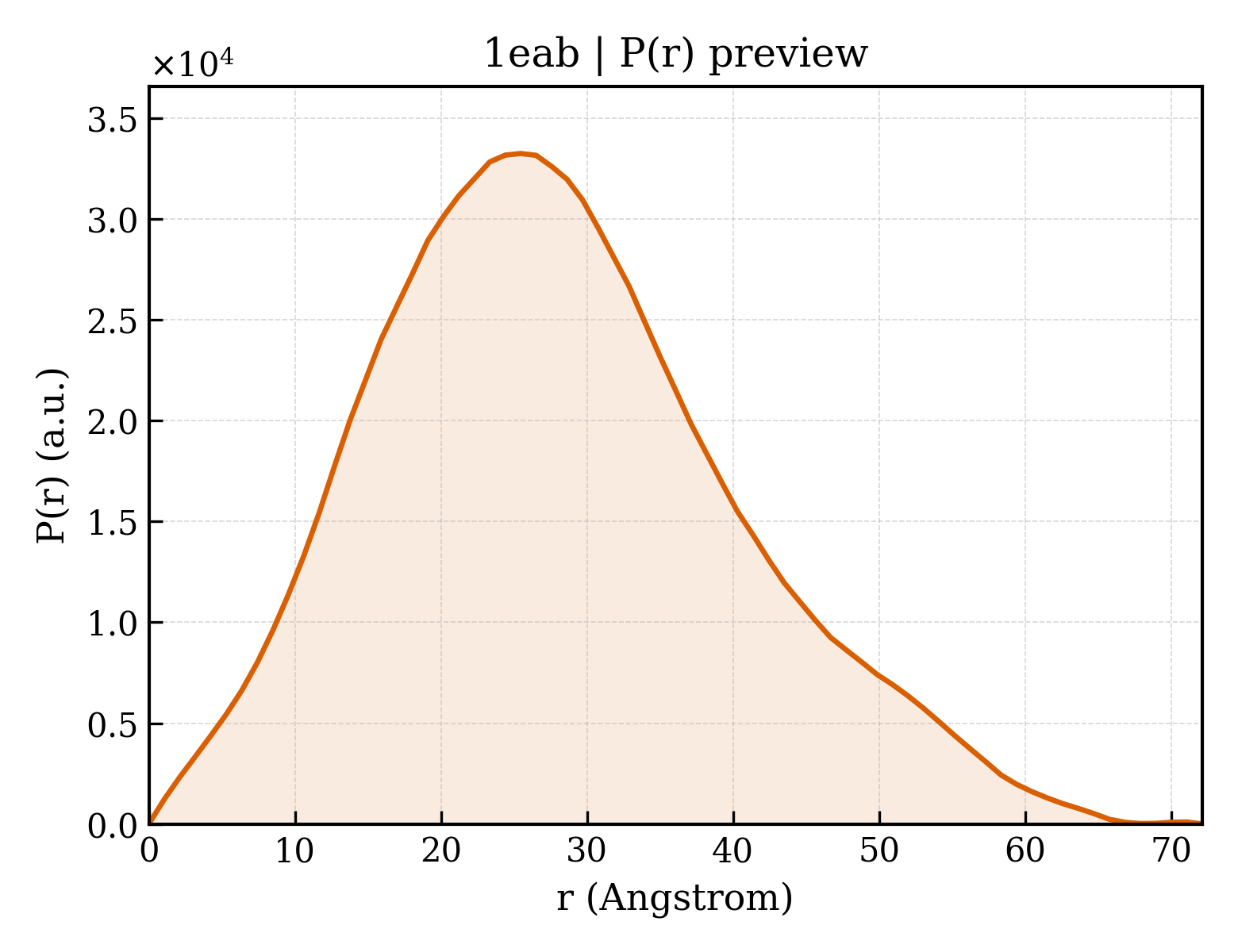

1eab__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	63.23 Å
Rg (electron density)	62.33 Å
Total Rg	62.46 Å
Atom count	45024
Residues	5832
Excluded volume	813070 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1eab__assembly_1__model_1`	24-meric （24）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	DIHYDROLIPOYL-TRANSACETYLASE
Molecular weight formula_weight	26241.7 kDa
EC 编号 ec_number	2.3.1.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1918

IPPIPPVDFAKYGEIEEVPMTRLMQIGATNLHRSWLNVPHVTQFESADITELEAFRVAQKAVAKKAGVKLTVLPLLLKACAYLLKELPDFNSSLAPSGQALIRKKYVHIGFAVDTPDGLLVPVIRNVDQKSLLQLAAEAAELAEKARSKKLGADAMQGACFTISSLGHIGGTAFTPIVNAPEVAILGVSKASMQPVWDGKAFQPRLMLPLSLSYDHRVINGAAAARFTKRLGDLLADIRAILL

Source Source

Source organism organism	Azotobacter vinelandii
NCBI taxonomy ID ncbi_taxonomy_id	354

Entity 2 Entity 2 non-polymer

Description description	COENZYME A
Molecular weight formula_weight	767.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	6,8-DIMERCAPTO-OCTANOIC ACID AMIDE
Molecular weight formula_weight	207.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	42

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1eaba_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.1 — CAT-like

CATH v4.4 (1 domains)

Domain ID domain_id	1eabA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

▶

Unit-cell length a length_a	225.540 Å
Unit-cell length b length_b	225.540 Å
Unit-cell length c length_c	225.540 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	96

Space group space_group	F 4 3 2
Space-group number int_tables_number	209
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1980
R_work r_work	0.1980
R_free r_free	—
