1ehh
CRYSTAL STRUCTURE OF URTICA DIOICA AGGLUTININ ISOLECTIN VI COMPLEX WITH TRI-N-ACETYLCHITOTRIOSE

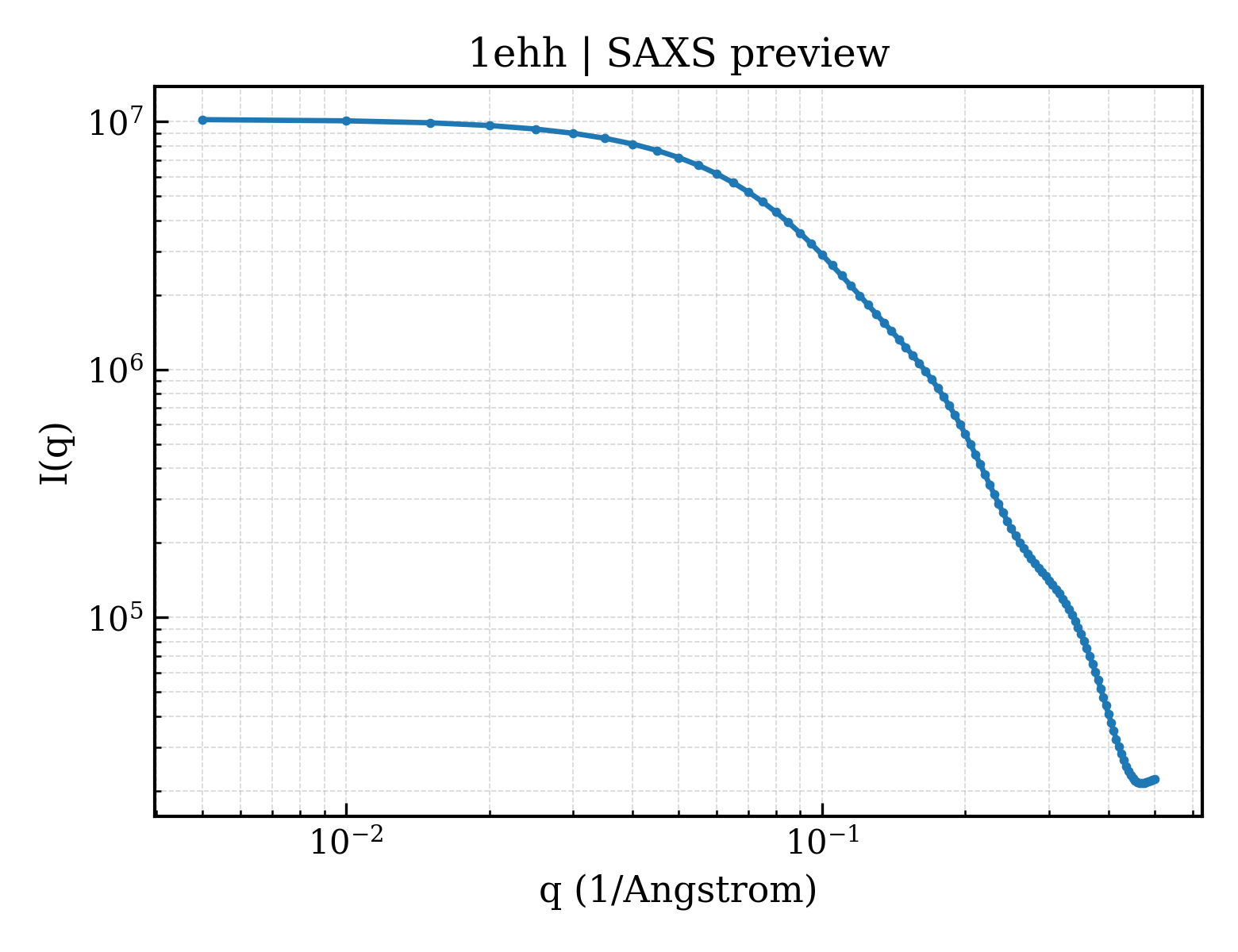

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1ehh |
| deposition_date | 2000-02-21 |
| title | CRYSTAL STRUCTURE OF URTICA DIOICA AGGLUTININ ISOLECTIN VI COMPLEX WITH TRI-N-ACETYLCHITOTRIOSE |
| keywords | Two homologous hevein-like domains, PLANT PROTEIN; PLANT PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.71 Å |
| rg_electron | 20.64 Å |
| i0 | 10231100.00 |
| molecular_weight | 19940.0 kDa |
| excluded_volume | 23150 ų |
| envelope_volume | 28751 ų |
| shell_volume | 12998 ų |
| envelope_diameter | 72.8 Å |
| shell_rg | 24.87 Å |
| envelope_rg | 20.78 Å |
| shape_rg | 20.69 Å |
| total_rg | 21.08 Å |
| total_atoms | 1368 |
| n_residues | 176 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 74.0 Å |
| rg_real | 20.92 Å |
| rg_real_error | 0.60 Å |
| i0_real | 1.0230e+07 |
| i0_real_error | 1.3500e+05 |
| rg_reciprocal | 20.88 Å |
| i0_reciprocal | 10230000.0000 |
| total_estimate | 0.8041 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 19.3 Å |
| skewness | 0.457 |
| kurtosis | -0.515 |
| angular_range | — – 0.3850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 721100.0000 |
| n_real_points | 70 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.677; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.464; Smooth: 0.952 |
