64M-2 ANTIBODY FAB COMPLEXED WITH D(5HT)(6-4)T

entry_id	1ehl
deposition_date	2000-02-21
title	64M-2 ANTIBODY FAB COMPLEXED WITH D(5HT)(6-4)T
keywords	IMMUNOGLOBULIN, PROTEIN-DNA COMPLEX, DNA PHOTOPRODUCT, IMMUNE SYSTEM; IMMUNE SYSTEM
method	X-RAY DIFFRACTION

rg_guinier	25.73 Å
rg_electron	24.70 Å
i0	38960700.00
molecular_weight	47687.0 kDa
excluded_volume	59313 ų
envelope_volume	72417 ų
shell_volume	24753 ų
envelope_diameter	81.0 Å
shell_rg	31.66 Å
envelope_rg	24.31 Å
shape_rg	24.69 Å
total_rg	25.50 Å
total_atoms	3355
n_residues	435
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	79.0 Å
rg_real	25.71 Å
rg_real_error	0.50 Å
i0_real	3.8960e+07
i0_real_error	5.0100e+05
rg_reciprocal	25.72 Å
i0_reciprocal	38960000.0000
total_estimate	0.9138
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	28.0 Å
skewness	0.270
kurtosis	-0.564
angular_range	— – 0.3100 Å−1
current_alpha	0.0000
highest_alpha	6417000.0000
n_real_points	63
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.975; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.961

Unit Cell

length_a	144.500 Å
length_b	48.062 Å
length_c	77.939 Å
angle_alpha	90.00 °
angle_beta	104.69 °
angle_gamma	90.00 °
z_pdb	4

Symmetry

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

Refinement

resolution	2.400 Å
resolution_low	10.000 Å
r_factor	0.1990
r_work	0.1920
r_free	0.2790

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/eh/1ehl/pr_distribution.json
• pr_output /app/data/pr_computation/eh/1ehl/1ehl.pr.out

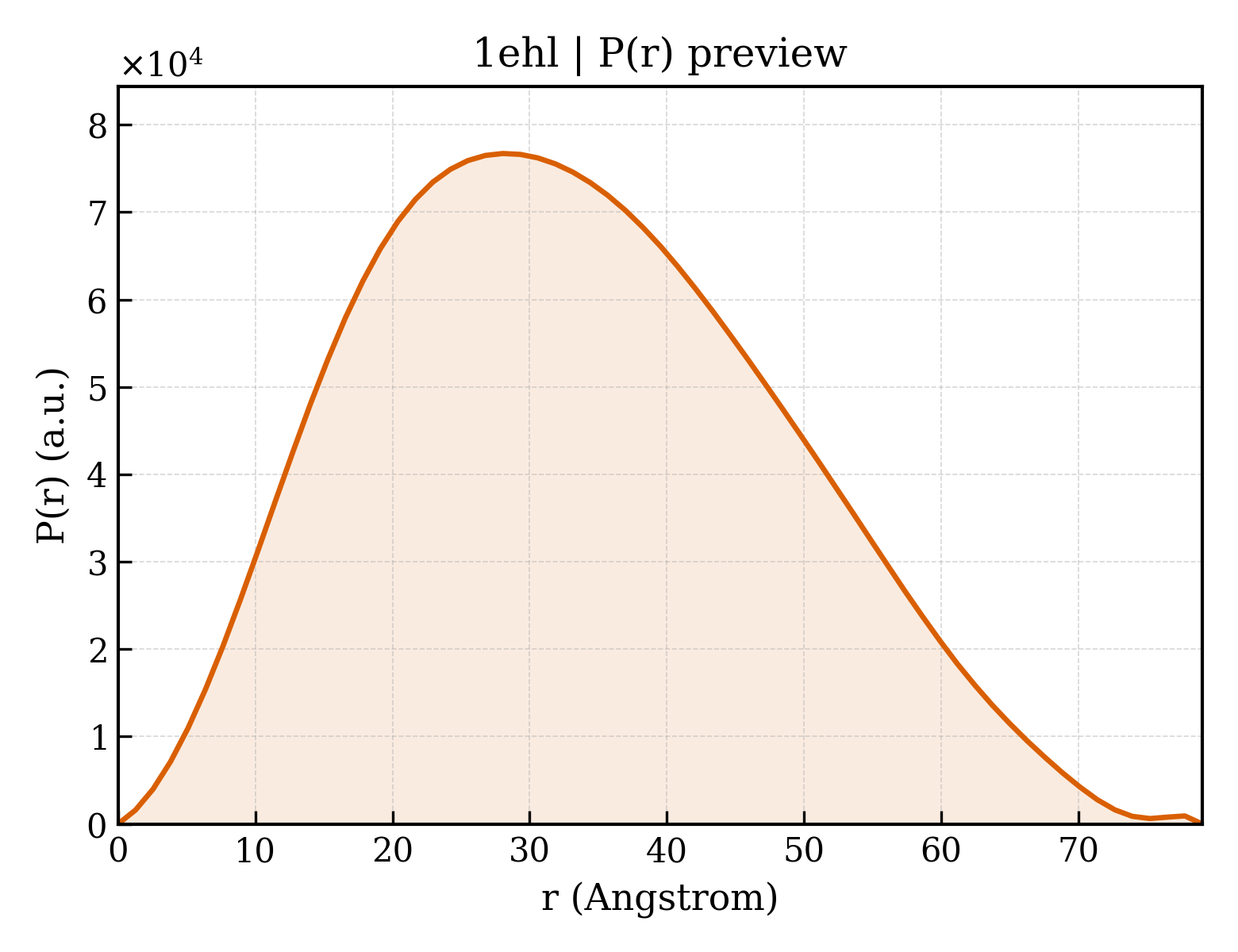

• pr_plot /app/data/visualization/pr_computation/eh/1ehl/1ehl_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/eh/1ehl/1ehl.dat
• saxs_fit /app/data/saxs_computation/eh/1ehl/1ehl.fit
• saxs_log /app/data/saxs_computation/eh/1ehl/1ehl.log
• saxs_plot /app/data/visualization/saxs_computation/eh/1ehl/1ehl_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/eh/1ehl/1ehl.fit
pddf	/app/data/pr_computation/eh/1ehl/1ehl.pr.out
profile	/app/data/saxs_computation/eh/1ehl/1ehl.dat
