1el6
STRUCTURE OF BACTERIOPHAGE T4 GENE PRODUCT 11, THE INTERFACE BETWEEN THE BASEPLATE AND SHORT TAIL FIBERS
SAXS Profile

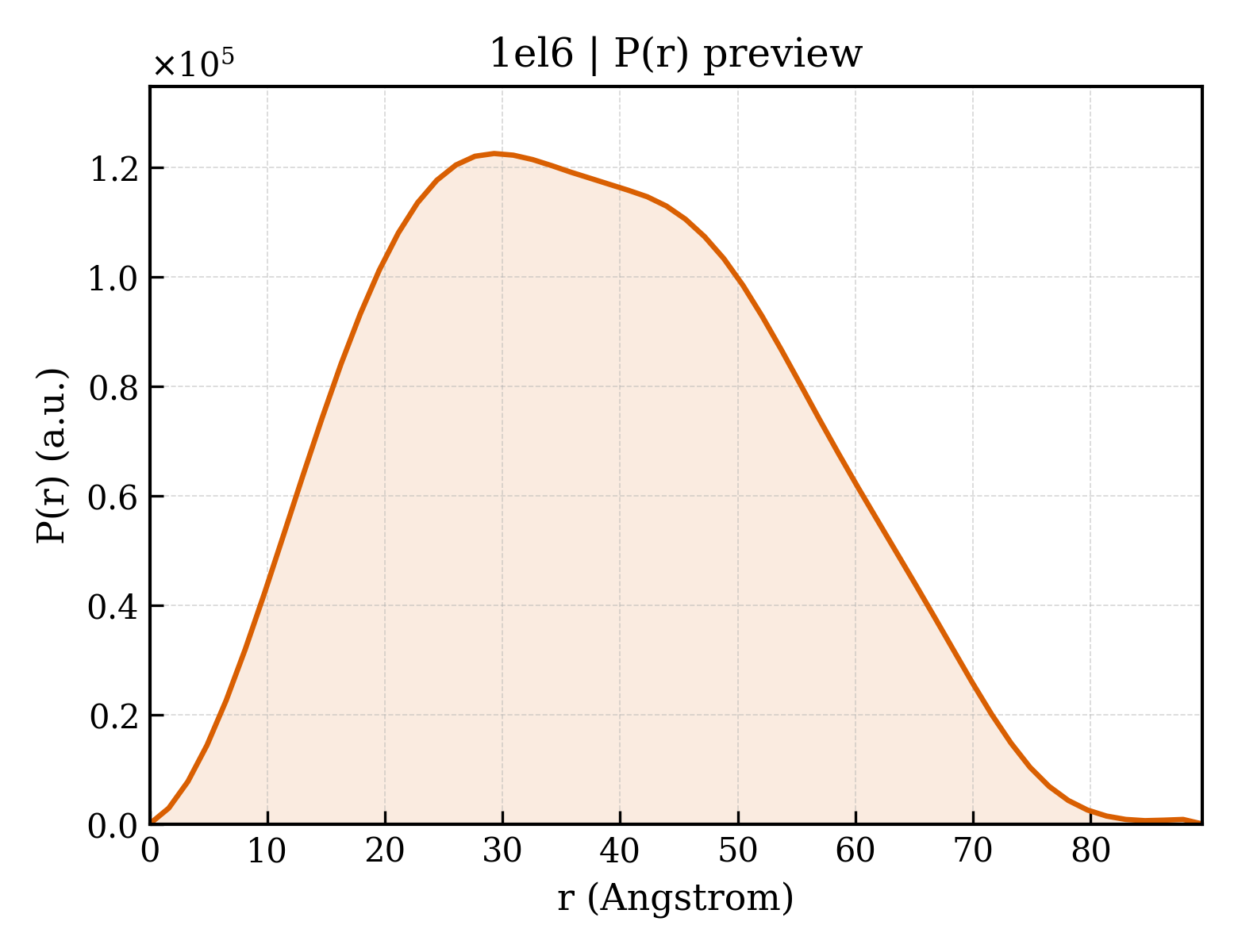

P(r) Distribution
1. Structure Basics
| entry_id | 1el6 |
| deposition_date | 2000-03-13 |
| title | STRUCTURE OF BACTERIOPHAGE T4 GENE PRODUCT 11, THE INTERFACE BETWEEN THE BASEPLATE AND SHORT TAIL FIBERS |
| keywords | beta annulus, coiled coil, a fiber attachment protein, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 28.86 Å |
| rg_electron | 28.38 Å |
| i0 | 72515200.00 |
| molecular_weight | 67675.0 kDa |
| excluded_volume | 84923 ų |
| envelope_volume | 101630 ų |
| shell_volume | 31214 ų |
| envelope_diameter | 95.6 Å |
| shell_rg | 34.39 Å |
| envelope_rg | 28.84 Å |
| shape_rg | 28.35 Å |
| total_rg | 29.07 Å |
| total_atoms | 4782 |
| n_residues | 624 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 89.5 Å |
| rg_real | 28.81 Å |
| rg_real_error | 0.76 Å |
| i0_real | 7.2520e+07 |
| i0_real_error | 1.2260e+06 |
| rg_reciprocal | 28.84 Å |
| i0_reciprocal | 72520000.0000 |
| total_estimate | 0.9132 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 29.3 Å |
| skewness | 0.194 |
| kurtosis | -0.680 |
| angular_range | — – 0.2750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 15950000.0000 |
| n_real_points | 56 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.966; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.990 |
